- 4 -

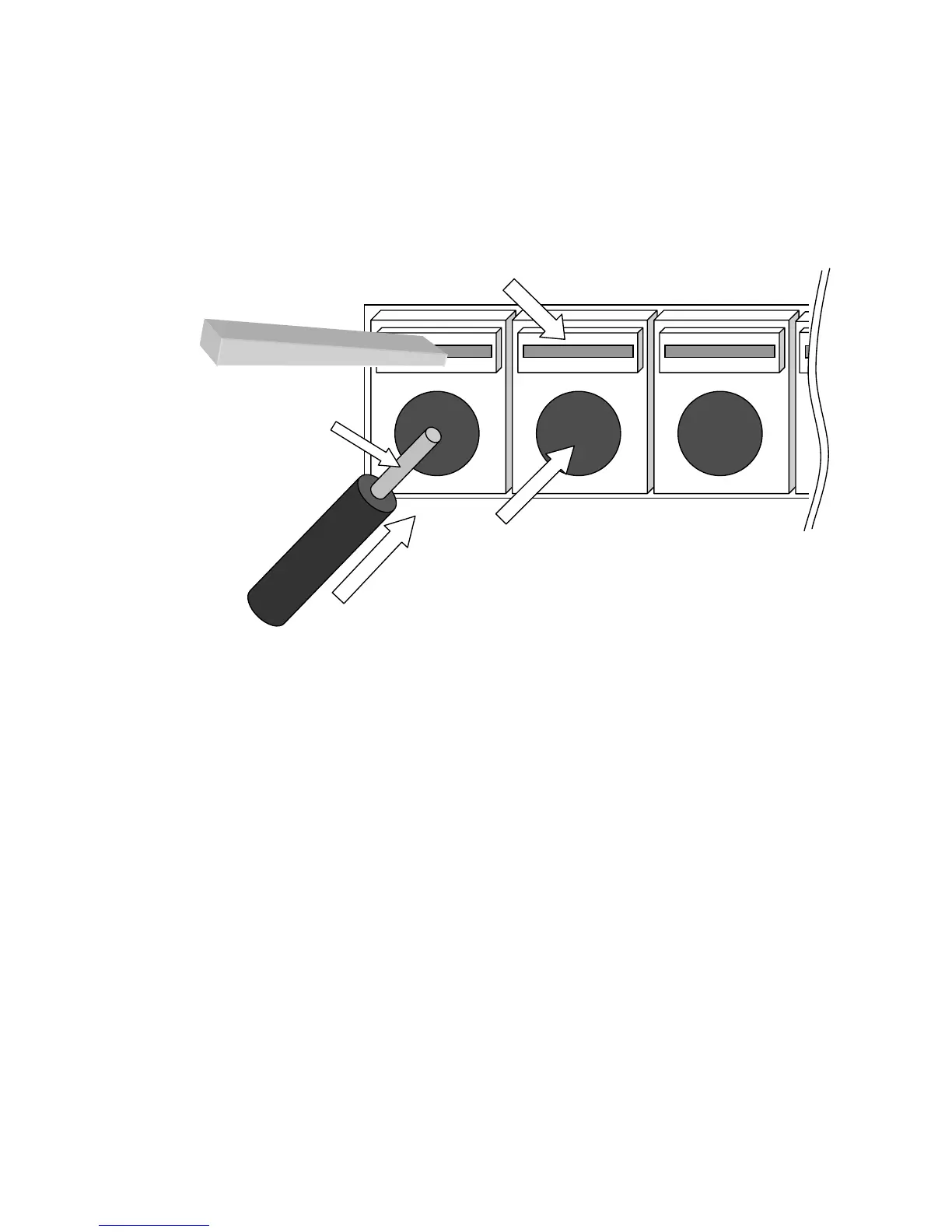

2.3 Terminal board

Use terminal board on the rear panel of the main unit for the connection between BK,

external receiver or decoder. Insert a connection wire in a terminal in the following ways.

Note: Use connection wire with single core 0.4~1.0mmØ or standard twist core

0.3mm

~0.7mm

2.4 Grounding

A GND terminal is on the rear panel of the main unit.

Be sure to ground the main unit using attached earth wire (3m KIV wire 50/0.45 with copper

tube terminal).

Insertaconnectionwiretoahole

whilepressingthepushknob

Pushknob

Wirehole

Connection

wire

Pressapushknobby

ascrewdriver

Terminalboard

Peeloffvinylsheath

ofthewireabout10mm
