Installaon
Installaon Manual
 The parent/child DIP switch, No.1 on the lower bank of DIP switches, should be in the OFF
position.
 This is the connection diagram between 510U (AT-D3U-IN/OS) and multi-unit controller
for 2 to 20 water heaters. Above is an example showing seven water heaters.
 The multi-unit controller automatically allocates the unit number (1-20) to each water
heater that is part of the Multi-Unit System.
 In a Multi-Unit System, connect the “[1]” connector and the “[2]” connector with the
communication cable (refer to p. 9) or 18 gauge wire cables. The total cable length can
be up to 250 ft. (76.2 m) long.
For detailed instructions on the multi-unit controller, refer to the
instructions that are packaged with the multi-unit controller.
9008300005
(TM-MC02)
510U
Cold IN
Hot Out

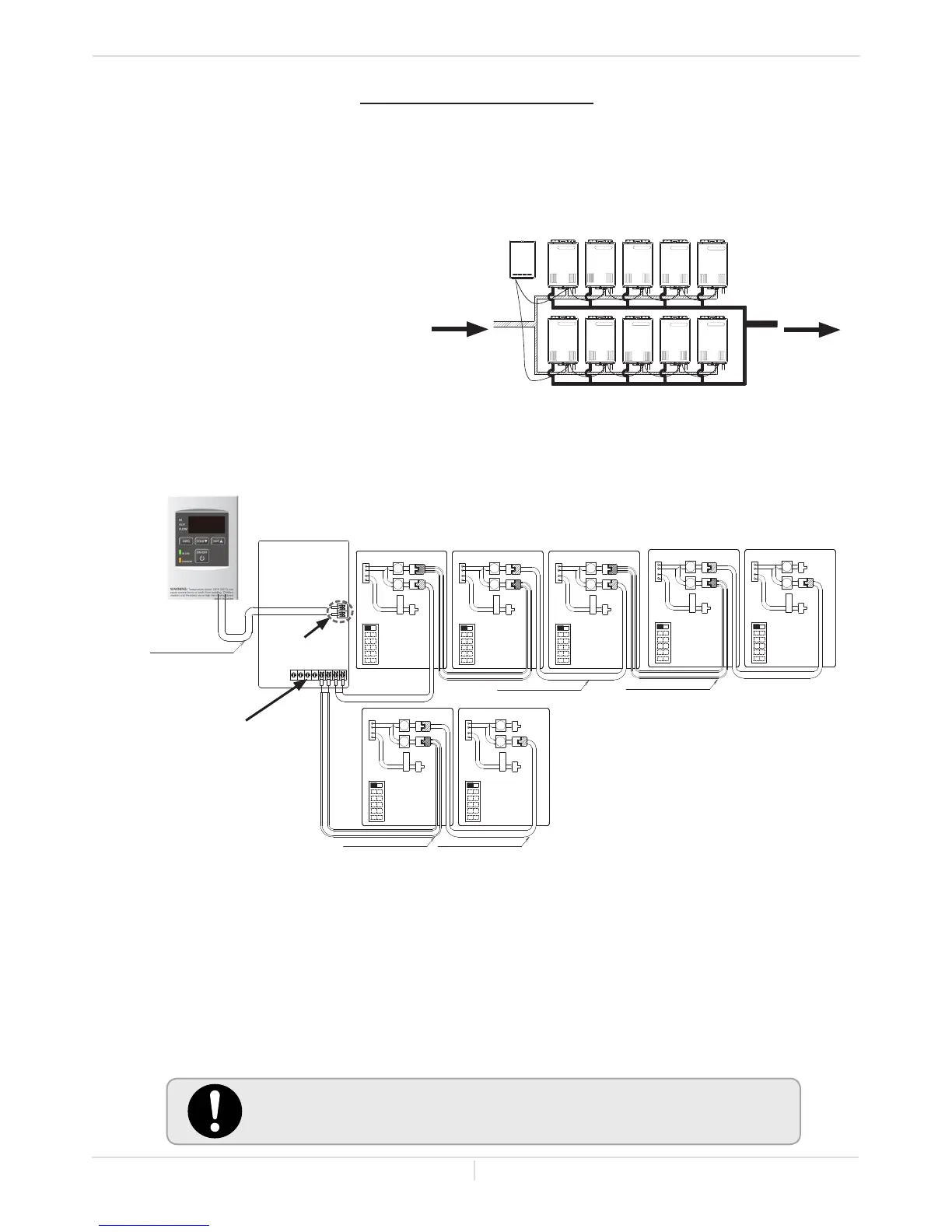

MULTI-UNIT SYSTEM
Multiple 510U (AT-D3U-IN/OS) models can be combined for a Multi-Unit System, along with the
multi-unit controller (Part 9008300005 (TM-MC02)). Each multi-unit controller can control from 2 to
20 units for commercial or residential applications. For a 20-unit system, the computer can modulate
from 15,000 BTU/h to 3.98 million BTU/h.
An individual cut-off switch is recommended
for each unit in a Multi-Unit System for the
purpose of maintenance.
Multi-Unit System connection diagram
Multi-unit controller and temperature remote controller wiring:
Remote controller
9008300005
(TM-MC02)
Terminals for
water heaters
Remote
controller
terminals
OFF
ON
1 1
1
2 2
2
PARENT
PARENT
PARENT
1
2
3
4
5
6
Connectors Connectors Connectors
OFF
ON
OFF
ON
Lower bank of
DIP switches
Lower bank of
DIP switches
Lower bank of
DIP switches
Lower bank of
DIP switches
Lower bank of
DIP switches
Lower bank of
DIP switches
Lower bank of
DIP switches
1
2
3
4
5
6
1
2
3
4
5
6
Communicaon cable
Communicaon cable
Communicaon cable
Communicaon cable
Remote controller cable
1
1
2 2
PARENT
PARENT
Connectors Connectors
OFF
ON
OFF
ON
1
2
3
4
5
6
1
2
3
4
5
6
1
1
2 2
PARENT
PARENT
Connectors Connectors
OFF
ON
OFF
ON
1
2
3
4
5
6
1
2
3
4
5
6
Example : 510U (AT-D3U-IN/OS) x 7 units
