Talon AB3202 - General Identification; Specifications

5
AU

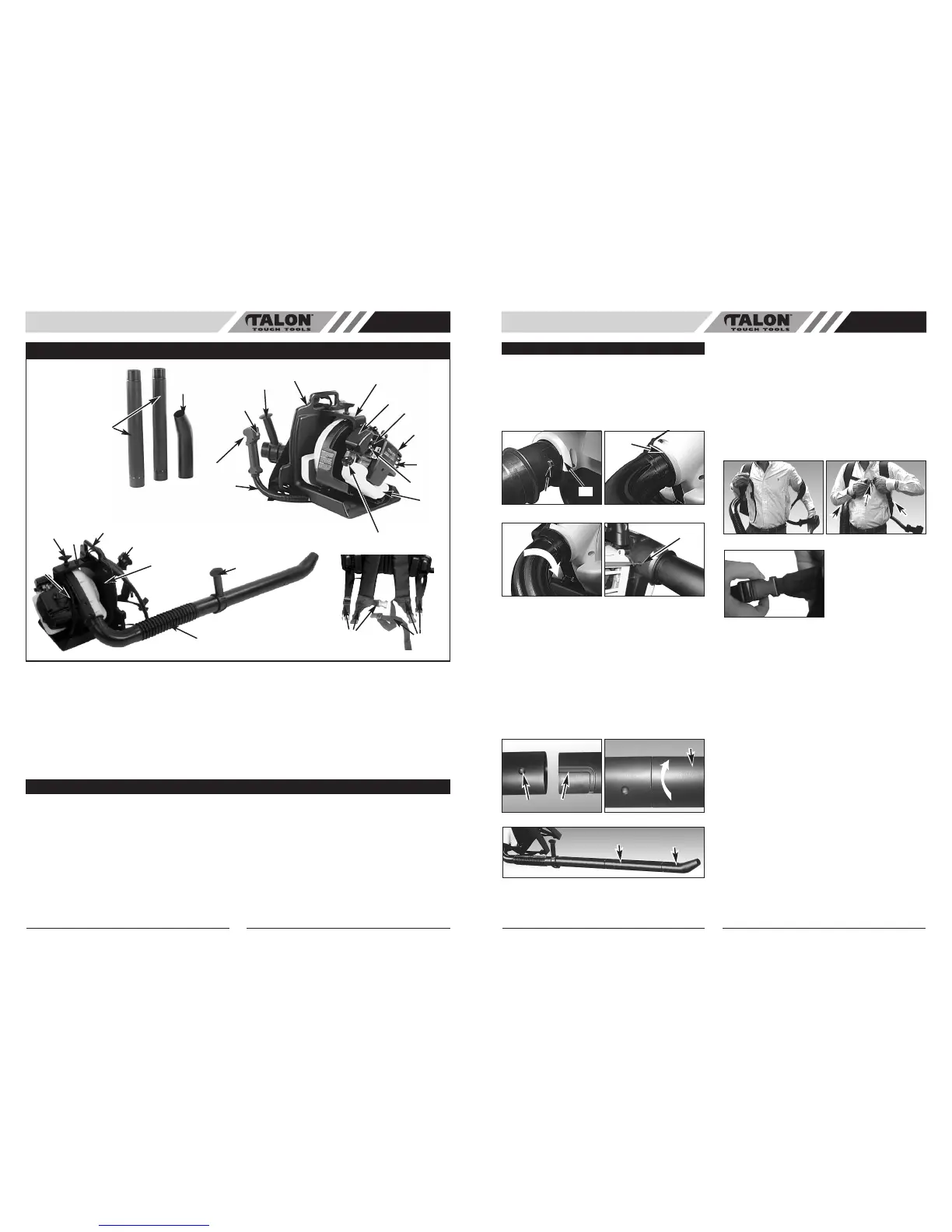

• ATTACH FLEX TUBE
1. Align the flex tube tab (A) with notch (B) in the hous-
ing (Fig. 1A).
2. Push tube into housing up to ridge (C) (Fig. 1B).
3. Twist tube counterclockwise to lock into place (Fig.
1C). And tighten the screw D. (Fig. 1D).
• ATTACH EXTENSION TUBES (2) AND
CONCENTRATOR NOZZLE
1. Align grooves (A) on extension tube with notches (B)
in flex tube (Fig. 2A).
2. Push in up to ridge on extension tube (C) (Fig. 2B).
3. Twist tube clockwise until it clicks into position and
locks (Fig. 2B)
4. 2nd extension tube (D): repeat steps 1 through 3
above (Fig. 2C).
5. Concentrator nozzle (E): repeat steps 1 through 3
above (Fig. 2C).
• ADJUST BACK PACK AND HARNESS
1. Place blower on your back by slipping arms through
the shoulder straps as if you were putting on a jacket
(Fig. 3A).
2. Adjust shoulder and chest straps so that the back
pack feels comfortable on your back (Fig. 3B).
3. Once adjustments have been made, remove the
blower from your back and place on level ground.
NOTE: There are three buckles for this harness. ( Fig.
3B) (A.B.C.).Buckle C is the main buckle for securing the
harness.
ASSEMBLY INSTRUCTIONS
Fig. 1A Fig. 1B
C
Fig. 1C Fig. 1D
A
B
D
Fig. 2A
B
A
Fig. 2B
Fig. 2C
D
E
C
Fig. 3A Fig. 3B
A
C
B
Fig. 3C
4
AU
GENERAL IDENTIFICATION
1. THROTTLE TRIGGER
2. THROTTLE LOCK
3. IGNITION SWITCH
4. THROTTLE CONTROL ARM
5. STARTER HANDLE
6. MUFFLER COVER
7. SPARK ARRESTER SCREEN
8. CARBURETOR / PRIMER BULB
9. AIR CLEANER COVER
10. 3-POSITION CHOKE LEVER
11. FUEL TANK
12. FUEL CAP
13. SPARK PLUG LEAD / SPARK
PLUG
14. TOP ASSIST HANDLE
15. BRIDGE
16. VENTED BACK PAD
17. PISTOL GRIP ASSIST HANDLE
18. FLEX TUBE
19. EXTENSION TUBES (2)
20. CONCENTRATOR NOZZLE
21. HARNESS
22. STARTING INSTRUCTIONS
13
14
15
16
16
17
17
18
19
20
22
1
3
4
5
6
7
8
9
10
11
12
SPECIFICATIONS
Engine Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Air-cooled, 2 Cycle
Engine displacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 cc
Engine Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7,000
± 500 rpm
Idle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3,000-3,500 rpm
Air Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288 km/h
Air Volume. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 cu.m/min.
Fuel Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 710 ml
Dry Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.9 kg
Sound Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101 dB(A)
Sound Pressure Level at ear . . . . . . . . . . . . . . . . . . . . . . . 91 dB(A)
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11.2 m/s
2
21
21
2
