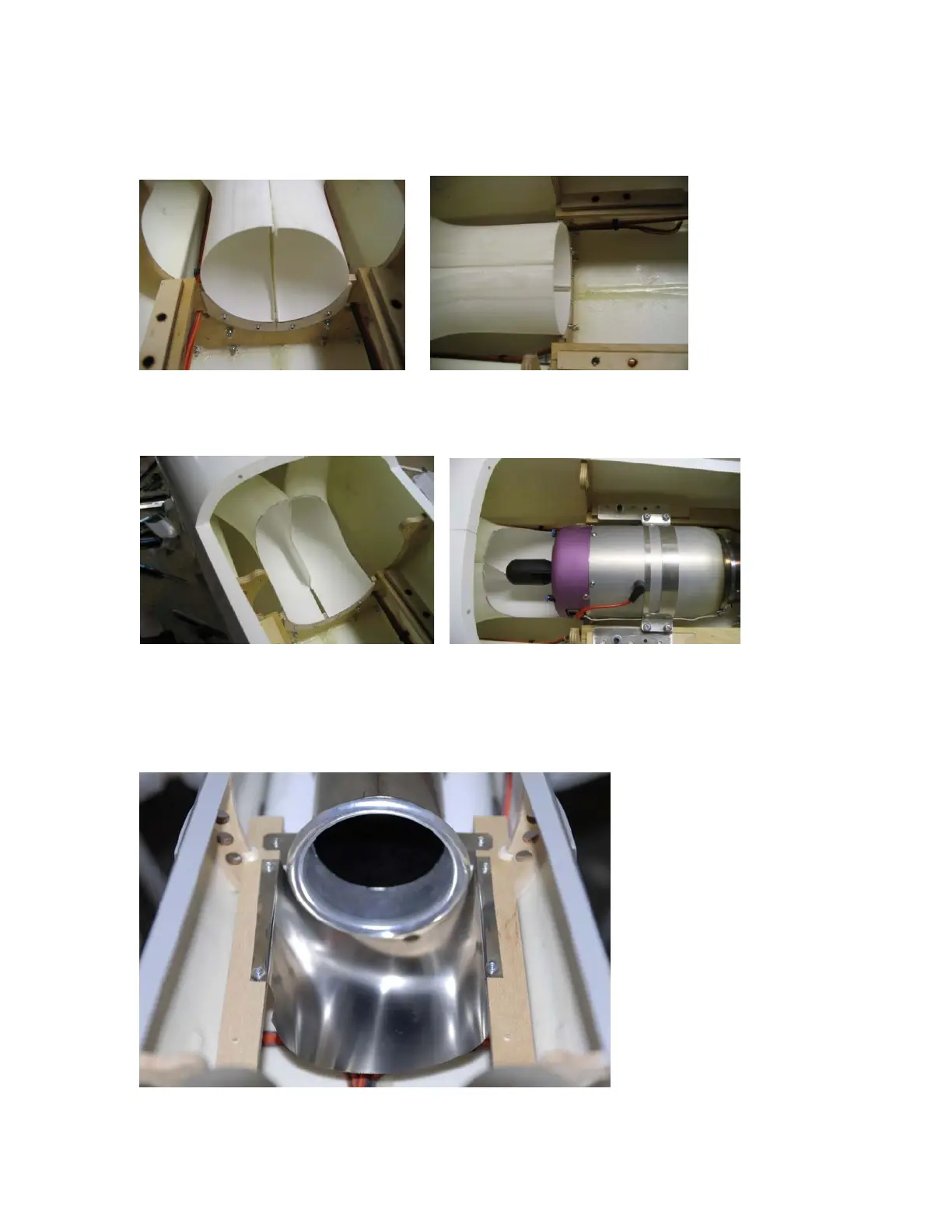

34. Trial fit and secure the Inlet dusting into the bulkhead as shown using #2 x
3/8” Socket Head Sheet Metal screws.
35. Trim the Inlet ductings to suite your installation.
36. Remove the bell mount from the pipe first. Slide the pipe from rear forward.
Use servo screw to secure the pipe to engine rail. Use metal heat shield mounted
to the engine rail to protect all your air hose and servo wires.
