Tamjets F-16 Instruction Manual

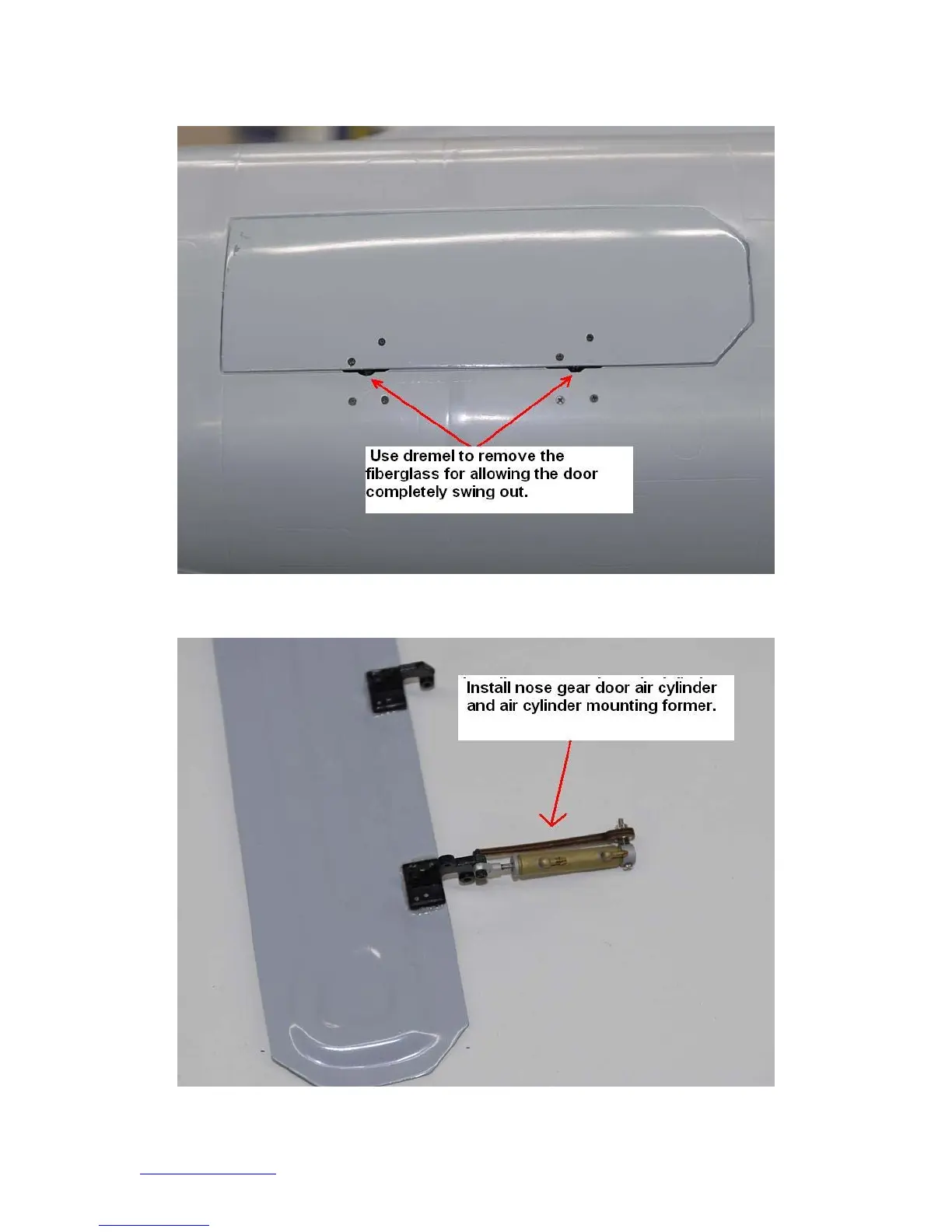

Remove some of the fiberglass to allow the nose gear door to swing out completely.
Secure the hinges with 4 micro screws for each hinge then remove the door to install the
air cylinder.
Install air cylinder to hinge and mounting former.
