Tamjets F-16 Instruction Manual
Use medium CA to glue the wood arm. Make sure you sand the wood arm to correct form
shape before you glue to the door.

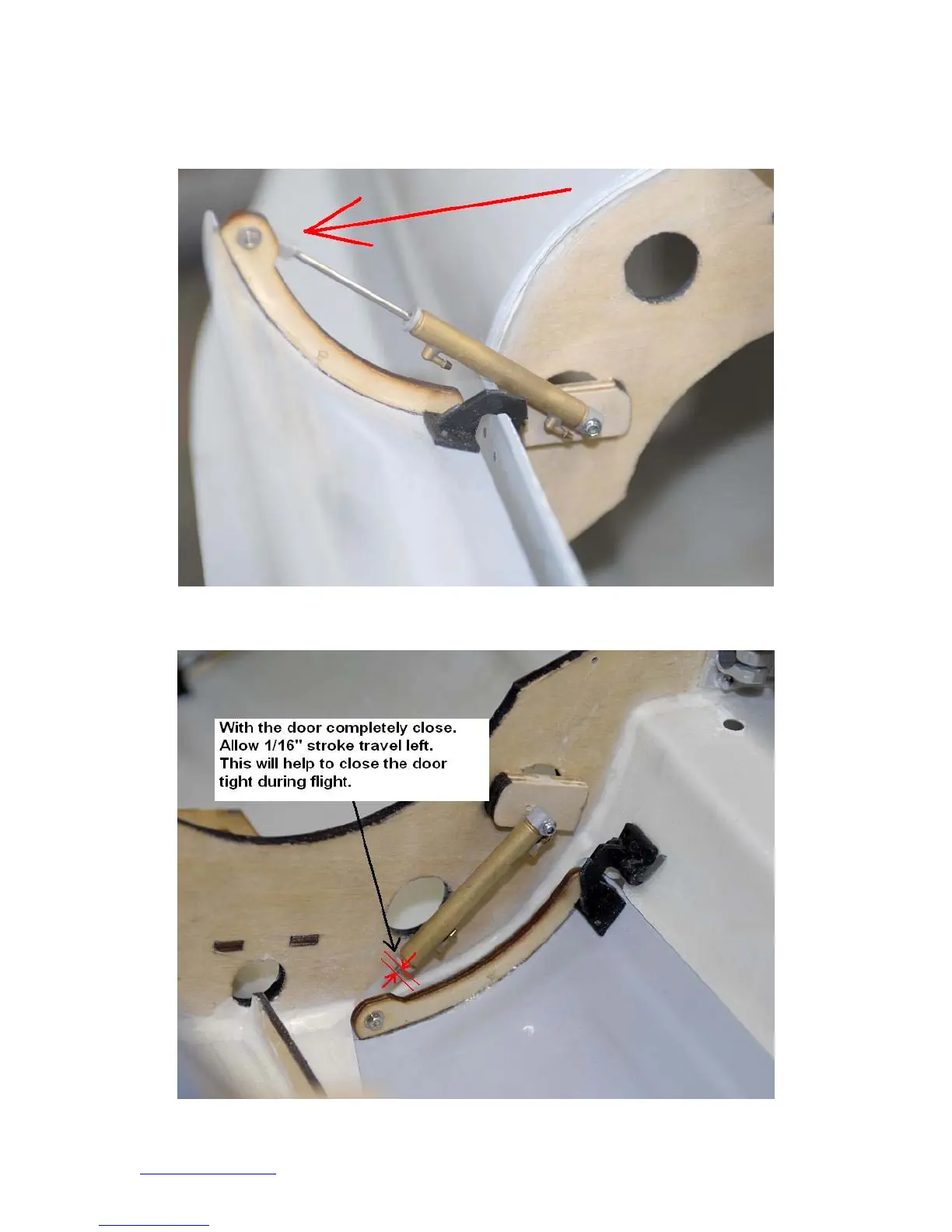

Install the main door air cylinder. Use ¼” scraps plywood to make the mounting base.
Play with the air cylinder location. You want the door able to its open maximum and
when it closes, still have 1/16” stroke travel left.
When door are closed. Allow 1/16” stroke travel left. This will help close the door tight.
