Tamjets F-16 Instruction Manual

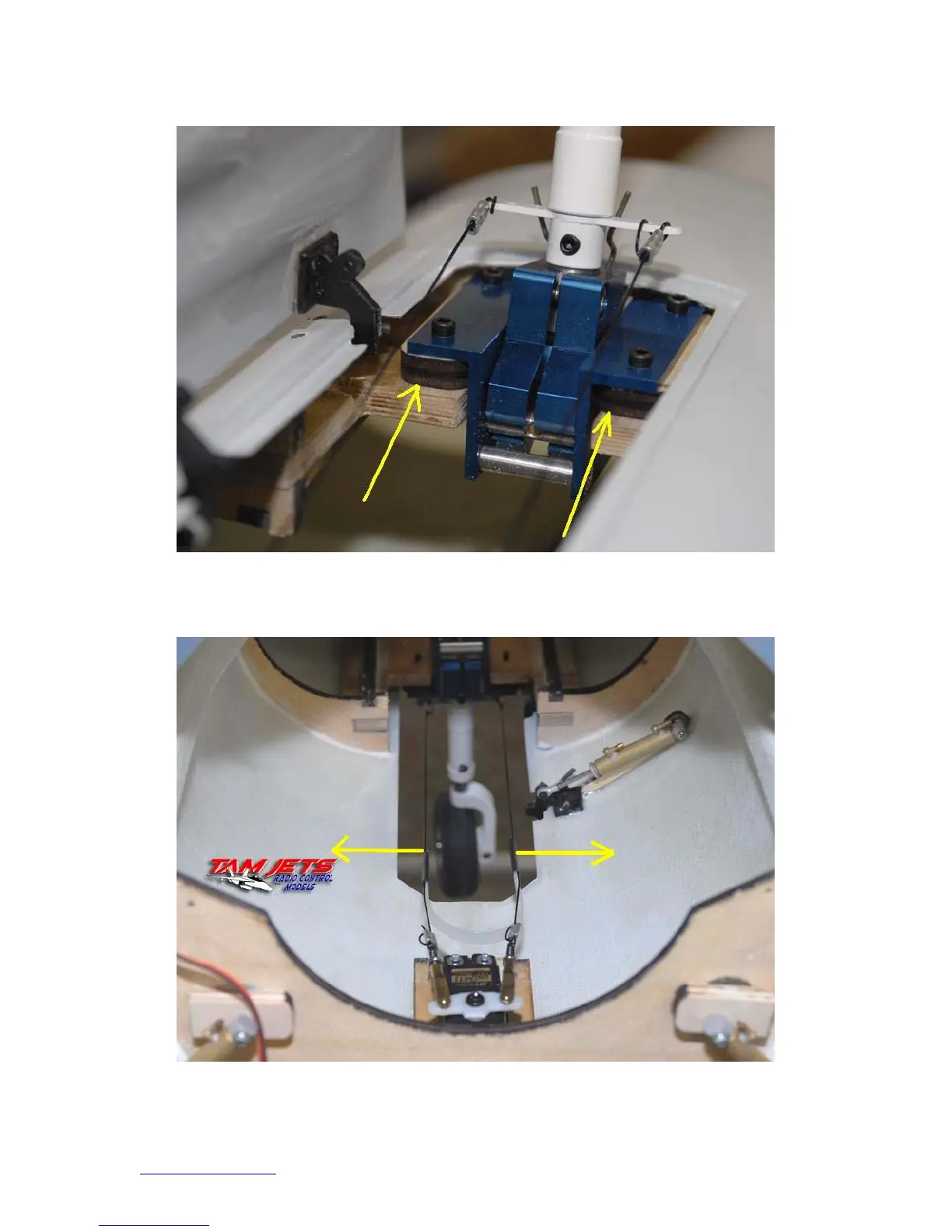

Installation of the nose retract requires you to shim with either 3/16” to ¼” spacer. You
need the spacer to clear the inlet ducting. (Note: Retract will be in the way when
installing the inlet ducting. Remove nose retract and install the inlet ducting. Then put the
retract back.)
Install servo and pull-pull cable. The plastic tie wrap will spread the cables when the nose
gear is retracted.
www.tamjets.com 408-224-7600 38of64
