Service Manual
Moby XL, SE-803
Deck Removal
The Moby deck is fastened to the frame with 10 bolts
requiring a 4mm hex wrench and a 10mm open-end
wrench. Some of these bolts are secured on the bottom
side with locking nuts, and some of the bolts are simply
threaded into the frame itself. For those bolts secured with
nuts on the underside, remove the nuts prior to attempting
to remove the bolts from the top.
Additionally, six of the mounting bolts are covered by grip
tape (four rear / two front), and access to them will require
the removal of the grip tape.
Inspect the board for any damage and replace as
necessary. When re-installing a deck, always ensure that
all fasteners are used, and that an adequate amount of grip
tape is re-applied to ensure sound footing when in
operation.

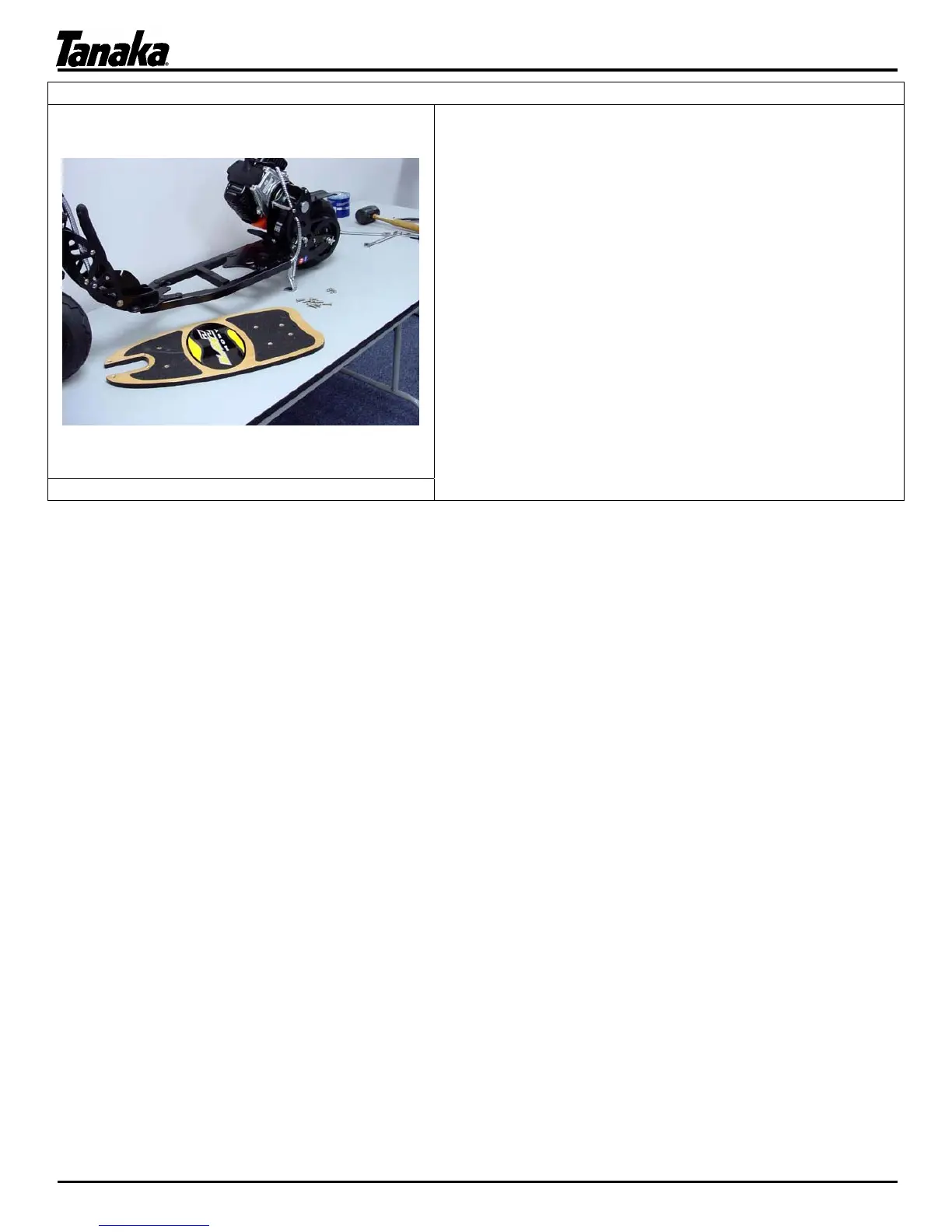

Figure 20
