6
English

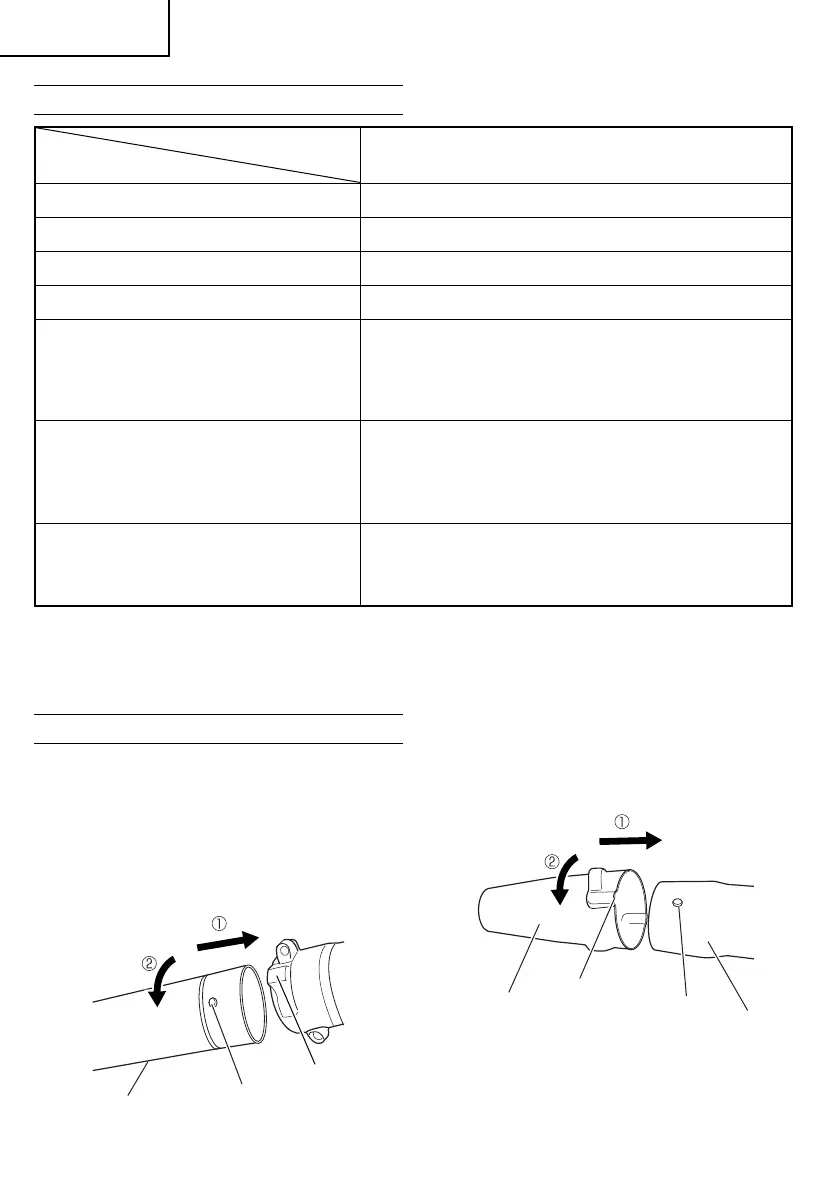

SPECIFICATIONS
MODEL TRB24EAP
Engine Size (cu. in.) 1.46 (23.9 ml)
Spark Plug NGK BMR7A
Dry Weight (Ibs) 8.6 (3.9 kg)
Fuel Tank Capacity (fl . oz) 17.6 (0.52 l)
Sound pressure level
LpA (dB (A))
by ISO22868
Uncertainty
(dB (A))
By ANSI 69*
2
By CEN 87*
1
1.8*
1
Sound power level
Lw measured (dB (A))
by ISO22868
107*
1
Sound power
level LwA (dB (A))
by 2000/14/EC
109*
1
Vibration level (m/s
2
)
by ISO22867
Uncertainty
(
m/s
2
)
12
1.0
*1: Equivalent noise level/vibration level are calculated as the time-weighted energy total for noise/vibration
levels under various working conditions with the following time distribution: 1/7 Idle, 6/7 racing.
*2: ANSI B175.2
* All data subject to change without notice.
ASSEMBLY PROCEDURES
Blow pipes to main body (Fig. 1)
Inspect the main body and accessories.
Connect straight pipe (1) securely. Align projection
(2) in straight pipe with groove (3) on blower housing
and slide the pipe into the blower housing.
Rotate the pipe clockwise to lock it into place.
3
1
2
Fig. 1
Conic pipe to straight pipe (Fig. 2)
○ Align groove (5) on the conic pipe (6) and
projection (4) on straight pipe (1) and rotate the
conic pipe in place.
5
1
4
6
Fig. 2
000BookTRB24EAPUS.indb6000BookTRB24EAPUS.indb6 2018/09/1912:33:242018/09/1912:33:24
