TX7221 Multichannel I/O Module
Installation & Operation Manual
4050100535-Rev1.1-1018
TANDA UK
Specifications are subject to change without prior notice

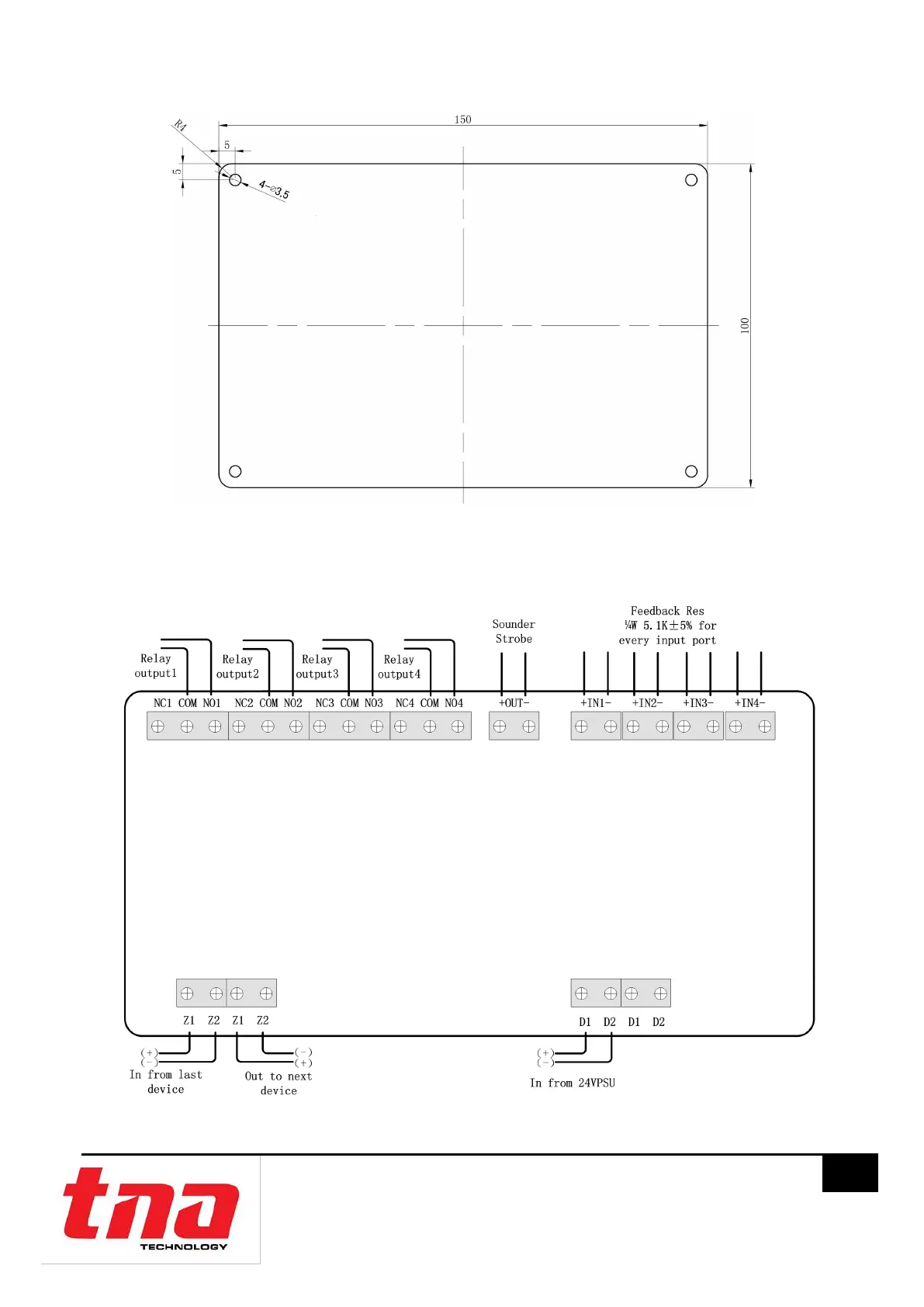

Figure 1 module outline diagram
2. Bus line use RVS-2×1.0mm² or 1.5mm²
Power line use RVVP-2×1.5 mm² or 2.0mm².
Figure 2 Wiring Details
