1.0
1.1

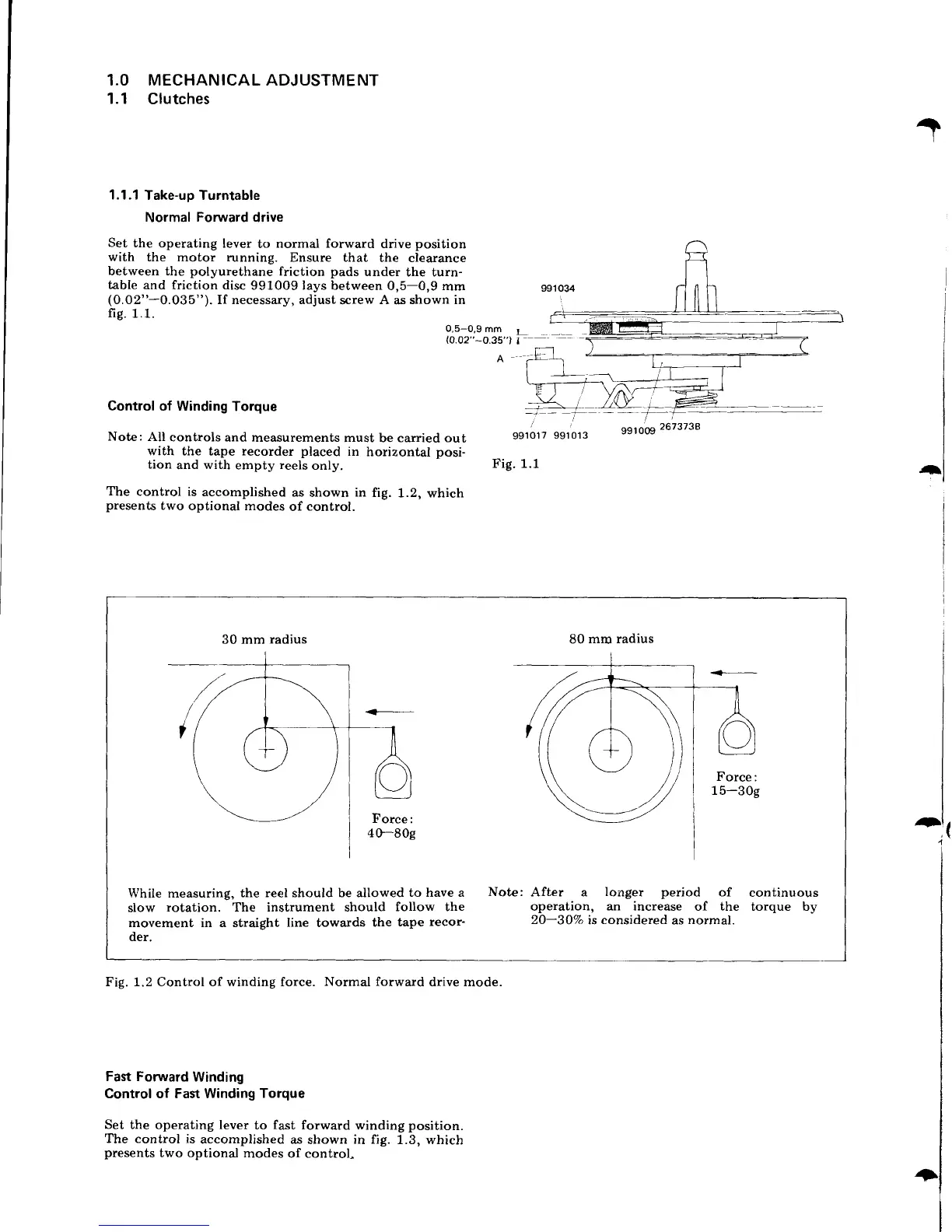

MECHANICAL ADJUSTMENT
Clutches
1.1.1
Take-up Turntable
Normal
Forward
drive
Set
the operating
lever
to
normal forward
drive
position
with
the motor running.
Ensure that
the clearance
between the
polyurethane
friction
pads
under
the turn-
table
and friction disc
991009 lays between
0,5-0,9
mm
(0.02"-0.035").
If necessary, adjust
screw
A
as
shown in
fig.
1.1.
1
991 034
0,5-0.9
mm
L
{0.02"-0.35")
I
-
Control
of Winding
Torque
Note:
All
controls
and measurements
must be carried out
with the tape recorder
placed
in
horizontal
posi-
tion
and
with
empty
reels
only.
The
control is
accomplished
as
shown
in
fig.
1.2, which
presents
two
optional modes
of
control.
Fig. 1.2 Control of winding force.
Normal forward
drive
mode.
Fast Forward
Winding
Control of Fast Winding
Torque
Set
the operating lever
to
fast
forward
winding
position.
The control is
accomplished as
shown
in fig.
1.3, which
presents
two optional
modes of control,
-
il
991017
991013
Fig.1.1
.rl
30 mm
radius
Force:
4O-80g
80
mm radius
While measuring,
the reel should be allowed
to have a
slow
rotation. The instrument should
follow the
movement in a straight
line
towards
the
tape
recor-
der.
Notc:
After a
longer
period
of
continuous
operation,
an increase
of
the
torque by
20-30V"
is
considered
as
normal.
Force:
15-30g
.arl
4
+i
I
