30
mm radius

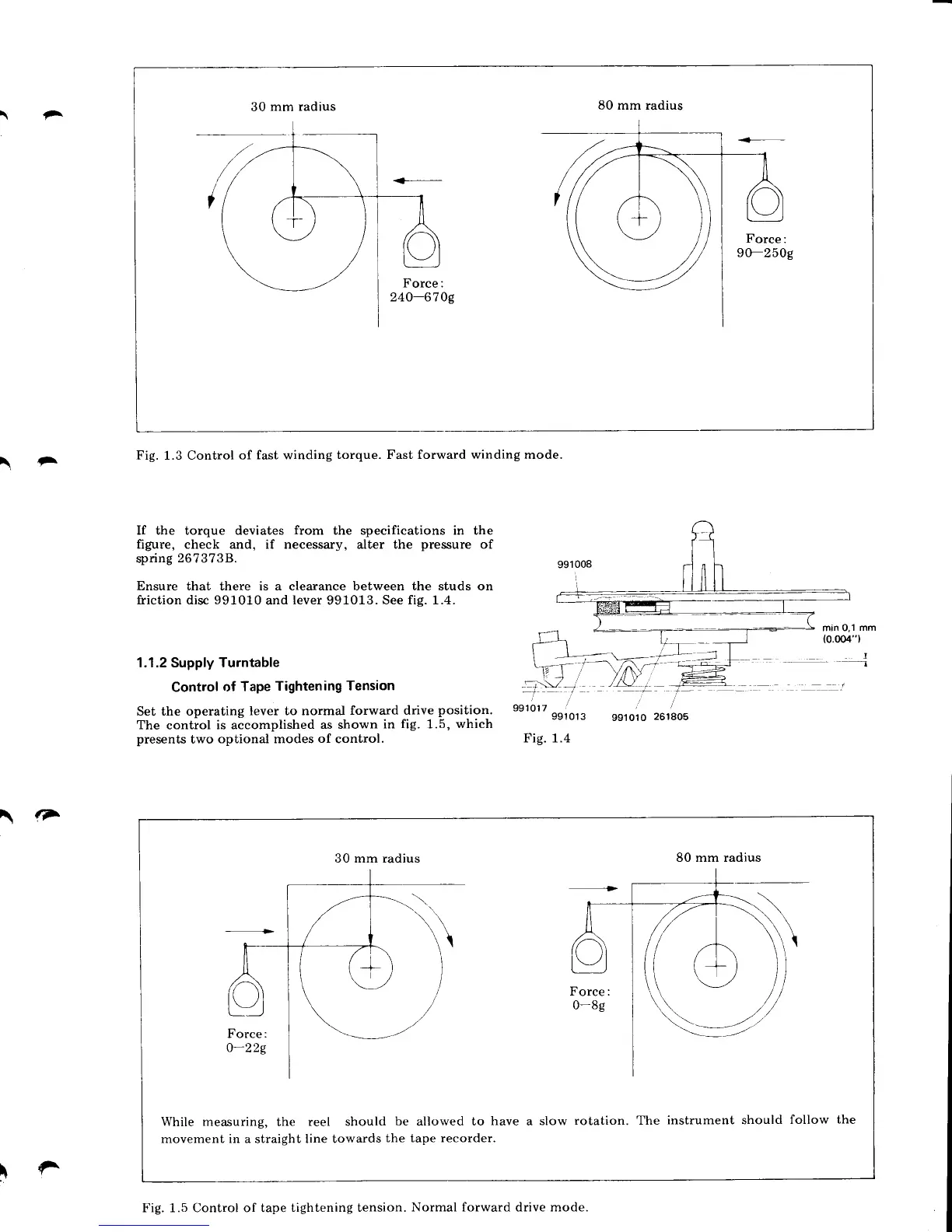

Fig. 1.3 Control of
fast winding
torque. Fast forward winding mode
80 mm radius
\
^
\
't\
If the torque deviates
figure, check and, if
spring
2673738.
from
the specifications in the
necessary, alter the
pressure
of
Ensure that there is a clearance between the studs on
friction disc 991010
and
lever
991013.
See fig. 1.4.
1.1.2 Supply Turntable
Control
of
Tape
Tightening
Tension
Set the operating
lever to normal
forward drive
position.
The
control
is accomplished
as shown
in
fig.
1.5,
which
presents
two
optional modes
of
control.
min 0,1
mm
(0.091")
991017
991013
991OlO
261805
Fig. 1.4
\F
Force:
90-2509
30 mm radius
Force:
O-99o
80 mm radius
While measuring,
the
reel should
be
allowed
to
have
a
slow
rotation. The
instrument should
follow
the
movement in a
straight
line towards
the tape recorder.
F
Fig. 1.5 Control of tape
tightening tension.
Normal forward drive mode.
