Installation Instructions: Kit B (for Tannoy CMS 6 and CVS 6 models)
Scenario 1: Fitting TANNOY Loudspeakers into existing third-party backcans
Note: Procedure is the same for PI and BM versions, though compatibility with backcans will di er depending on model.
1. Insert Adapter Ring into back can. Bend tabs over to t snugly against inner lip of backcan.
Follow steps 4 through 7 in procedure above for Kit A, Scenario 1. Note that four Clamp Extension Mouldings are used here for the
larger loudspeakers, rather than three shown in illustrations.
Scenario 2: Fitting TANNOY BM type Loudspeakers into oversized ceiling holes
Follow steps 1 – 7 in Scenario 2 above for Kit A. Procedure is identical; the only di erence is the diameter of the Adapter Rings and
compatibility with speci c third-party backcans.

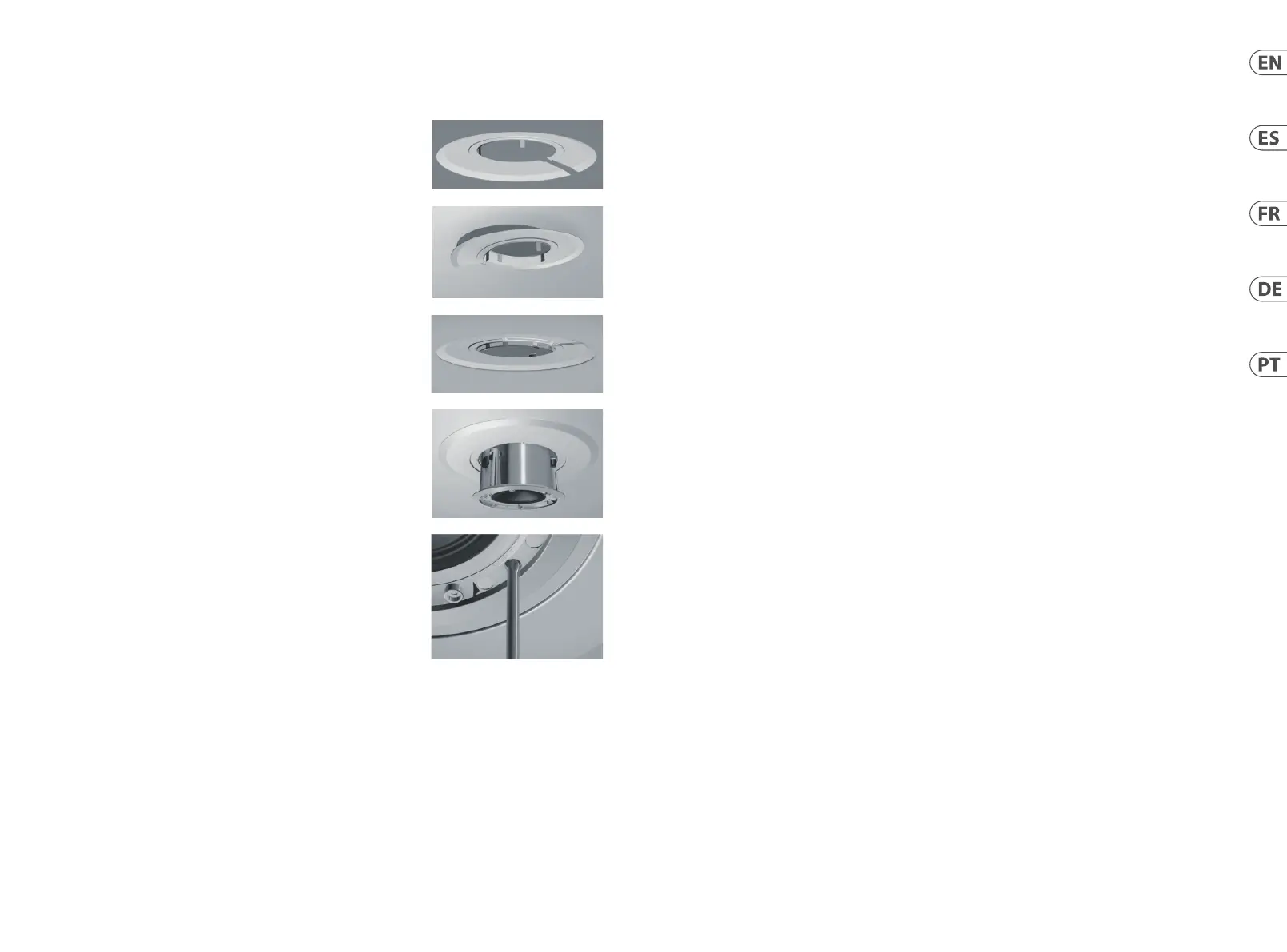

Scenario 2: Fitting TANNOY BM type Loudspeakers into oversized ceiling holes
1. Using an appropriate metal cutting tool, cut a slot across one Adapter Ring as shown.
2. Twist Adapter Ring slightly to open the gap. Insert through ceiling hole using
a corkscrew motion.
3. Place second Adapter Ring opposite the rst, inserting the tabs through the rst ring.
4. Bend tabs on both Adapter Rings across the opposing ring for
a snug t.
5. With clamps in the retracted position, insert loudspeaker through the Adapter Rings.
6. Turn clamp xing screws (loudspeaker front) counterclockwise to deploy clamp to
installed position. Continue turning until loudspeaker is mounted snugly
against Adapter Ring.
7.
Attach loudspeaker grille.
12 13Quick Start GuideCMS 3.0 & CVS SERIES
