Wiring and Setting Up

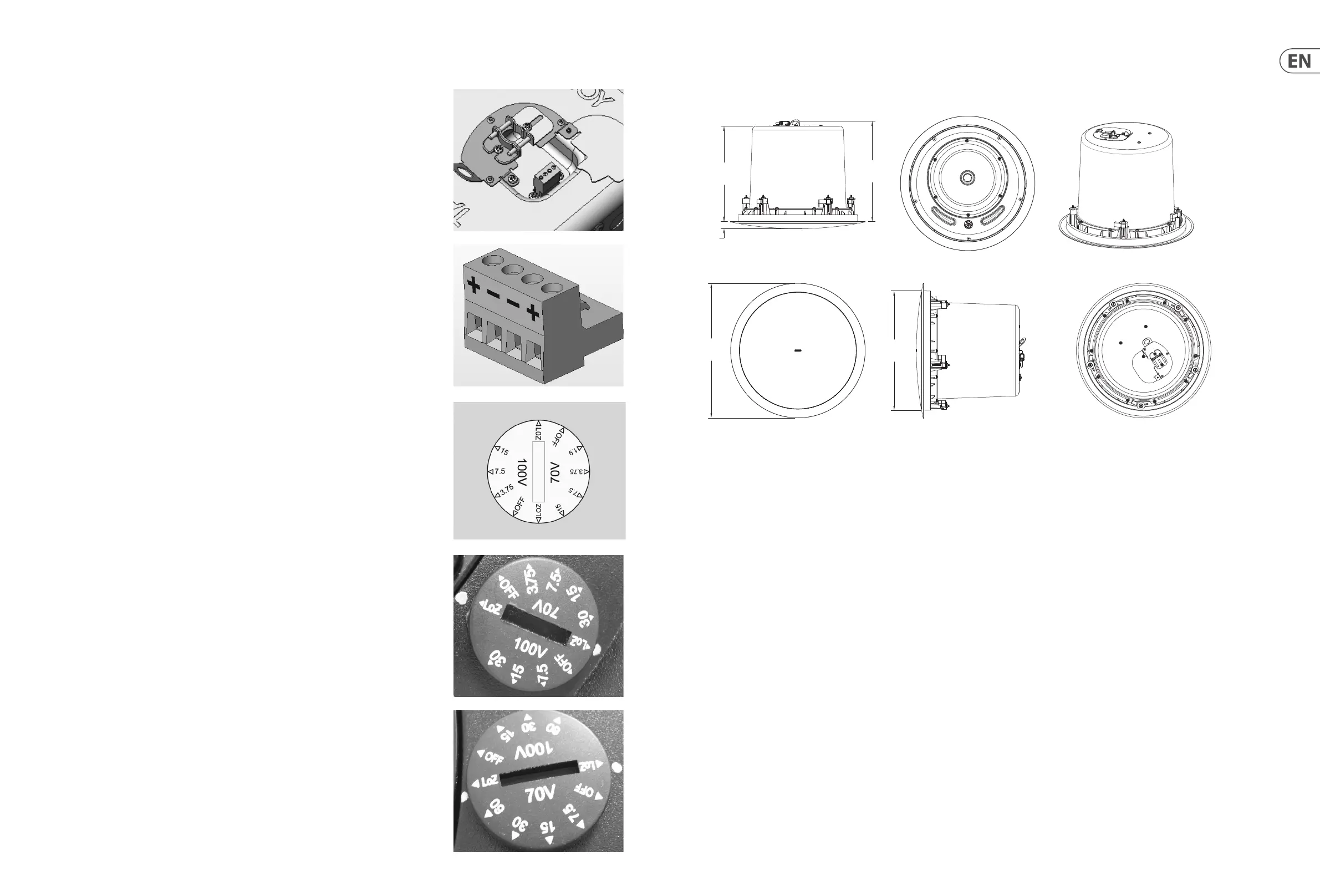

1. Open the wiring cover at the back of the speaker can to access the Euro type connector plug and socket.
2. For connection to an amplier, use pins 1 and 2:
• Pin 1 is positive
• Pin 2 is negative
For connection to additional speakers in a distributed line, pins 3 and 4 are in parallel where:
• Pin 3 is negative
• Pin 4 is positive
3. Close the wiring cover and tighten both screws on the cable clamp. Use the rotary switch located
on the front of the unit to select whether you wish to use the speaker in a low-impedance or
distributed-line application.
THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE SPEAKER TO
A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.
4. The CVS 4 is tted with a 15 W transformer. When used in distributed-line systems, the transformer can
be tapped at 15 W, 7.5 W and 3.5 W, with an additional 1.9 W tapping for 70.7 V line systems.
5. The CVS 4 is tted with a 30 W transformer. When used in distributed-line systems, the transformer can
be tapped at 30 W, 15 W and 7.5 W, with an additional 3.75 W tapping for 70.7 V line systems.
6. The CVS 6 is tted with a 60 W transformer. When used in distributed-line systems, the transformer can
be tapped at 60 W, 30 W, and 15 W, with an additional 7.5 W tapping for 70.7 V line systems.
7. The CVS 8 is tted with a 60 W transformer. When used in distributed-line systems, the transformer can
be tapped at 60 W, 30 W, and 15 W, with an additional 7.5 W tapping for 70.7 V line systems.
CVS 8 Dimensions
CVS 8 Hole Cutout Size: 320 mm
355.6
[14.00"]
251.0
[9.88"]
19.6
[0.77"]
264.0
[10.39"]
315.2
[12.41"]
