10 CVS Series Quick Start Guide 11

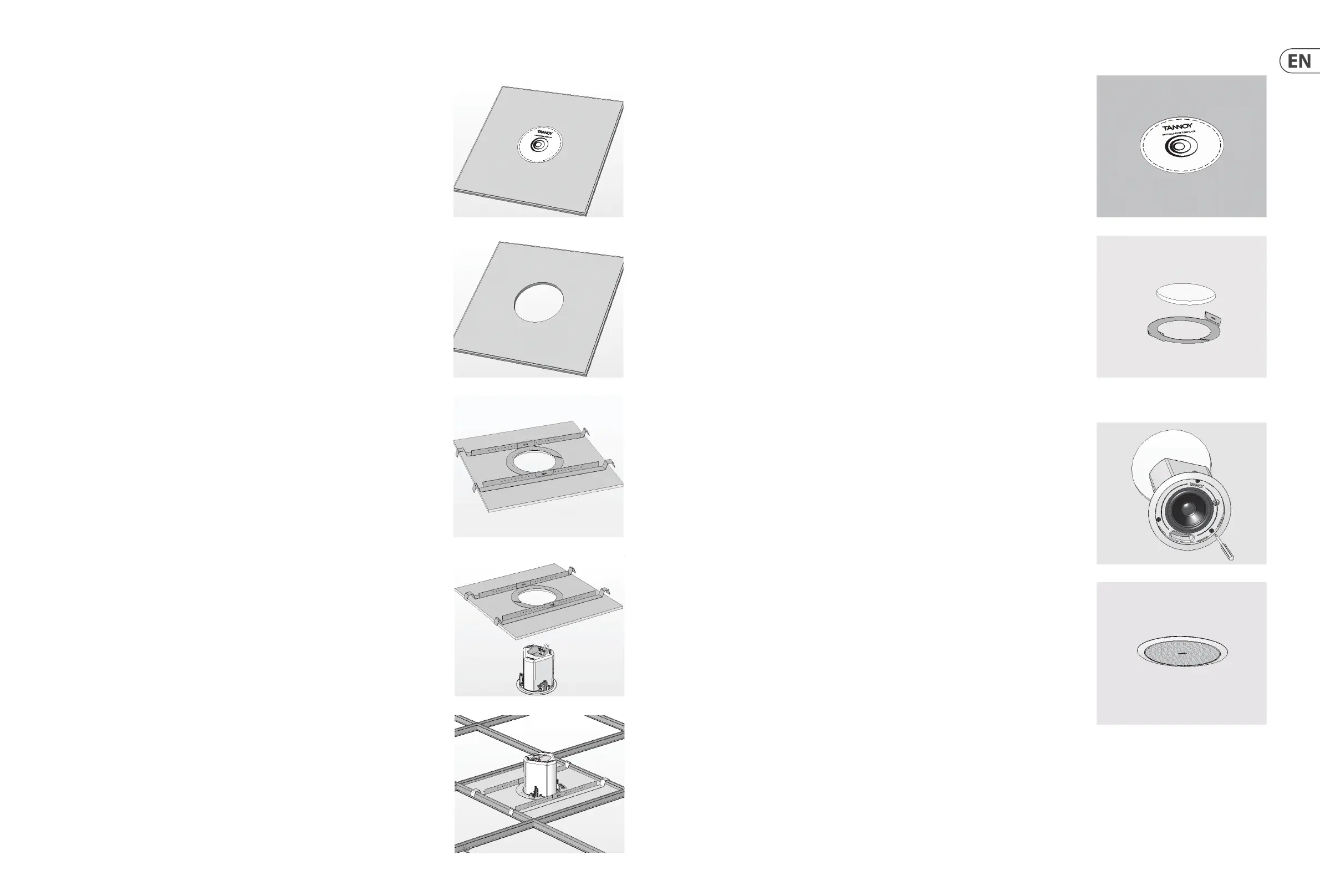

Installation Guide for Suspended Ceilings
1. Remove the ceiling tile from its frame and place it on a at surface. Mark the cut-out area on the ceiling
tile by tracing around the template provided.
2. Cut out the hole in the ceiling tile using a circular saw or pad saw.
3. Place the C-ring and tile-bridge on top of the ceiling panel, aligning the C-ring over the hole, and screw the
C-ring to the tile bridge using the xings provided.
4. Slide the speaker assembly through the hole and turn the screws on the front of the speaker to extend the
mounting wings. Tighten the screws until a rm grip is achieved.
If using a power driver, TANNOY recommends a torque setting of 1.5 Nm.
DO NOT OVERTIGHTEN!
5. Slide the tile panel back into the suspended ceiling. The tile bridge ends will catch over the railings,
supporting the weight of the speaker.
6. Connect a Secondary Support Line to safety tab. Some construction codes require use of this secondary
support point, which should connect to a separate secure support point using a suitable support line.
Consult construction codes in your region.
Installation Guide for SheetRock (Plasterboard) Ceilings
1. Mark the cut-out area on the ceiling by tracing around the template provided.
2. Cut out the hole in the ceiling using a circular saw or pad saw, then slide the C-ring into the ceiling,
aligning it over the cut-out hole.
3. Go to page 15 for wiring and set-up instructions then return to point 4 below.
4. Slide the speaker assembly through the hole and turn the screws to extend the mounting wings.
Tighten the screws until a rm grip is achieved.
If using a power driver, TANNOY recommends a torque setting of 1.5 Nm.
DO NOT OVERTIGHTEN!
5. Connect a Secondary Support Line to safety tab. Some construction codes require use of this secondary
support point, which should connect to a separate secure support point using a suitable support line.
Consult construction codes in your region.
6. Insert grille by pushing it onto the speaker.
