TD 10 RE-WORK
Tools Required: 3mm Hex Key, and 4mm Hex Key
Procedure:
 Un-pack the product.
 Remove front velvet panel, (Tee-bar through socket aperture Fig 1,2).
 Remove driver and disconnect wires.
 Remove trim ring and unscrew T/P panel – (should be able to locate loose screws
 Re-attach crossover to centre brace – screwing screws into tech-serts in brace.
 Replace wadding x 1, connect driver and secure.
 Fit front velvet panel with screw x 6.

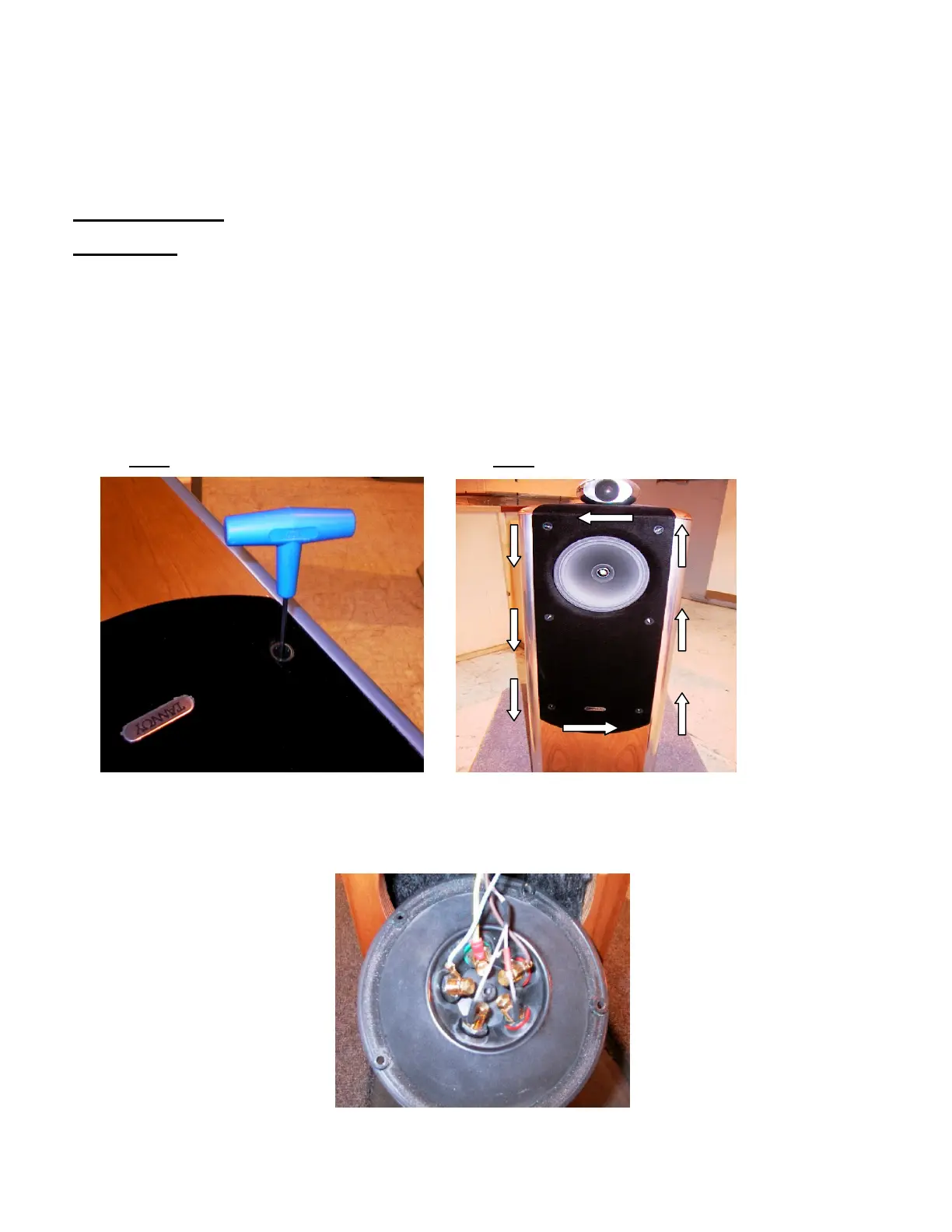

Fig 1 Fig 2
Remove front velvet panel screws, half turn each as per Fig 2 until loose.
Page 6
