TUNet PP-1316 Install Guide page 5
Doc No. KT-109967
2.2.1 Installing PP-1316 Components into the Itron SENTINEL® Meter

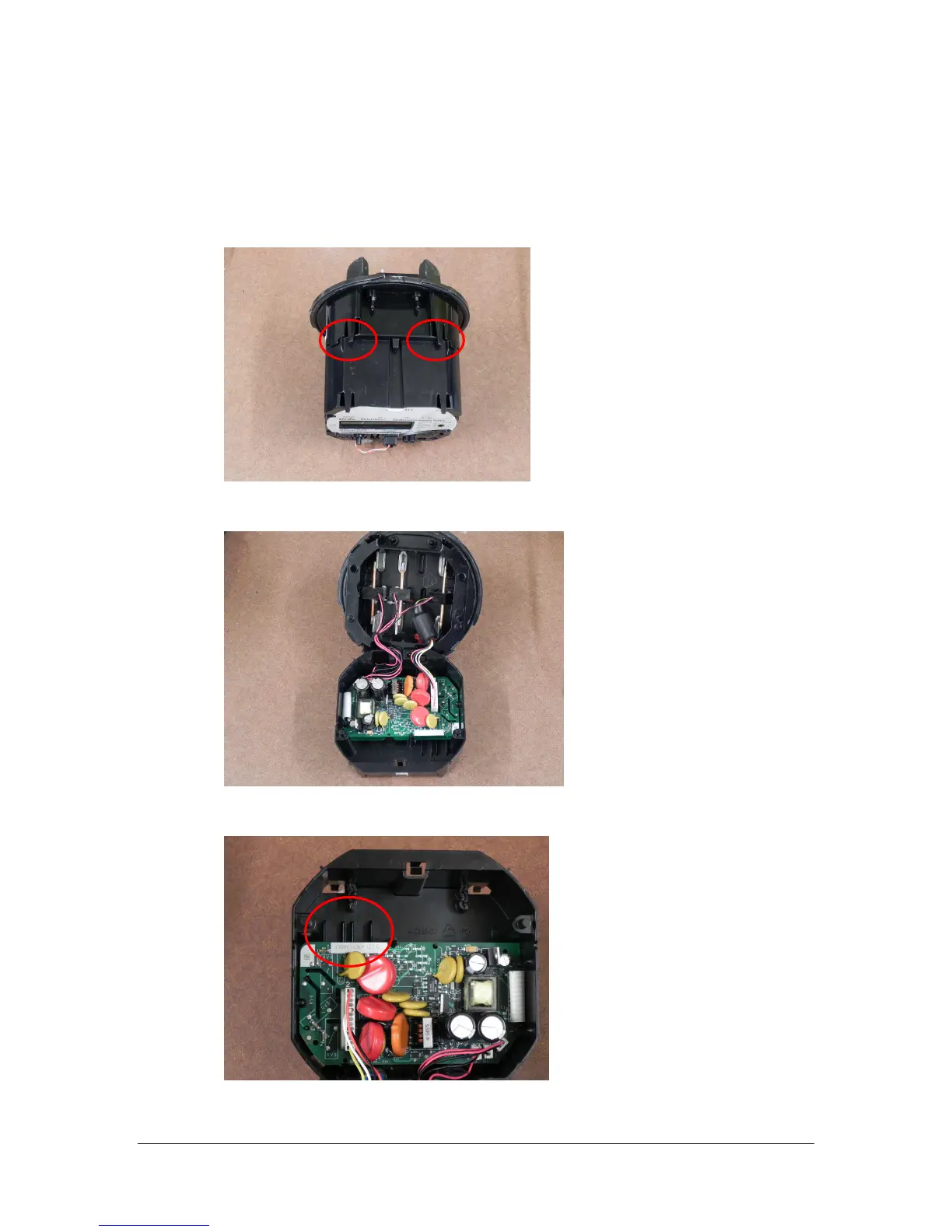

1. Remove the outer plastic cover from the Itron SENTINEL®.
2. Unclip the Itron SENTINEL® display housing from its base by gently lifting the snap features in
two locations.
3. Slightly tilt the display housing away from the base to disengage the two pieces.
4. Locate the set of four parallel ridges inside the display housing.
