CAUTION: All connections to power supply, input and output connectors must be
carried out only with amplifier off.
Installation
Output cables wire gauge*___________________________________________ 9 AWG
Caution: Using wire gauges less than recommended may result in power loss and wires
overheating .
Protection fuse or circuit breaker_______________________________________ 150A
*Wire gauge calculated considering a 4m maximum length. For longer distance
increase the cable gauges.
Check polarity and never reverse power supply cables due to the risk of amplifier
damage.
It is compulsory to install a protection fuses or circuit breakers as close as possible from
batteries.
Remote cable ____________________________________________________ 18 AWG
Positive / negative power supply cable *________________Min. 4 AWG / Max.1/0 AWG
Note: Required battery bank capacity:
At least 150Ah
Recommended wire gauge & fuse
Note: In case of compression driver you must
install a passive filter in the positive terminal
of the same ones (Consult transducer’s
manufacturer manual).
11
SPEAKER
IN
OUT
MONITOR
0.2
GAIN
4
BASS BOOST
BOOST
+100
dB
FREQ.
55
35
Hz
Hz Hz
LOW PASS
9010
CROSSOVER
HIGH PASS
10K90
V

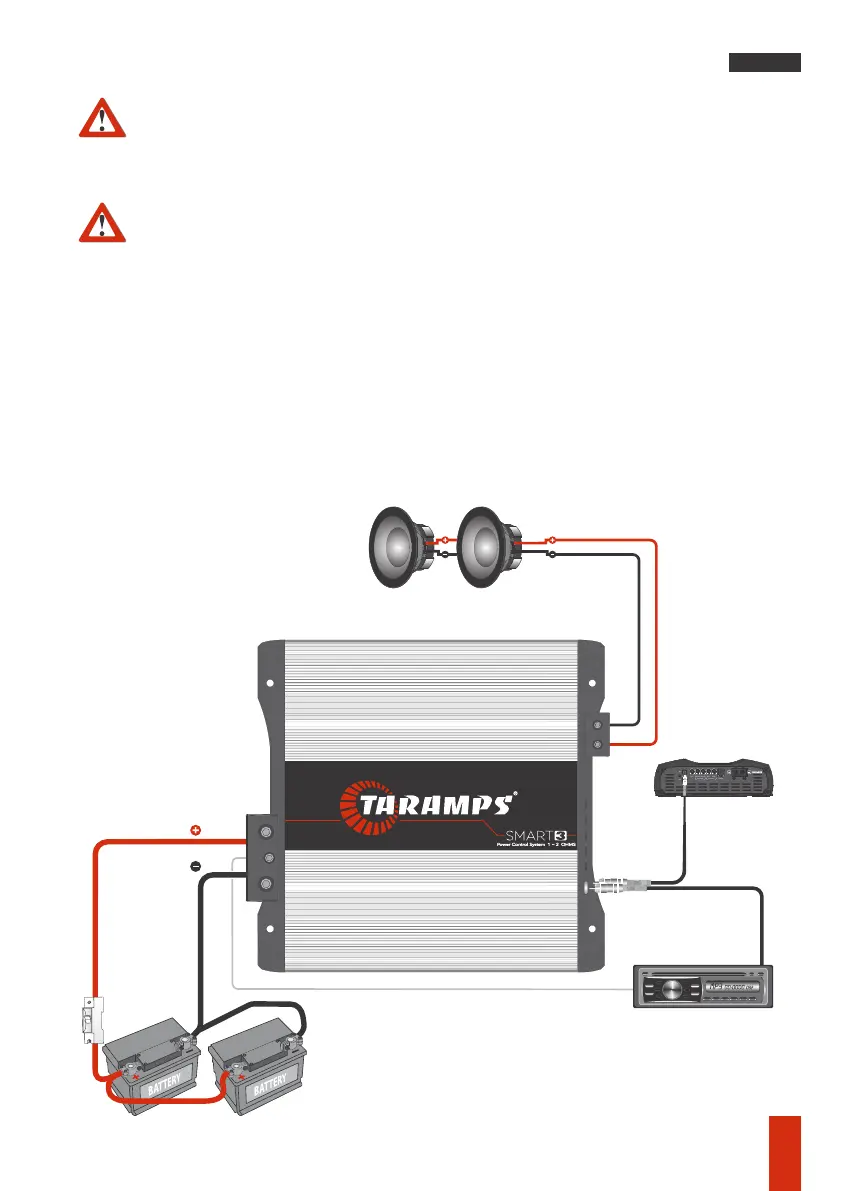

Illustrative images
