Target 6-Cube - (H8) X 1; L-Bracket Screw Wall Screw; 10 X 1;2 In. Flathead #10 X 1-1;2 in; (H4) X

18

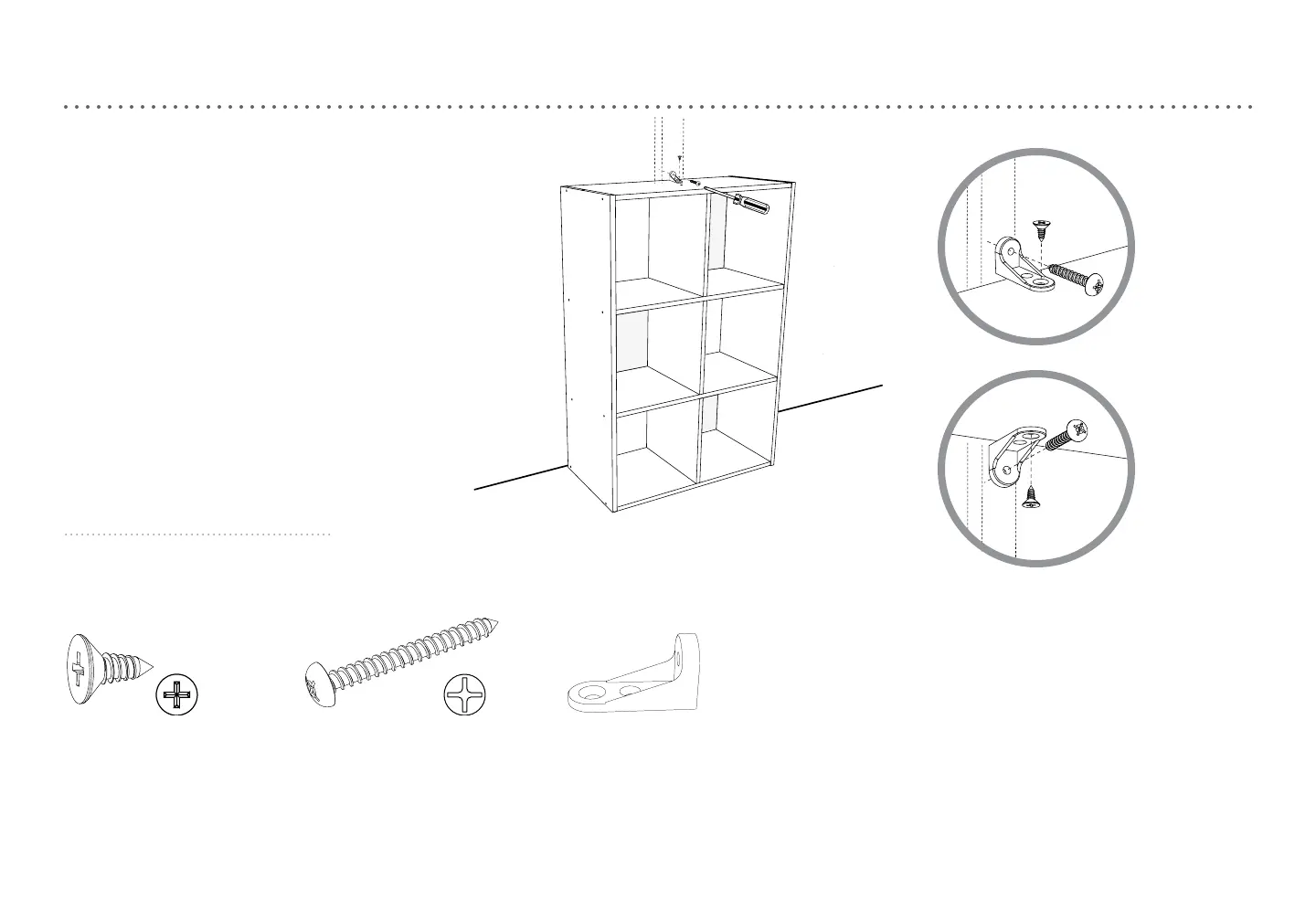

1. Align center of unit with wall stud. (All units MUST be fastened to the wall. When stacking units, the unit on the
bottom must be attached to the wall rst before setting another unit on top. Do not stack units more than 72 in. high.)
2. Place short end of L-bracket against wall/wall stud. Use 1-1/2 in. screw to secure L-bracket to wall.
3. Use 1/2 in. screw to secure L-bracket to top panel. For hidden hardware mount L-bracket through an open cube
which does not have a back panel.
step 10.
(H9) x 1
L-bracket
(H7) x 1
L-bracket screw
#10 x 1/2 in. athead
(H8) x 1
wall screw
#10 x 1-1/2 in.
wall
stud
top panel
top panel
wall
stud
