Target DSBSCDSKES - Page 8

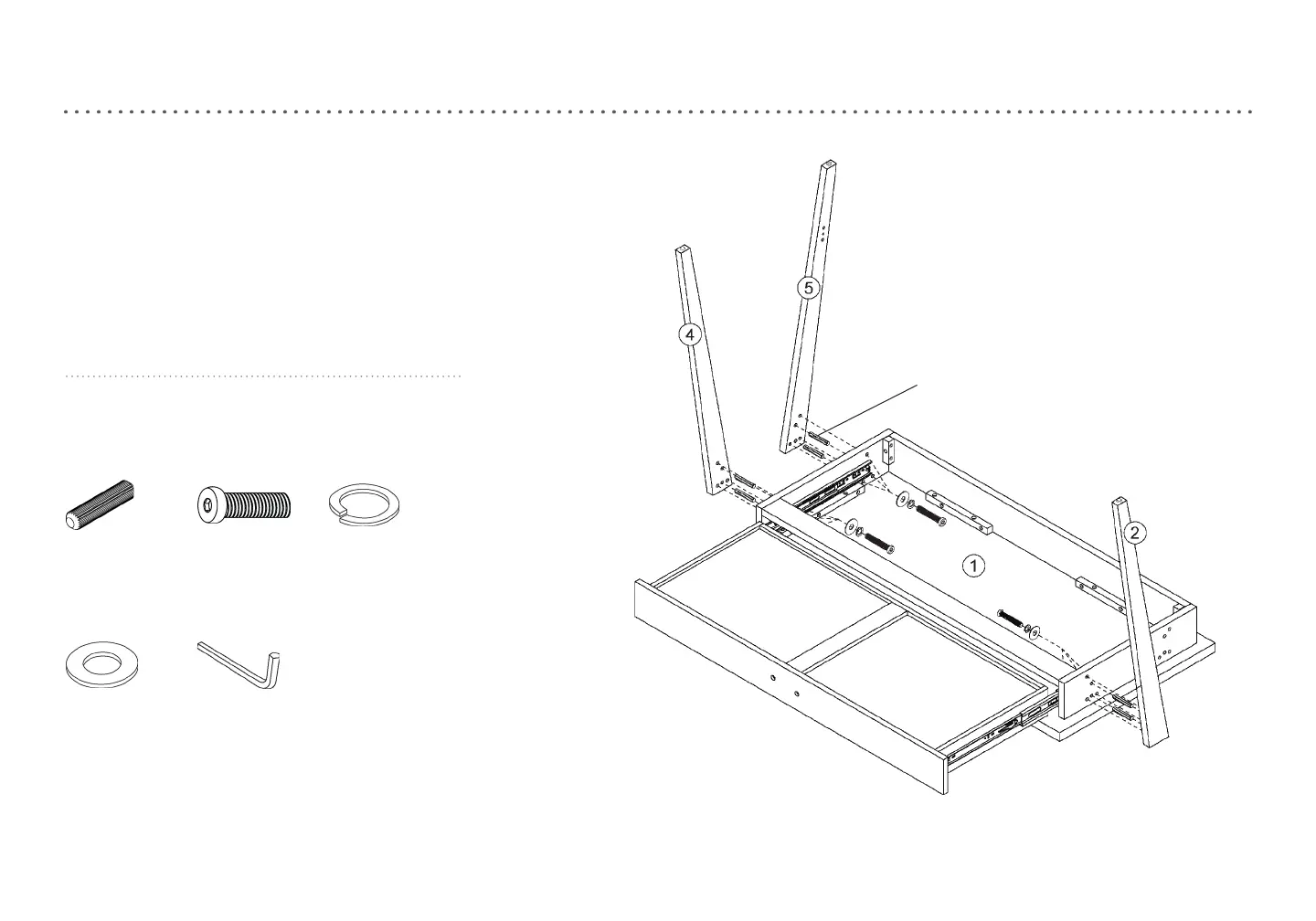

step 2: attach left front leg/right front leg/right back leg to top panel
(H1) x 6
wooden dowel
(H4) x 9
allen head bolt
(H5) x 9
lock washer
(H6)
x 9
washer
(H9)
x 1
allen wrench
2.1. Carefully tap small wooden dowels into place. Leave 12mm of the dowels sticking out.
2.2. Make sure bolts go through the pre-drilled holes properly.
2.3. Do not over tighten bolts.
8
Add 2 wooden
dowels to leg. (x3)
2.1. Carefully tap small wooden dowels into place. Leave 12mm of the dowels sticking out.
2.2. Make sure bolts go through the pre-drilled holes properly.
2.3. Do not over tighten bolts.
