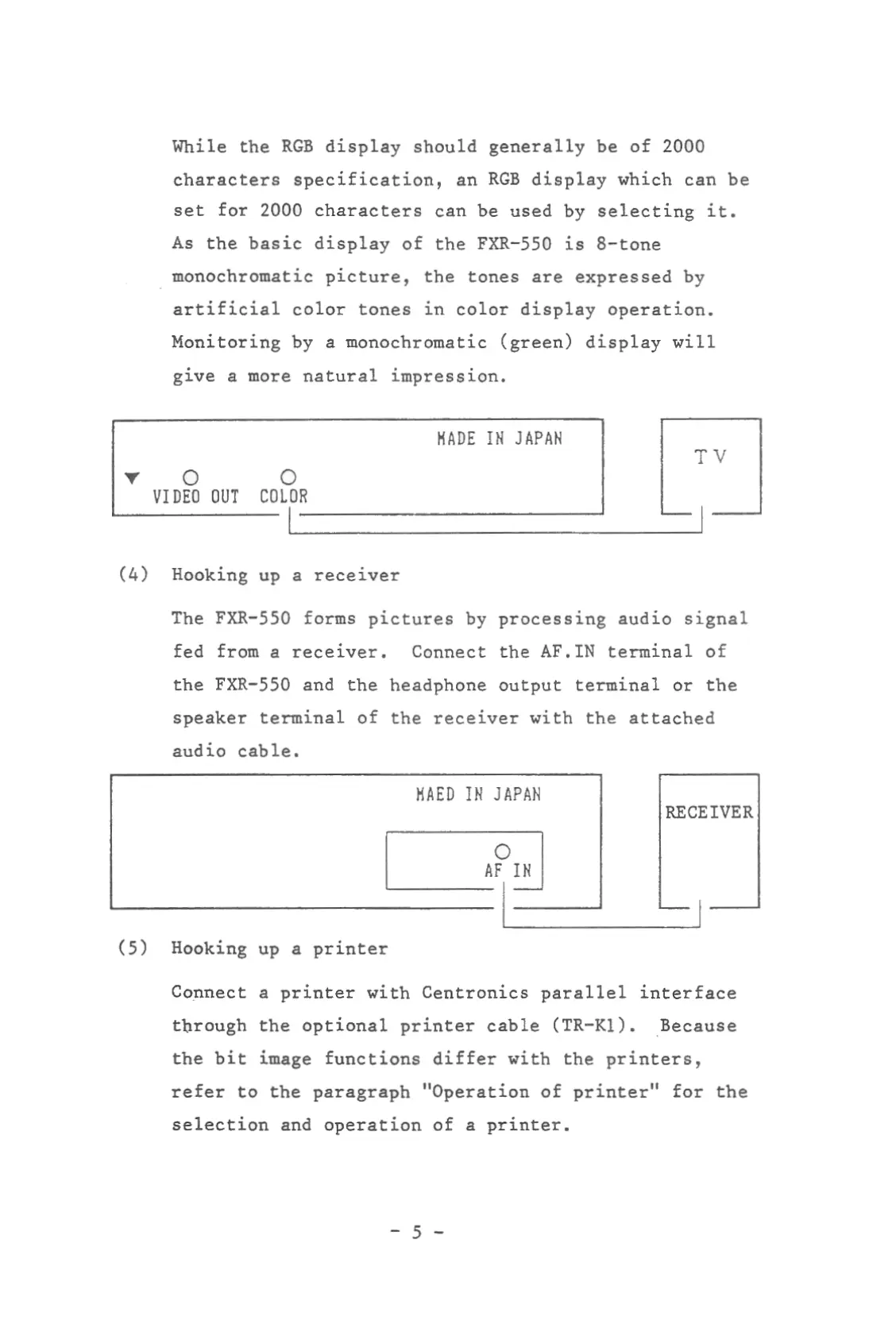

While the RGB display should generally be of 2000
characters specification, an RGB display which can be
set for 2000 characters can be used by selecting it.
As the basic display of the FXR-550 is 8-tone
_ monochromatic picture, the tones are expressed by
artificial color tones in color display operation.
Monitoring by a monochromatic (green) display will
give a more natural impression.
HADE IH JAPAN
T“V
Y O O
VIDEO UUT COLOR
Hooking up a receiver
The FXR-550 forms pictures by processing audio signal
fed from a receiver. Connect the AF.IN terminal of
the FXR*550 and the headphone output terminal or the
speaker terminal of the receiver with the attached
audio cable.
HAED IH JAPAN _
.RECEIVER
L—“‘t{_
Hooking up a printer
Connect a printer with Centronics parallel interface
through the optional printer cable (TR—Kl). _Because
the bit image functions differ with the printers,
refer to the paragraph "Operation of printer" for the
selection and operation of a printer.
