ASSEMBLY INSTRUCTIONS
Assembling the handle:
Before attempting to assemble empty carton and compare parts with parts list below. If any item is missing or damaged
cont
act customer service for replacement.

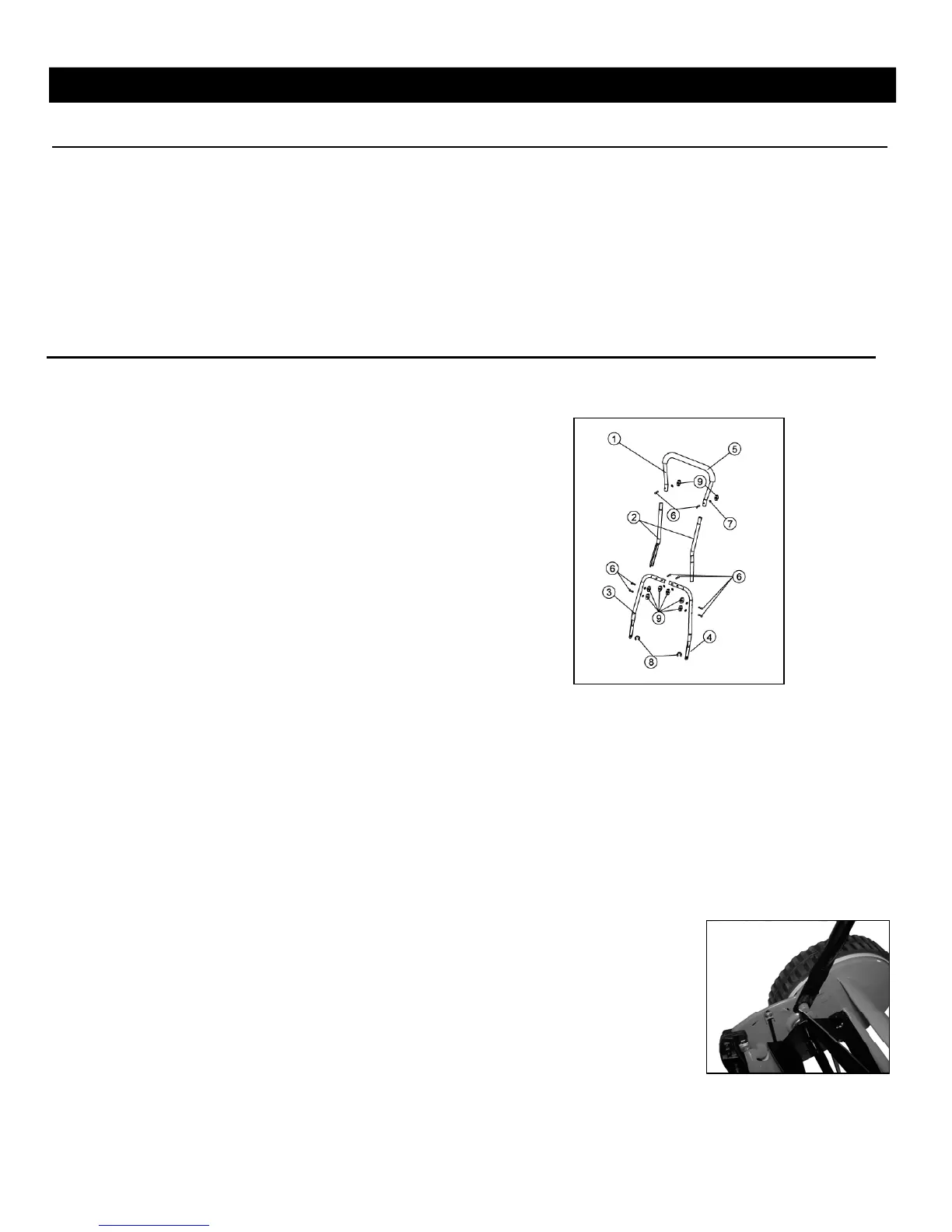

Parts List(Fig.1)
1. Top handle
2.
Centre handle pieces
3.
Left lower handle
4.
Right lower handle
5.
Foam grip
6.
1 3/8 in. bolts
7.
Flat washer
8.
C-clip
9. Wing nut
Tools Required
Pliers (Not included)
Assemb
ly Instructions: Refer to diagram above.
NOTE: Do not completely tighten bolts until assembly is complete.
1.
Insert the 2 center handle pieces (2) into the left and right side of the top handle (1) and secure with two 1 3/8in. bolts (6) ,
flat
washer (7) and wing nuts (9) provided.
2.
Connect the right lower handle (4) with the left lower handle (3) and secure with two 1 3/8 in. bolts (6), flat washer (7)
and wing nuts (9) provided.
3.
Attach the top handle subassembly previously assembled, to the lower handle subassembly using four 1 3/8in. bolts (6),
flat
washer (7) and wing nuts (9) provided.
4.
Tighten all the wing nuts on the joints of the handle assembly.
Attaching the handle to the mower base:
1. Align holes at the lower end of each handle arm with short posts extending
fro
m the mower base side plates. Slide lower ends of handle arms onto posts.
2. After handle arm holes are on posts, using pliers snap C-clips (8) onto the
This product normally requires 6 to 10 minutes for assembly.
SA
FETY RULES
• Never place hands, fingers or feet inside the reel. Although a motor does not power this mower, when the wheels turn
the
reel spins and can cut.
• Never mow when grass is wet as it can be slippery.
• Do not use the reel mower while barefoot or while wearing sandals.
• Walk behind, never run, while using reel mower. Always make sure of your footing when using this reel mower.
• Never intentionally strike or hit trees, fences, etc. This can cause injuries or severely damage the reel mower
mec
hanisms.
• Make sure your reel mower is in a safe operating condition. Do not attempt to operate this reel mower if damaged.
Cont
act customer service or have the reel mower repaired by a qualified repair service provider before using.
slotted posts on both sides to secure handle.
2
