Tate Grid: Ceiling System
7510 Montevideo Road © 2017 Tate Inc.
Jessup, MD 20794
410-799-4200 3

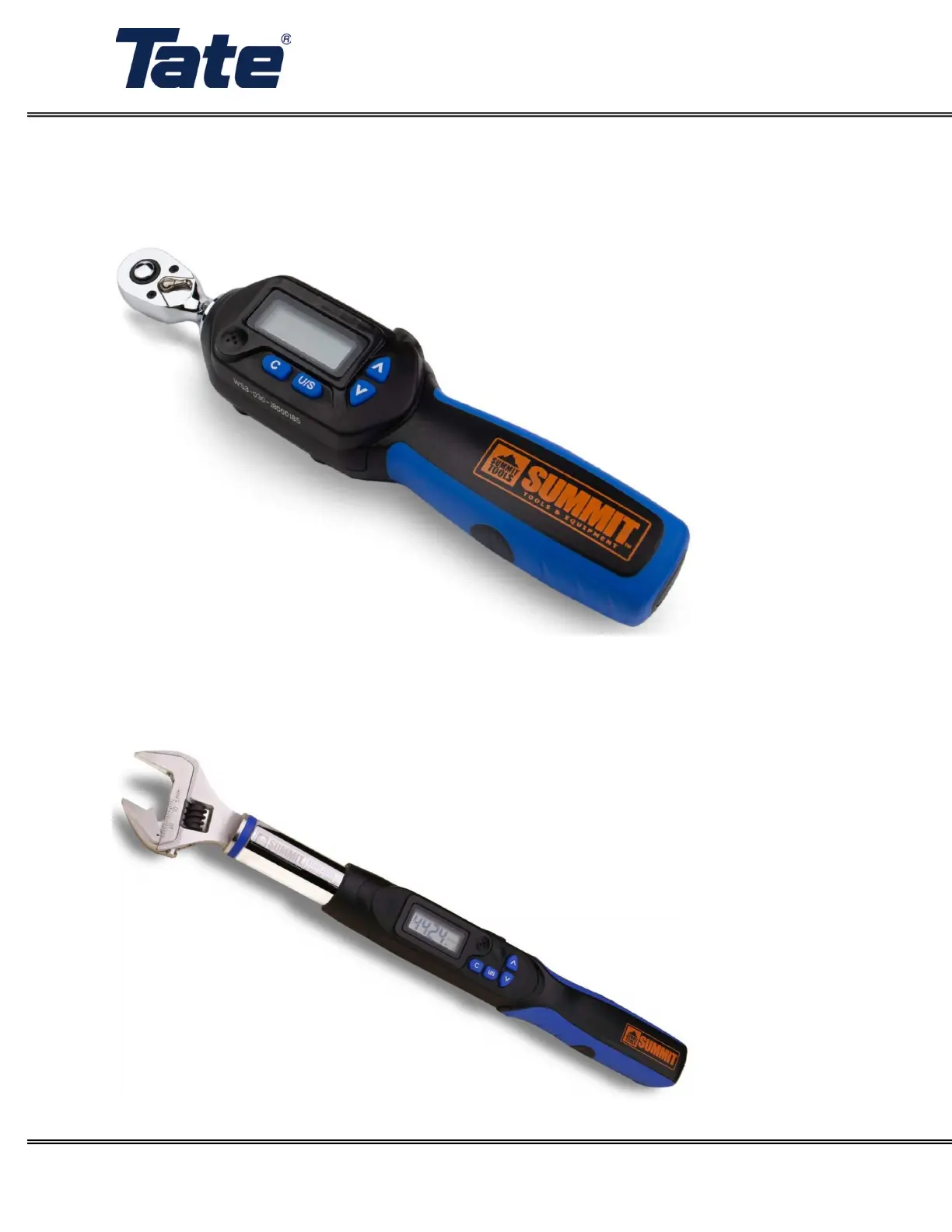

Bolt Torque
All bolt connections to the top slot of the grid should be tightened flush to a washer with a maximum
torque value of 30 in-lb, using a torque limiting screw gun or ratchet similar to:
All bolt or nut connections to the bottom slot of the grid should be tightened flush to a washer or
mounting bracket with a maximum torque value of 30 in-lb, using a torque limiting screw gun or wrench
similar to:
