Taurus Elite User Manual

1 Body frame 1
46 Round knob 1
5 Foot pad supporting frame 1
18 End cover 2
21 Leg pad 2
22 Leg pad 2
25 Hexagon Socket Button Head Screw
M8*30
4
28 Inner Hexagon Sunk Head Bolt M8*30 2
30 Spring washer M8 4
33 Plain washer
Φ16*Φ8.4*1.6
4
1
46
12
Ab Trainer

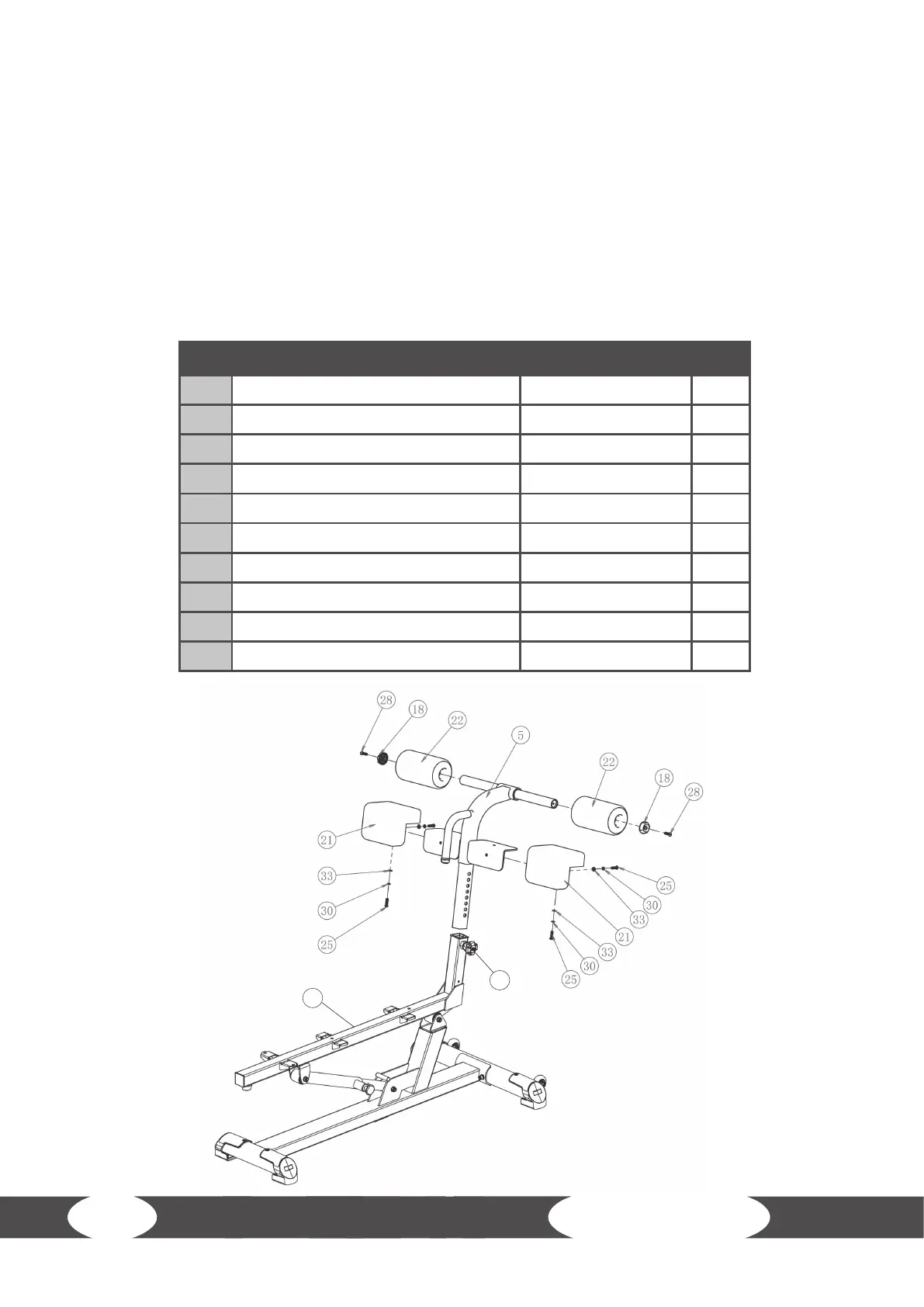

Step 2: Assembly of the Leg Pads
1. Loosen the round knob (46) of the body frame (1).
2. Insert the foot pad supporting frame (5) into the respective opening of the body frame (1).
3. Lock the foot pad supporting frame (5) in place by tightening the round knob (46) in one of the
pre-drilled holes of the foot pad supporting frame (5).
4. Mount the leg pads (21) on the foot pad supporting frame (5) with two screws (25), two spring
washers (30) and two plain washers (33) each.
5. Mount the leg pads (22) on the foot pad supporting frame (5) with one bolt (28) and one end
cover (18) each.
No. Name Specication Qty.
