1 Body frame 1
6 Bottom frame 1
24 Hex Socket Head Cap Screw M10*25 2
31 Spring washer M10 2
34 Plain washer Φ20*Φ10.5*2 2
11
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
L NOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembly of the Body Frame and Bottom Frame

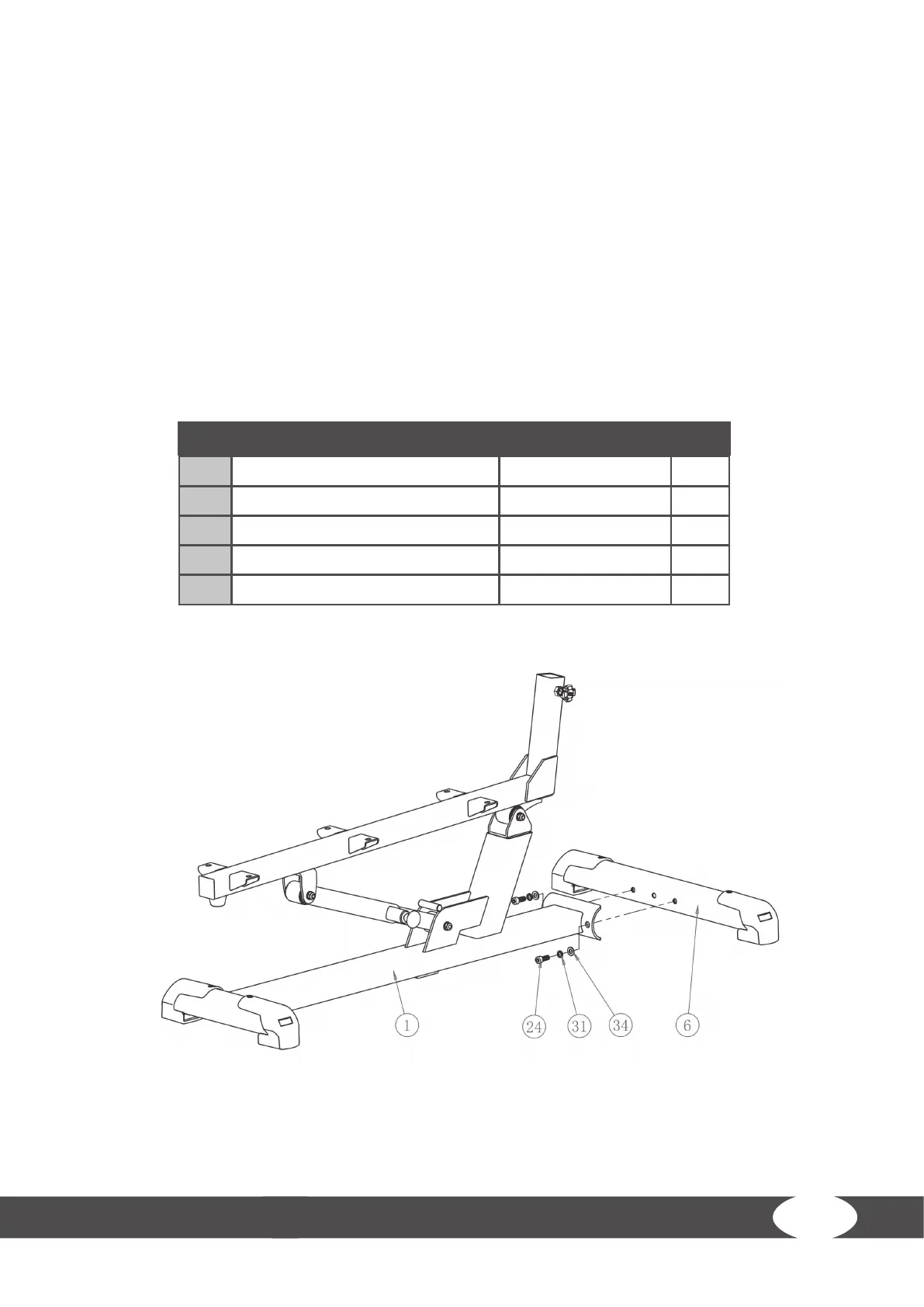

Mount the body frame (1) to the bottom frame (6) with two screws (24), two spring washers (31) and
two plain washers (34).
No. Name Specication Qty.
