2- Installation
2.1 - Removing transit bolts
Proceed as follows:
-Let the water run for a while before connecting the hose.
-Connect the water inlet hose applying the rubber joint provided in the fittings equipment
bag.
-Position the drainage hose inside a hose of a larger diameter, or rest it well fastened
against any kind of drain at the height indicated.
-Neither of the hoses should be twisted or kinked.

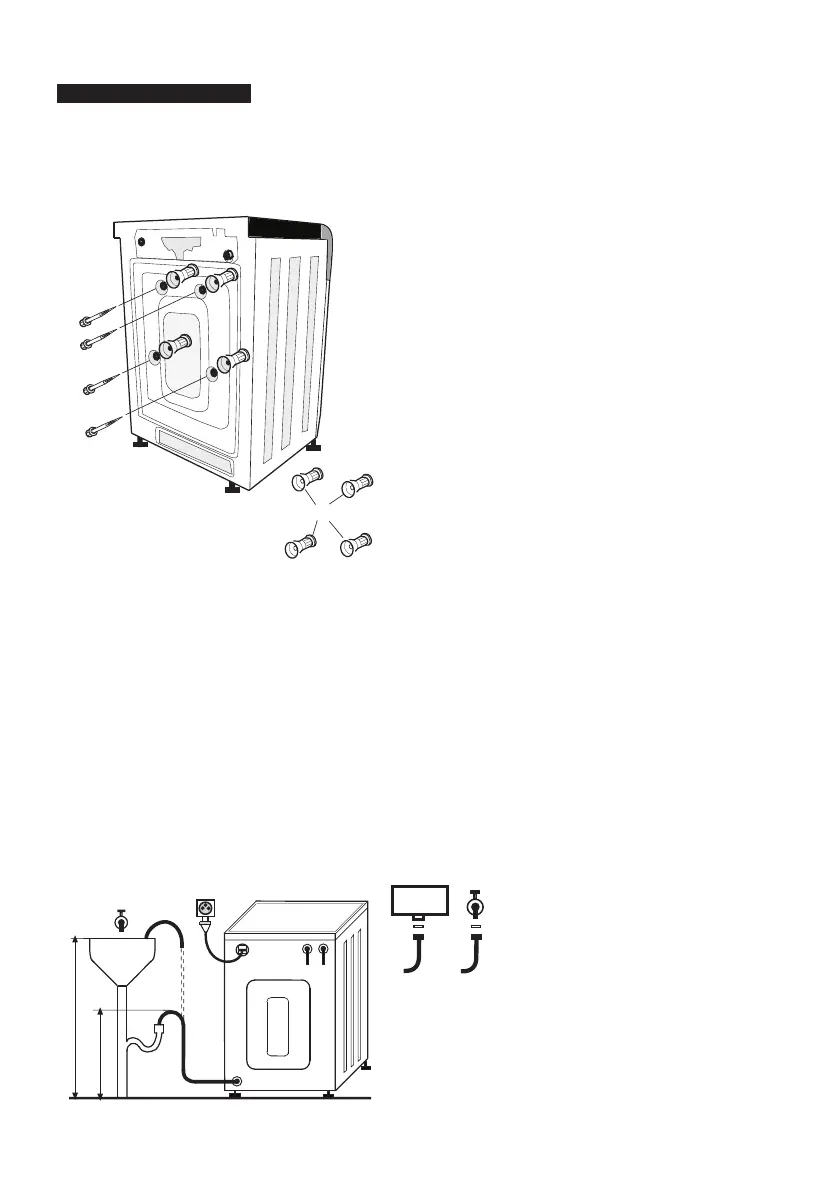

2.) Push with a screwdriver at an angle in the
screw holes until the four spacers (H) fall.
2.2 -Plumbing connection
The "H" connection can only be
applied in those machines fitted
for this (Bithermical).
H- Hot water connection.
C- Cold water connection.
After removing the external packing the drum
must be un-blocked before the machine is
used.
This is done in the following manner:
1.) Unscrew and remove the four screws A-B-
C-D.
3.) It is very important to recover these four
spacers (H) because they could cause damage
if they remain inside the machine and also
because they will be required to move the
machine in the case of moving house.
The user will require a tap with a 3/4" gas screwthread outlet and a drain situated
between 50 and 80 cms. above floor level. The watermain pressure must be between 0,4
and 10 bar inclusively.
These must be recovered and kept.
35
English
C
H
Max.80 cm.
Min.50 cm.
D
C
B
A
H
THERMO
C
H
- Use new tubes for connecting to the water supply.
