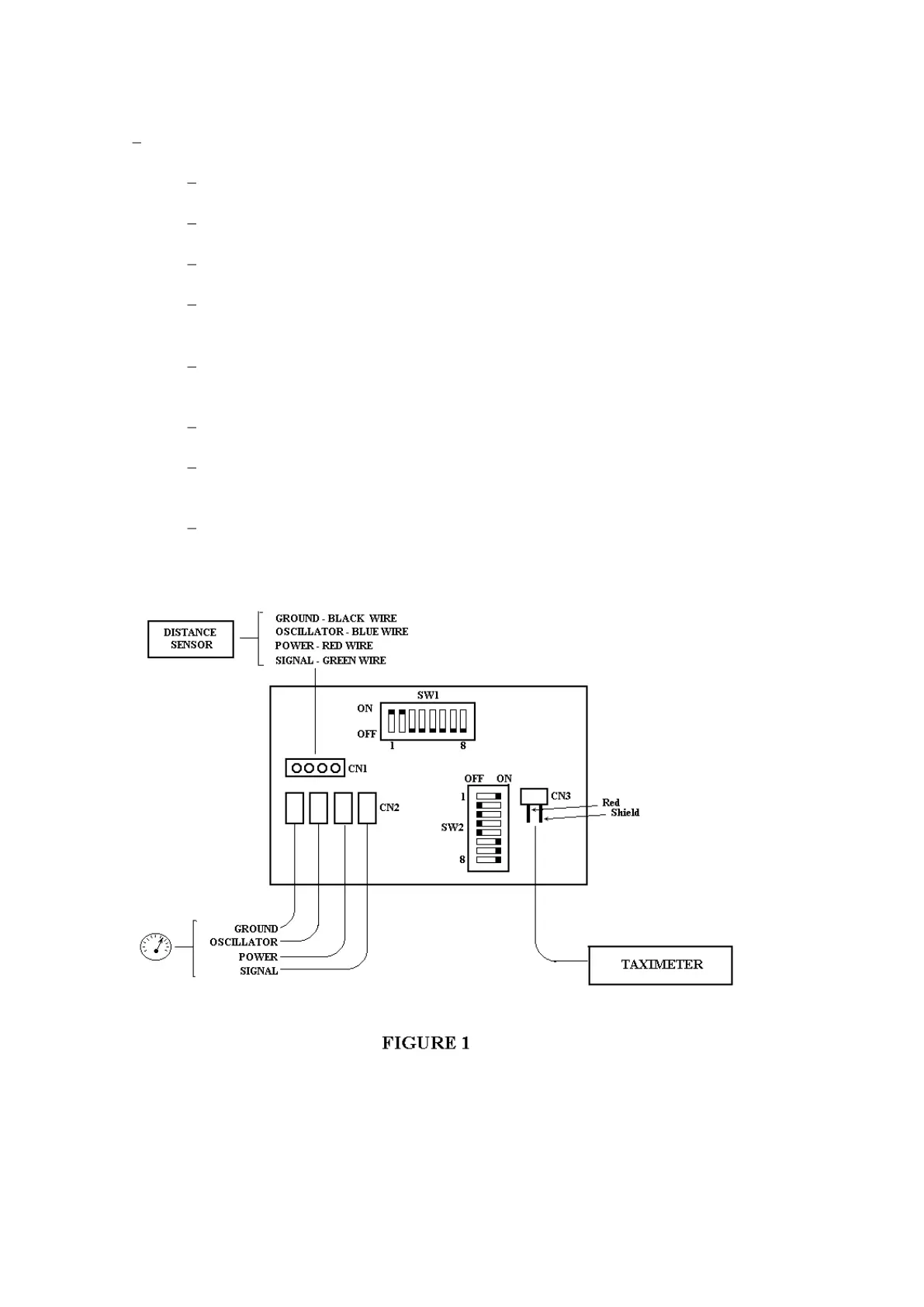

Equipment installation is made as follows:
Disconnect the cable which joins the vehicle sensor to the speedometer by
the side of the sensor. Usually, it is placed in the gearbox.
Put the rubber washer enclosed in the adapter circuit in this cable in order it
remains well fixed.
This cable must be solded in the contacts foreseen in the adapter circuit
(CN2).
These contacts are: Ground, Oscillator, Power and Signal. If the car sensor
does not have one of these signals, the corresponding contacts will
remain empty.
Connect the cable that is delivered with the adapter, to the CN1 connector
and at the other end the distance sensor, making the same contacts that you
have done previously.
Cover the connections made with the thermoretractable cable enclosed and
apply heat to seal it and prevent modifications.
Connect the taximeter to the adapter circuit in connector CN3 by means of
the cable enclosed. The cable must be connected leaving the shield and the
red cables at the top part.
Verify that the taximeter works correctly and adjust the constant "K" of the
taximeter with the tariff charger.
