Models RD30/RC25 Operator Parts Identification

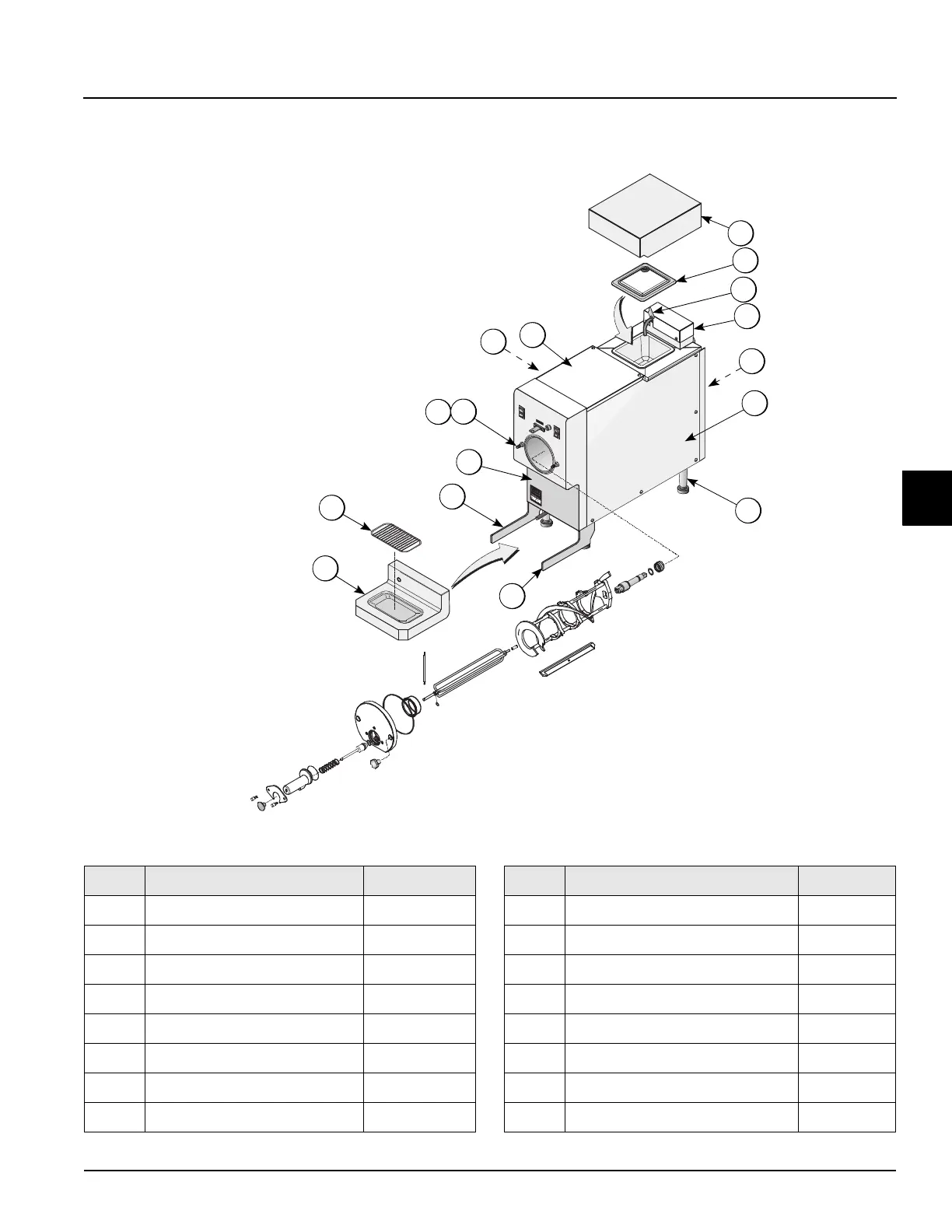

Beater Door Assembly
ITEM DESCRIPTION PART NO.
1 Door Assembly- Complete X48768
1a Screw- 1/4 - 20 x 9/16 Thumb 047632
1b Knob- Draw Valve- Black Plastic 047358
1c Plate- Draw Spout Mounting 049275
1d Spout- Door Zero Waste 049276
1e O- Ring- 2.375 OD x 1/16 W 046830
1f Spring- Comp. - .845 x .055 x 3.5 047357
1g Valve- Draw Zero Waste 047353
1h O- Ring- 7/8 OD x .103 W 014402
1i Door A.- Partial X50172
2 O- Ring 5.5” OD x 5.234 ID x .13 049077
3 Bearing- Front 013116
ITEM DESCRIPTION PART NO.
4 Arm- Torque 014500
5 O- Ring .291 ID x .080 W 018550
6 Torque Assembly X49022
7 Bearing- Guide 014496
8 Beater A.- 7 Qt.- 1 Pin Support X46233
9 Blade- Scraper- Plastic 046237
10 Clip - Scraper Blade 046238
11 Shaft- Beater 035418
12 O- Ring 7/8 OD x .139 W 025307
13 Seal- Drive Shaft 032560
14 Nut- Stud 045644
Note: Optional Door Assembly X50654 has a larger
draw valve, spout and door port for thick product.
