14
Owner’s Manual
COMPACT TILLER AND CULTIVATOR
Get parts online at www.tazzoutdoorproducts.com or Call 800-345-6007 M-F 8-5 CST

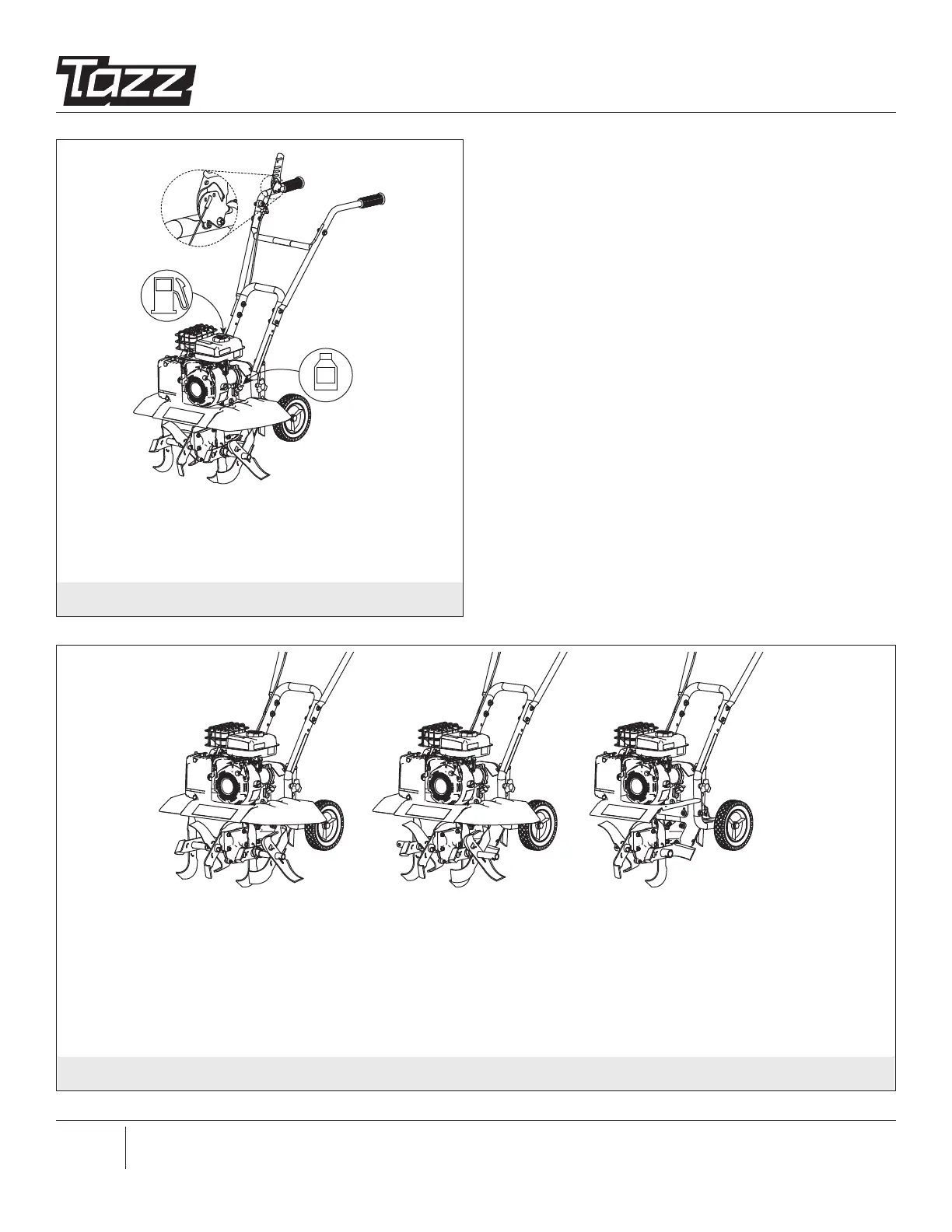

FIGURE 11
Insert Z-bend end of drive cable into one of the three
holes in the drive control lever ensuring there is no excess
slack in the cable and the drive control lever remains in
the full up position.
VIPER
10W30
87+
FIGURE 12
NOTE: Tines can be congured for multiple tilling situations:
a. Wide Tilling - Install according to Figure 6.
b. Narrow Tilling - Remove outer tines and lock pins and install on opposite tine shaft with the directional arrows
pointing in the direction of forward rotation.
c. Narrow Cultivating - Remove outer tines and lock pins. Side shields can also be removed for better viewing of plants.
WIDE TILLING 21 INCHES
NARROW TILLING 16 INCHES NARROW CULTIVATING 11 INCHES
