TCF TCPE - Dimensional Data

14 Twin City IM-4800

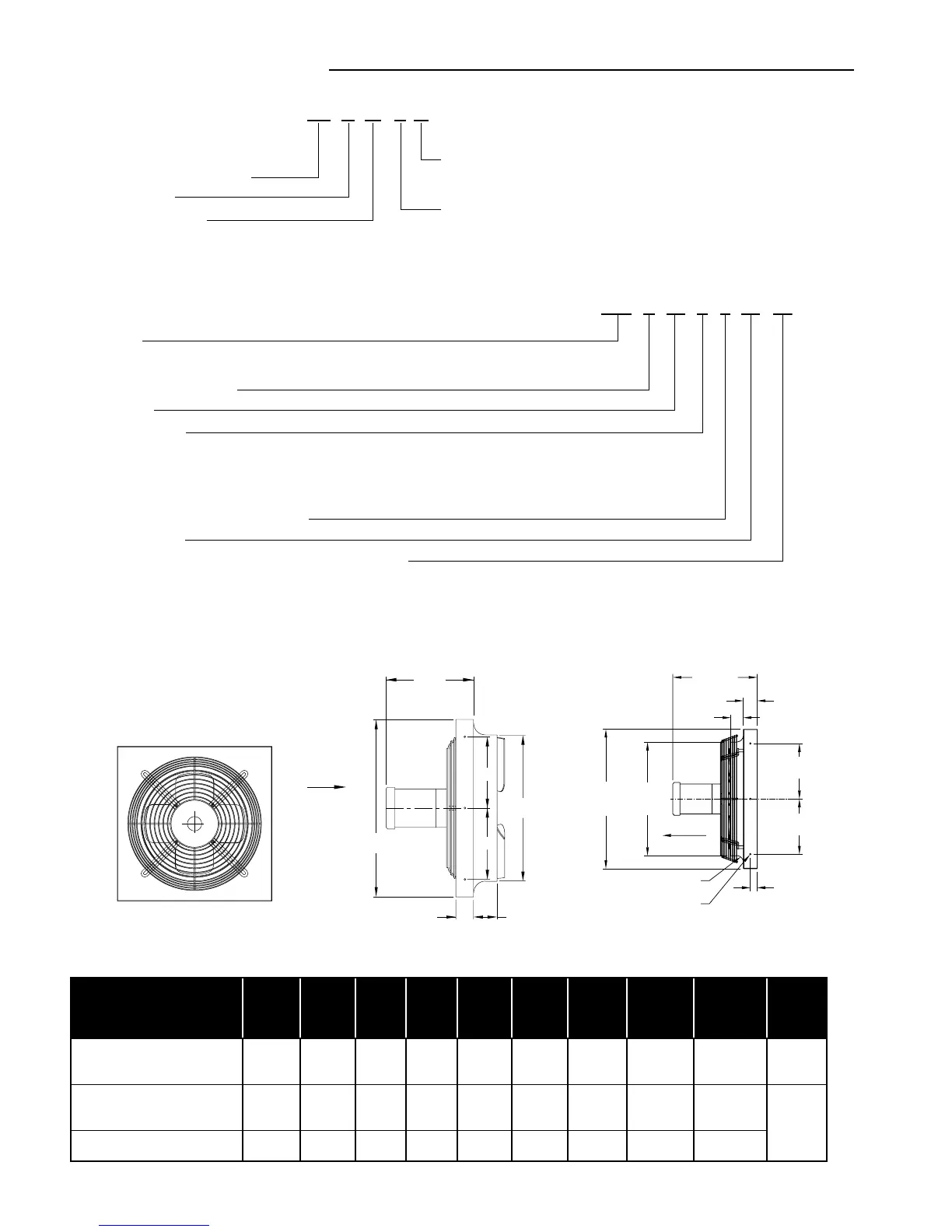

Dimensional Data
X Max
.
A SQ.
(INSIDE)
B
I.D.
F
F
C2"
AIR
FLOW
TCPE – Direct Drive
Exhaust Supply
Y Max.
2.00
C
F
F
A SQ.
(OUTSIDE)
B
I.D.
AIR
FLOW
R RAD.
0.313 HOLES
(D QTY)
1.00
TCPE
SIZE
A
I.D.
B
I.D
C F
X
MAX.
Y
MAX.
PROP.
DIA.
DAMPER
SIZE
WALL
OPENING
SQ.
MIN.
MOTOR
FRAME
080A, 081A, 082A, 082AE 13.25 8.38 1.25 4.00 10.25 12.25 8.00 10 x 10 13.75
48100A, 101A, 102A, 102AE 15.25 10.38 1.50 5.00 11.25 13.25 10.00 12 x 12 15.75
120A, 121A, 122A, 122AE 18.25 12.38 2.00 6.50 11.50 13.50 12.00 15 x 15 18.75
140A, 141A, 142A, 142AE 21.25 14.50 2.75 8.00 19.00 21.00 14.00 18 x 18 21.75
56C
160A, 161A, 162A, 162AE 23.25 16.50 3.00 9.00 19.00 21.00 16.00 20 x 20 23.75
180A, 181A, 182A, 182AE 25.25 18.50 3.00 10.00 19.00 21.00 18.00 22 x 22 25.75
200A, 201A, 202A, 202AE 27.25 20.63 3.00 11.00 20.50 22.50 20.00 24 x 24 27.75
240A, 241A, 242A 30.25 24.63 3.00 12.00 22.00 24.00 24.00 27 x 27 30.75
Model Nomenclature
TCP E - 14 - 2 A
Model TCPE, Direct Drive
E = Exhaust
Propeller Diameter
Design Vintage / Motor Type
A = Design A
AE = Design A with EC Motor
Speed
0 = 800 or 1350 RPM
1 = 1100 or 1500 RPM
2 = 1700 or 1650 RPM
WPB - E - 24 - B - 1 - 05 - 25
Model
WPD = Wall Propeller Fan, Direct Drive
WPB = Wall Propeller Fan, Belt Driven
E = Exhaust, S = Supply
Fan Size
Propeller Type
L1 & L2 = Level 1 & Level 2, Fabricated Steel, Fixed Pitch (5-Bladed)
B = Cast Aluminum, Adjustable Pitch (4, 5, and 6-Bladed)
E = Cast Aluminum, Adjustable Pitch (4 and 8-Bladed)
C = Cast Aluminum, Adjustable Pitch (4 and 6-Bladed)
Z = Fabricated Steel, Fixed Pitch (5-Bladed)
Hub Designation (B Propellers Only)
No. of Blades
Propeller Blade Angle (B, C, E, and Z Propellers Only)
