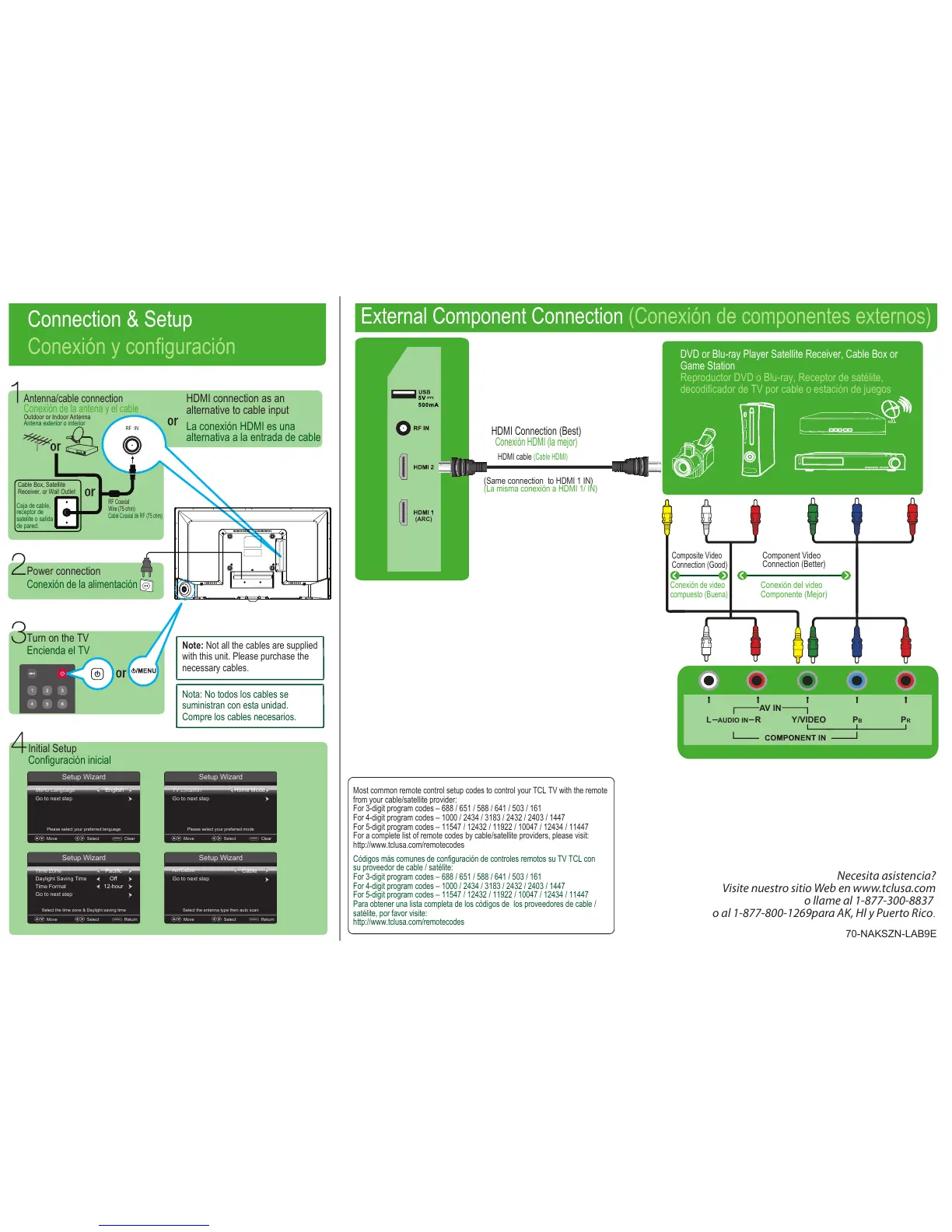

TCL 32D2700 Quick Setup Guide

External Component Connection (Conexión de componentes externos)
Initial Setup
Configuración inicial
70-NAKSZN-LAB9E
Connection & Setup
Conexión y configuración
Antenna/cable connection
Conexión de la antena y el cable
Power connection
Conexión de la alimentación
Turn on the TV
Encienda el TV
Note: Not all the cables are supplied
with this unit. Please purchase the
necessary cables.
Nota: No todos los cables se
suministran con esta unidad.
Compre los cables necesarios.
HDMI connection as an
alternative to cable input
La conexión HDMI es una
alternativa a la entrada de cable
Outdoor or Indoor Antenna
Cable Box, Satellite
Receiver, or Wall Outlet
RF IN
RF Coaxial
Wire (75 ohm)
Cable Coaxial de RF (75 ohm)
Antena exterior o interior
Caja de cable,
receptor de
satelite o salida
de pared.
Necesita asistencia?
Visite nuestro sitio Web en www.tclusa.com
o llame al 1-877-300-8837
o al 1-877-800-1269para AK, Hl y Puerto Rico.
Most common remote control setup codes to control your TCL TV with the remote
from your cable/satellite provider:
For 3-digit program codes – 688 / 651 / 588 / 641 / 503 / 161
For 4-digit program codes – 1000 / 2434 / 3183 / 2432 / 2403 / 1447
For 5-digit program codes – 11547 / 12432 / 11922 / 10047 / 12434 / 11447
For a complete list of remote codes by cable/satellite providers, please visit:
http://www.tclusa.com/remotecodes
Setup Wizard
Select the time zone & Daylight saving time
Time Zone
Daylight Saving Time
Time Format
Go to next step
Pacific
Off
12-hour
Move Select Return
MENU
Setup Wizard
Menu Language
Go to next step
Please select your preferred language
Move Select Clear
MENU
English
Setup Wizard
Air/Cable
Go to next step
Select the antenna type then auto scan
Move Select Return
MENU
Cable
Setup Wizard
TV Location
Go to next step
Please select your preferred mode
Move Select Clear
MENU
Home Mode
HDMI Connection (Best)
(Same connection to HDMI 1 IN)
(La misma conexión a HDMI 1/ IN)
HDMI cable (Cable HDMI)
Conexión HDMI (la mejor)
Component Video
Connection (Better)
Conexión del video
Componente (Mejor)
DVD or Blu-ray Player Satellite Receiver, Cable Box or
Game Station
Reproductor DVD o Blu-ray, Receptor de satélite,
decodificador de TV por cable o estación de juegos
AV IN
Y/VIDEO
L R
AUDIO IN
PRPB
Composite Video
Connection (Good)
Conexión de video
compuesto (Buena)
Códigos más comunes de configuración de controles remotos su TV TCL con
su proveedor de cable / satélite:
For 3-digit program codes – 688 / 651 / 588 / 641 / 503 / 161
For 4-digit program codes – 1000 / 2434 / 3183 / 2432 / 2403 / 1447
For 5-digit program codes – 11547 / 12432 / 11922 / 10047 / 12434 / 11447
Para obtener una lista completa de los códigos de los proveedores de cable /
satélite, por favor visite:
http://www.tclusa.com/remotecodes
(ARC)

TCL 32D2700 Specifications

General

Response time	- ms
Display diagonal	32 \
Display brightness	- cd/m²
Display resolution	1280 x 720 pixels
Display technology	LED
Native aspect ratio	16:9
Native refresh rate	60 Hz
3D	No
HDMI version	1.3
Headphone outputs	-
Composite video in	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	0
Product color	Black
Audio decoders	Dolby Digital, Dolby Digital Plus
RMS rated power	10 W
Power consumption (standby)	- W
Power consumption (typical)	45 W
Package type	Box
Package depth	127 mm
Package width	838.2 mm
Package height	508 mm
Package weight	6350 g

Weight and Dimensions

Depth (with stand)	178 mm
Height (with stand)	457.2 mm
Weight (with stand)	- g
Depth (without stand)	76.2 mm
Width (without stand)	711.2 mm
Height (without stand)	432 mm
Weight (without stand)	4530 g
