Step 4
7
Get to know your TV
USB PORT
Connect a USB device to access photos,
music and movies.
RESET BUTTON
Press once to restart your TV. Press
and hold for factory reset, and careful, you will lose
all your settings!
C
D
HDMI ARC PORT Connect HDMI ARC (audio return
channel) capable audio devices like sound bars or
AV receivers.
F
3 HDMI
PORTS
Highest quality audio/video connection.
Connect cable box, Blu-ray player, gaming console,
or other devices to your TV using HDMI cables.
E
ANTENNA/CABLE IN Connect an outdoor VHF/UHF
antenna or Cable TV feed.
OPTICAL (DIGITAL AUDIO OUT)
Connect an optical
cable to an external digital audio system.
The AV Input can be used to connect older devices
that use analog audio/video outputs. Compatible
adapter (not included) connects to the RCA cable
(video - yellow and audio - white and red) that
you normally use to connect to that device.
AV IN adapter
AV Input (analog audio/video)
G
J
H
HEADPHONE OUT
Connect headphones or other
external speakers.
I
IR RECEIVER
Receives signal from
the TV remote.
STATUS LIGHT
Glows when the
TV is in standby, flashes when
the TV is busy, flashes once with
each button press of the remote
control.
A
POWER and OPTIONS BUTTON
B
Press once to open the menu. Press and hold to turn
o the TV.
TV FRONT
A

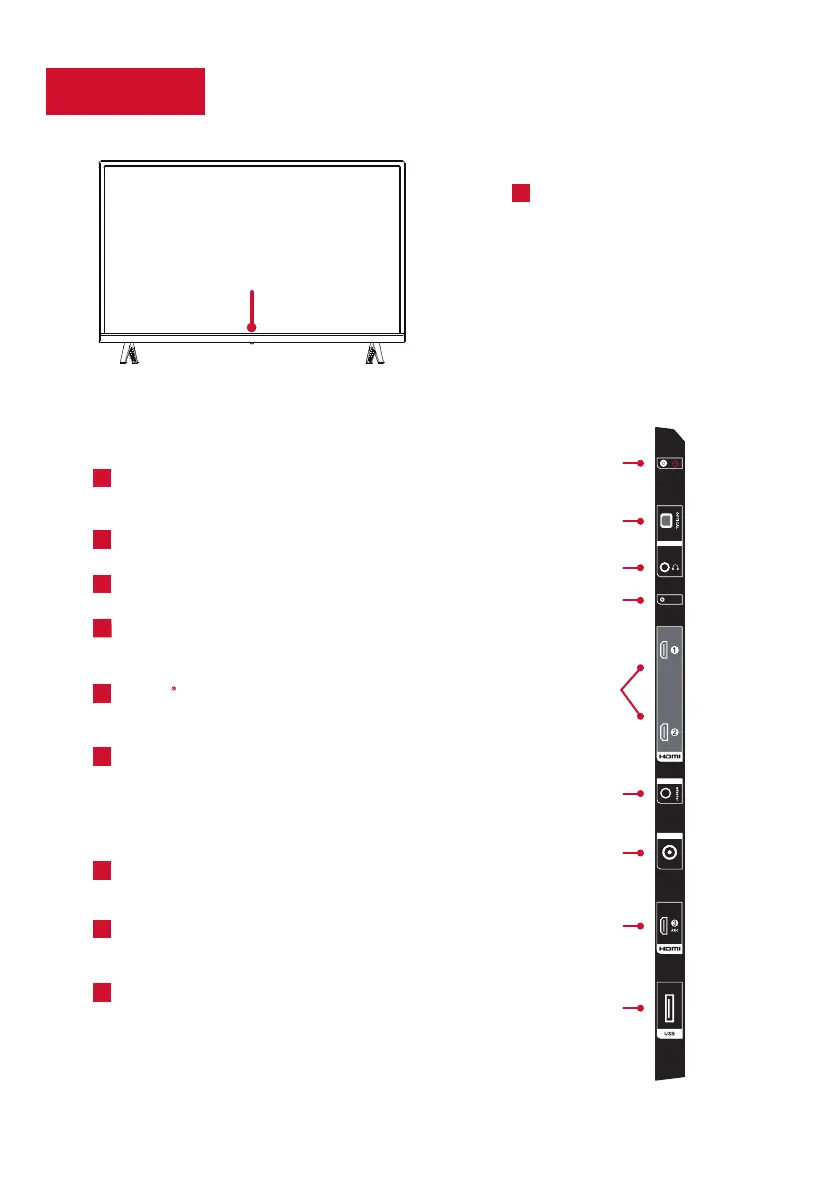

TV BACK
C
B
D
E
H
I/F
J
F
G
RESET
AUDIO OUT
AV IN
CABLE/ANT
