Get to know your TV

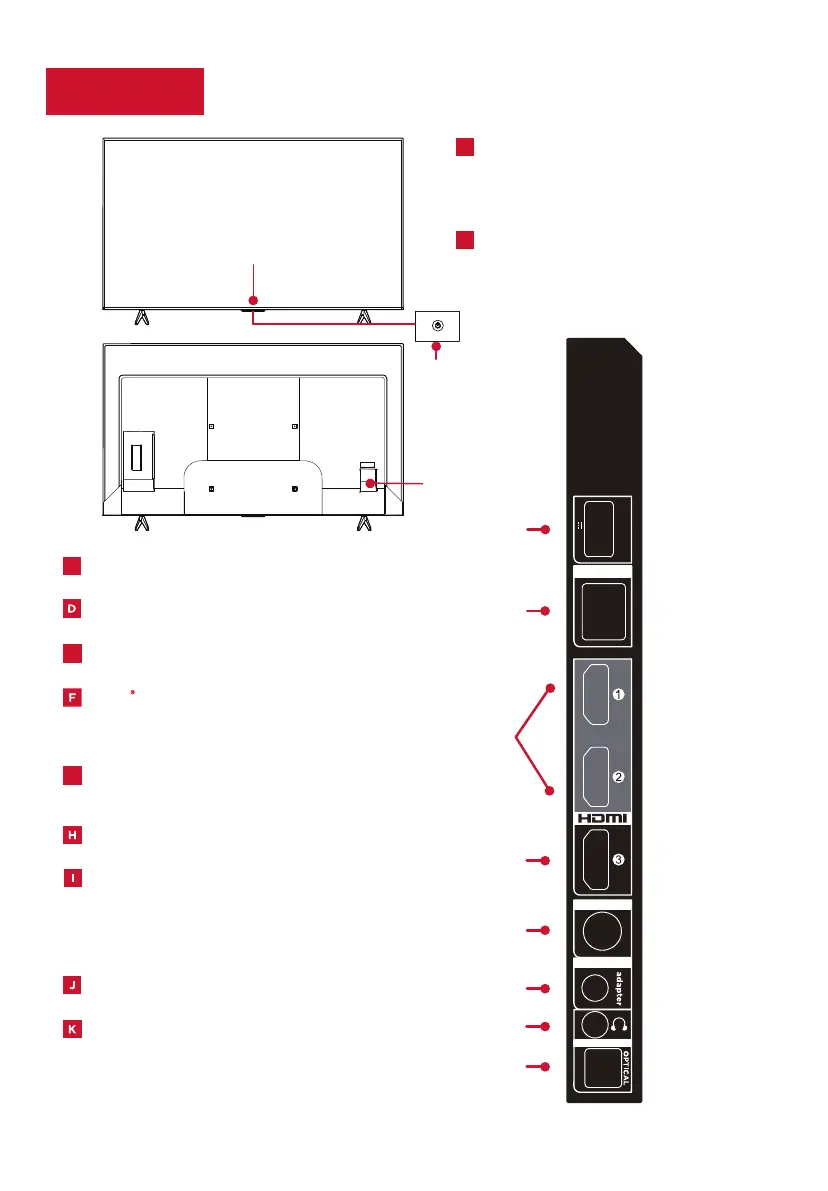

TV FRONT
TV BACK
A
E
ETHERNET Connect using an ethernet cable to
your home network router or switch.
HDMI eARC/ARC PORT Connect HDMI eARC/ARC
(audio return channel) capable audio devices like
sound bars or AV receivers.
G
PORT
Highest quality audio/video
connection. Connect cable box, Blu-ray player,
gaming console, or other devices to your TV
using HDMI cables.
HDMI
USB PORT Connect a USB device to access
photos, music and movies.
ANTENNA/CABLE IN
Connect an outdoor VHF/
UHF antenna or Cable TV feed.
OPTICAL (DIGITAL AUDIO OUT) Connect an
optical cable to an external digital audio system.
The AV Input can be used to connect older devices
that use analog audio/video outputs. Compatible
adapter (not included) connects to the RCA cable
(video - yellow and audio - white and red) that you
normally use to connect to that device.
AV IN adapter AV Input (analog audio/video).
HEADPHONE OUT Connect headphones or
other external speakers.
TV SIDE
E
F/G
H
I
J
K
F
D
C
B
IR RECEIVER Receives signal from
the TV remote.
STATUS LIGHT
Glows when the
TV
is in standby.
A
B
POWER and OPTIONS BUTTON
Press once to open the menu.
Short click to change the menu and
long click to select.
C
POWER PORT Connect your TV
to the power
source with the
included power cable.
(e)ARC
AV IN
CABLE/ANT
AUDIO OUT
ETHERNET
USB 2.0
5V 0.5A
