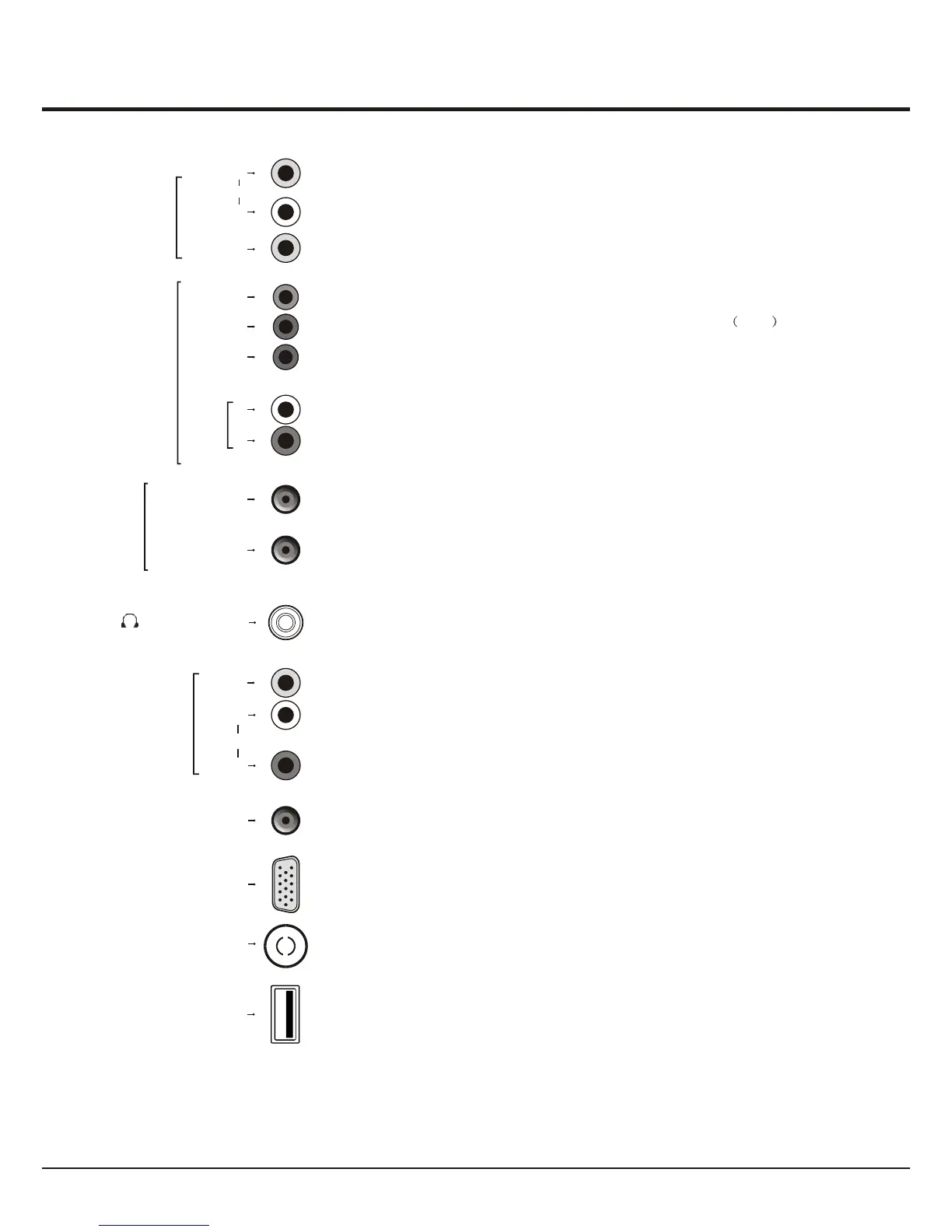

Introduction
6
VGA socket (input)
This socket can be used to connect a computer.
VGA
ANTENNA IN
ANTENNA IN socket (input)
This socket can be used to connect the outside aerial or cable network.
YPBPR component sockets or CMP IN/ AV IN adapter input AUDIO IN
Y/VIDEO
PB/CB
PR/CR
COMPONENT
IN
These YPBPR sockets can be used to connect a device that has component video
sockets, such as a DVD player. The component sockets can recognize if the device
you're connecting to is Y Pb Pr compatible or Y Cb Cr compatible. The component
sockets provide excellent picture quality because the video is separated into three
separate parts.
Note: 1. T Y and VIDEO share the same socket
T AUDIO IN adapter
and
he .
2. The Y/VIDEO PB/PR socket can be used to connect the attached
Y/VIDEO PB/PR cable with YPBPR component sockets.
3. he socket can be used to connect the attached
AUDIO in adapter cable with audio L & R sockets, be used to obtain
sound.
IN adapter
IN adapter
R
L
R
L
AUDIO
IN
AUDIO
AV RCA audio + video sockets (input)
Note: T AV IN sockets share the Y and AUDIO IN sockets of
he COMPONENT
IN.
L
AUDIO
VIDEO
AV IN
R
Headphone socket (output)
This socket can be used to connect headphones or stereo earphones.
Warning: excessive sound pressure from earphones and headphones can
cause hearing loss.
HEADPHONE
or
USB socket (input)
These sockets can be used to connect an USB device.
Note:
1. Some USB sockets support to connect a HUB. and the supported max. electric
current varies for 1A or 0.5A.
2. the number of USB sockets on the TV may vary according to TV model.
USB
or
Y/VIDEO PB/PR
IN adapter
AUDIO IN
adapter
CMP IN/
AV IN
VIDEO
AV OUT
AUDIO/VIDEO sockets (output) or AV adapter (output) socket
Note:
1. The AV OUT adapter socket can be used to connect the attached AV
adapter cable with VIDEO and AUDIO L & R OUT sockets.
2. AV OUT VIDEO may not available for some models.
AV OUT
adapter
or
These AV out sockets can be used to connect
The VIDEO OUT socket
p
rovides
a VCR to record programs. You must
leave the TV on the same channel you are recording.
composite video connection.
