6
TV SIDE
I
J
TV FRONT
A
TV BACK
B
C
D
H
E
F
G
A
B
C
D
E
F
G
H
I
J
K

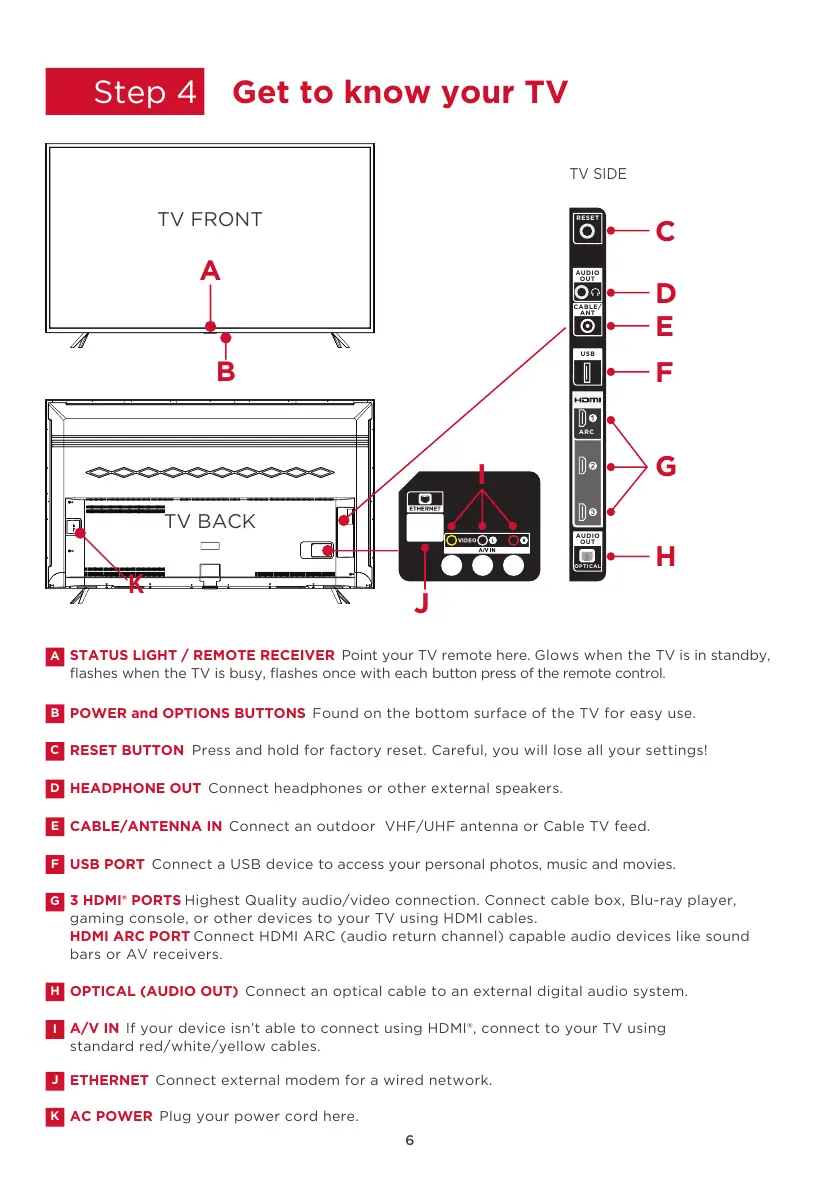

RESET BUTTON Press and hold for factory reset. Careful, you will lose all your settings!
POWER and OPTIONS BUTTONS Found on the bottom surface of the TV for easy use.
HEADPHONE OUT Connect headphones or other external speakers.
CABLE/ANTENNA IN Connect an outdoor VHF/UHF antenna or Cable TV feed.
3 HDMI® PORTS Highest Quality audio/video connection. Connect cable box, Blu-ray player,
gaming console, or other devices to your TV using HDMI cables.
HDMI ARC PORT Connect HDMI ARC (audio return channel) capable audio devices like sound
bars or AV receivers.
USB PORT Connect a USB device to access your personal photos, music and movies.
A/V IN If your device isn’t able to connect using HDMI®, connect to your TV using
standard red/white/yellow cables.
OPTICAL (AUDIO OUT) Connect an optical cable to an external digital audio system.
ETHERNET Connect external modemfor awired network.
AC POWER Plug your power cord here.
STATUS LIGHT / REMOTE RECEIVER Point your TV remote here. Glows when the TV is in standby,
flashes when the TV is busy, flashes once with each button press of the remote control.
