2 Person Deluxe Swing
4 Item #21636
2 Person Deluxe Swing
Item #21636 5
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898
A
Leg 4
B
Leg Support 2
C
Swing Support 1
D
Arm Rest 2
E
Swing Arm 4
F
Swing Back 1
G
Swing Seat 1
H
Connector 2
I
Canopy Bar 2
J
Hook 2
L
Canopy 1
M
Cushions 2
N
Screw M6 x 15 4
O
Screw M6 x 35 12
P
Screw M6 x 45 2
R
Screw M6 x 68 8
S
Screw M6 x 82 4
T
Screw M8 x 40 4
U
Dial 2
V1/V2
Nuts M6 - 18/M8 - 4
Z1/Z2
Covers ø6 - 30/ø8 - 4
W1/W2
Washer ø6 - 18/ø8 - 4
X1/X2
Nut Covers M6 - 18/M8 - 4
Y
Spacer 8
AA
Hex Key M6 - 1/M8 - 1
BB
Wrench 1

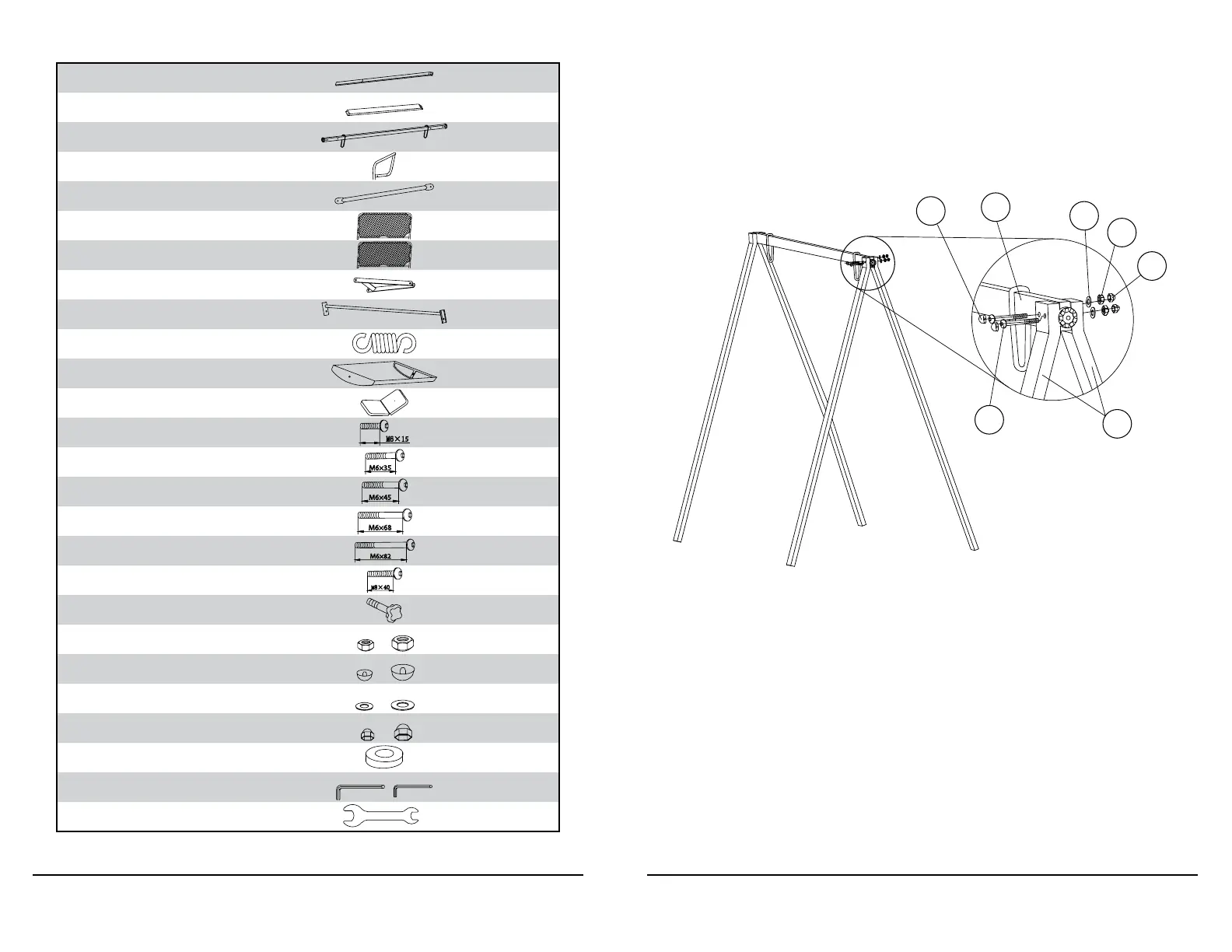

Parts
Do not tighten the screws until all screws are in place.
5
M6×35
5
M6×4
M6×68
M6×82
M6 M8
ø6 ø8
ø6 ø8
M6 M8
M6 M8
Step 1:
Using Screws M6x82 (S) with Washer (W1) and Nut (V1), screw the
Legs (A) onto Swing Support (C).
Assembly Instructions
Z1
C
W1
V1
X1
S
A
