2 Person Deluxe Swing
6 Item #21636
2 Person Deluxe Swing
Item #21636 7
Customer Service 1-800-599-8898 Customer Service 1-800-599-8898

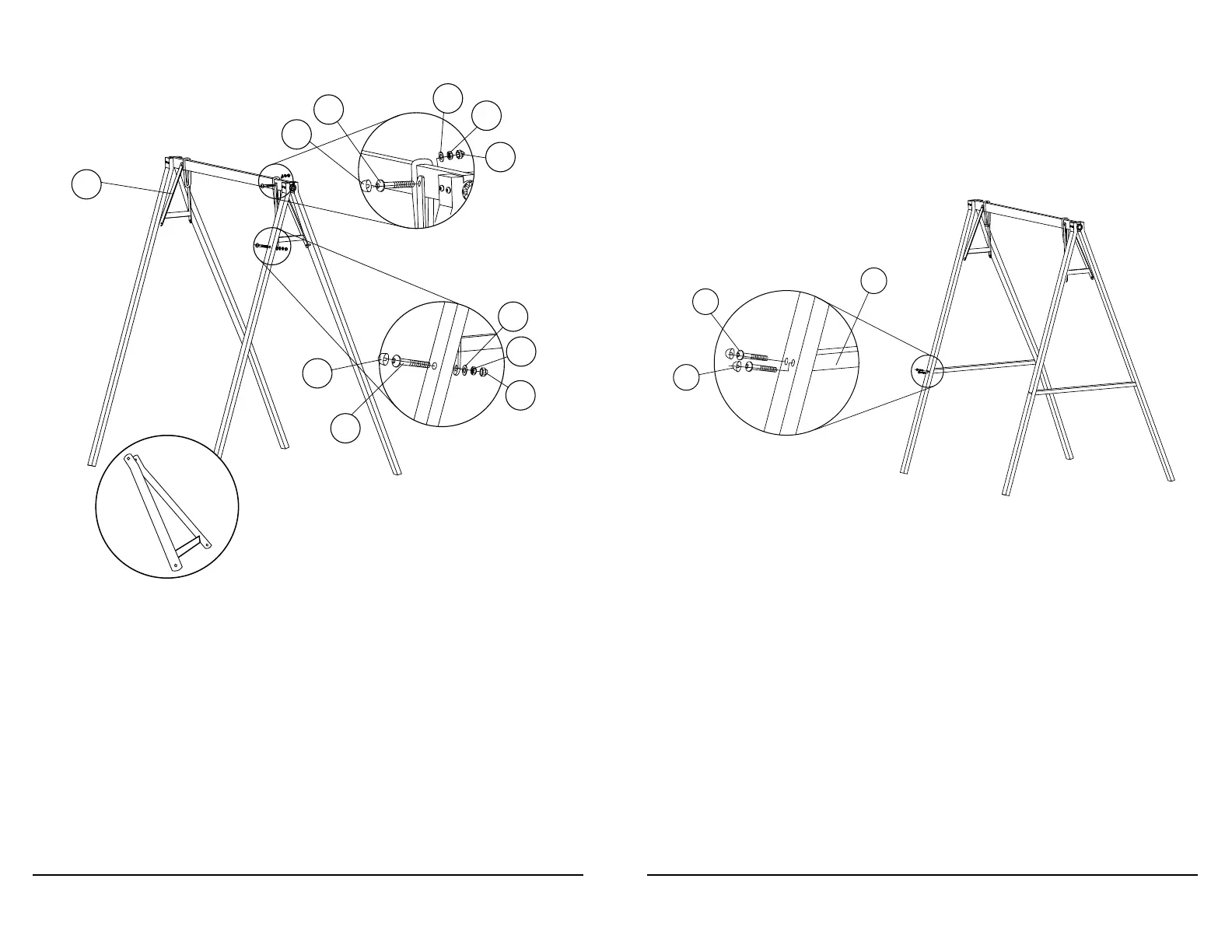

Step 2:
See Fig. 1 for correct orientation of Connector (H) before screwing to
the frame.
Using Screw M6x45 (P), Washer (W1) and Nut (V1) screw the top of
Connector (H) to the Swing Support (C).
Using Screw M6x35 (O), Washer (W1) and Nut (V1), screw the
Connector (H) to Legs (A).
Repeat for the Connector (H) on the other side of the Swing.
Z1
P
W1
V1
X1
W1
V1
X1
O
Z1
H
Fig. 1
Place Leg Support (B) between a set of Legs (A). Screw the Leg (A) into
Leg Support (B), using Screw M6x35 (O). Repeat for the other set of
Legs (A).
Step 3:
Assembly Instructions
Z1
B
O
Assembly Instructions
