From Tech Development
6800 Poe Ave. Dayton OH 45414
Tel: (937) 898-9600 Fax: (937) 898-8431
Website: tdi-turbotwin.com
Publication T1-321
Dated: November 15, 2013

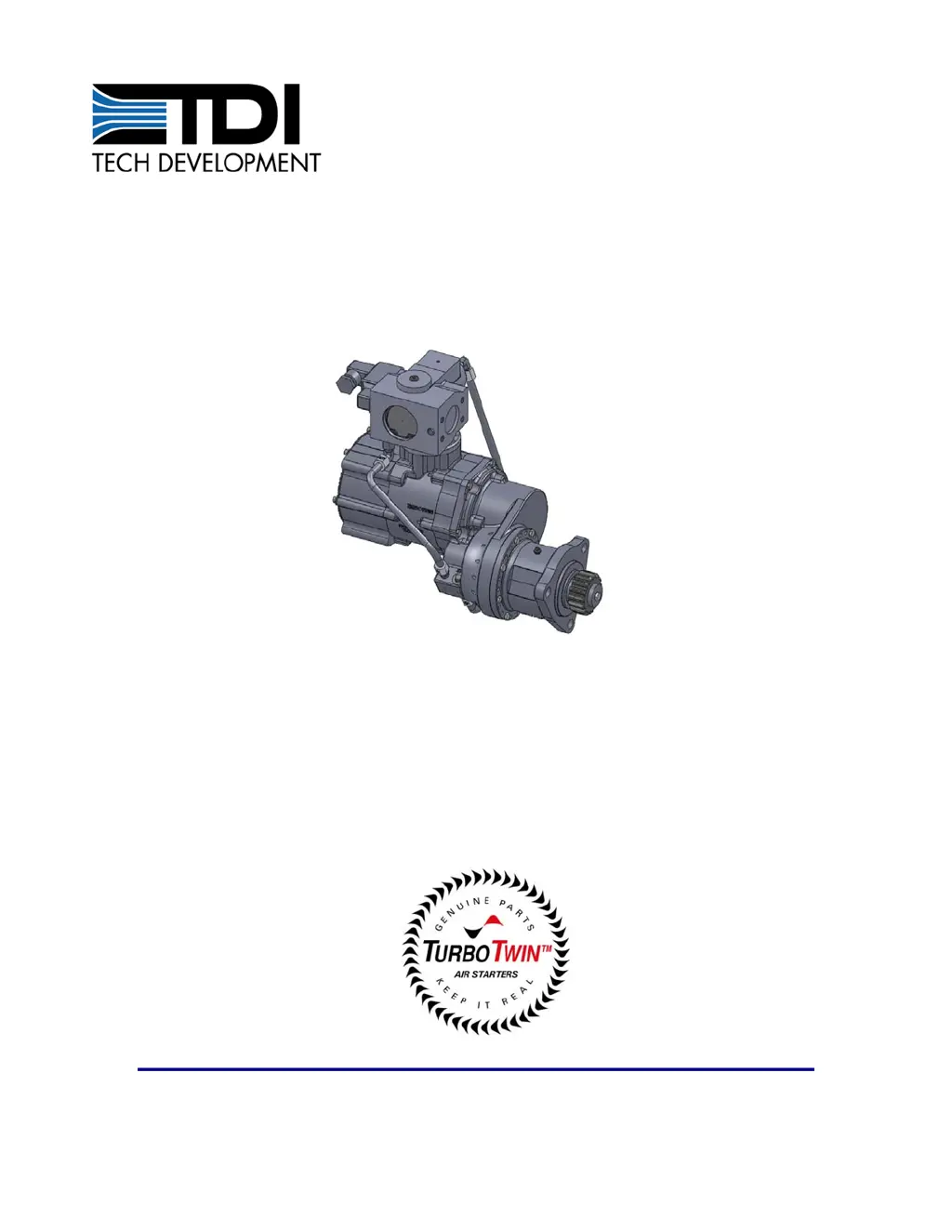

INSTALLATION AND OPERATING
MANUAL
MODEL: T100-V
T
URBOTWIN Engine Air Starters
P/N: T112-60082-001

Table of Contents

Questions and Answers

  • A
    Alexander AllenAug 1, 2025
    What to do if the pinion does not engage on my TDI TurboTwin T100-V Controller?
    • J
      John WeeksAug 1, 2025
      If the pinion doesn't engage, several factors could be at play. First, ensure that the air pressure is within the range of 40 to 150 psig. Next, verify that the control lines to the starter ports are correctly connected according to the installation diagram. Check the solenoid valve for proper operation and potential blockages; correct the wiring, remove any obstructions, or replace the solenoid valve if necessary. Finally, inspect the pinion teeth for damage and replace the pinion or starter drive if needed.
  • R
    Roberto LopezAug 5, 2025
    Why does the air tank pressure decay after shutdown of my TDI Controller?
    • R
      Robert ThompsonAug 5, 2025
      If the air tank pressure decays after an extended shutdown, it could be due to several reasons. Start by tightening any loose air connections and repair or replace any damaged fittings. Also, check the air lines for damage such as crushing, fraying, or kinking, and replace them if necessary.
  • G
    george39Aug 10, 2025
    What to do if the starter runs but the engine cranks slowly on my TDI Controller?
    • R
      rkelleyAug 10, 2025
      If the starter runs but the engine cranks slowly or not at all, first ensure that the air pressure is adequate and within the range of 40 to 150 psig. Also, check for excessive back pressure and inspect the exhaust. Finally, inspect the nozzle for blockages or damage; remove any obstructions or replace damaged parts.
  • R
    Rebecca MedinaAug 14, 2025
    Why does air always flow through the exhaust of my TDI TurboTwin T100-V?
    • K
      Kristina PatelAug 14, 2025
      If air continuously flows through the exhaust, it could be due to a few reasons. First, check the relay valve installation against a typical installation diagram and correct any discrepancies. Then, inspect the relay valve for a damaged sealing ring, and replace the relay valve or any damaged parts if necessary. Finally, check the solenoid for proper sealing; the potential at the lead to ground should be 0. If it's not, address any ignition switch problems.
  • R
    Ricardo DavisAug 18, 2025
    How to fix a TDI TurboTwin T100-V Controller when the starter doesn't run but there is normal airflow from the exhaust?
    • M
      Michael BarnesAug 18, 2025
      If the starter doesn't run despite normal airflow from the exhaust, it may be due to excessive bends in the supply line. Try to shorten the length or straighten the supply air line.
  • A
    Anthony NguyenAug 23, 2025
    What to do if the TDI TurboTwin T100-V Controller starter does not run, with only small airflow from the turbine exhaust?
    • C
      Christopher RobertsonAug 23, 2025
      If the starter does not run and there is only a small airflow from the turbine exhaust or drive housing, it indicates a nozzle blockage. Remove any blockage or obstruction from the nozzles.
  • R
    rachaelortizAug 27, 2025
    Why does my TDI TurboTwin T100-V Controller starter engage but not run?
    • B
      Brenda ByrdAug 27, 2025
      If the starter engages but doesn't run, it could be due to a faulty relay valve. Replace the relay valve.

Summary

General Information

Starter Description

Details the T100-V's three basic subassemblies: turbine motor, offset/spur gearbox, and pre-engage drive.

Product Identification

Explains identification from the starter nameplate: model, serial, part number, and rotation direction.

Physical and Performance Details

Physical Characteristics

Provides physical specifications including weight, length, and housing diameter of the T100-V starter.

Performance Curves

Describes performance curves for torque/horsepower vs. pinion speed and air consumption rates.

Starter Orientation

Installation Procedures

Installing the Starter

Confirms part number, addresses lubrication replacement, and fuel lubricator disconnection.

Supply Line Installation

Details air supply line requirements: regulators, relay valves, hose/pipe sizing, and strainers.

Inlet Pressure Port Usage

Explains the function and use of the 1/4" NPT port for checking supply pressure during operation.

Exhaust Piping Guidelines

Discusses routing exhaust piping to prevent condensation and maintain starter performance.

Starter Component Installation

Soft Start Valve and Filter Fitting

Details installation and function of soft start valve and filter fitting for pinion gear protection.

Piping System Requirements

Starter Operation and Control

Starter Operation

Provides instructions for checking connections, operating pressure, and safe starter usage.

Basic Starter Operation

Explains air admission, pinion engagement, turbine rotation, and starter stopping sequence.

Automated Start Panel Setup

Details setting drive pressure and speed control parameters for automated start panels.

Starter Removal and Warranty

Starter Removal Procedure

Advises on bleeding air pressure and securing the system before removing the starter.

Product Warranty Information

Outlines warranty terms, coverage period, and conditions for TDI TURBOTWIN air starters.

Troubleshooting Guide

Operators Troubleshooting Guide

Lists common troubles, probable causes, and solutions for starter operation issues.

TDI TurboTwin T100-V Specifications

General IconGeneral
BrandTDI
ModelTurboTwin T100-V
CategoryController
LanguageEnglish
