2. TV PLACEMENT SETUP
Thread hole size M4 x 10 depth (TV Mounting Screw Size) on the TV.
Wall Mounting
1. Ensure that the selected wall is made of appropriate material and can support the
weight of the TV. Make sure there are no pipes or cables inside the wall on your
chosen position.
2. Obtain a suitable wall mounting bracket and mounting eyebolts (thread size M4x10)
and screws from your local hardware store.
3. Place the unit face down on a soft surface.
4. Remove the attached leg at the bottom of the TV by removing the 5 screws on the
leg cover.
5. Refit the cover securely by replacing the 5 screws into their original positions.

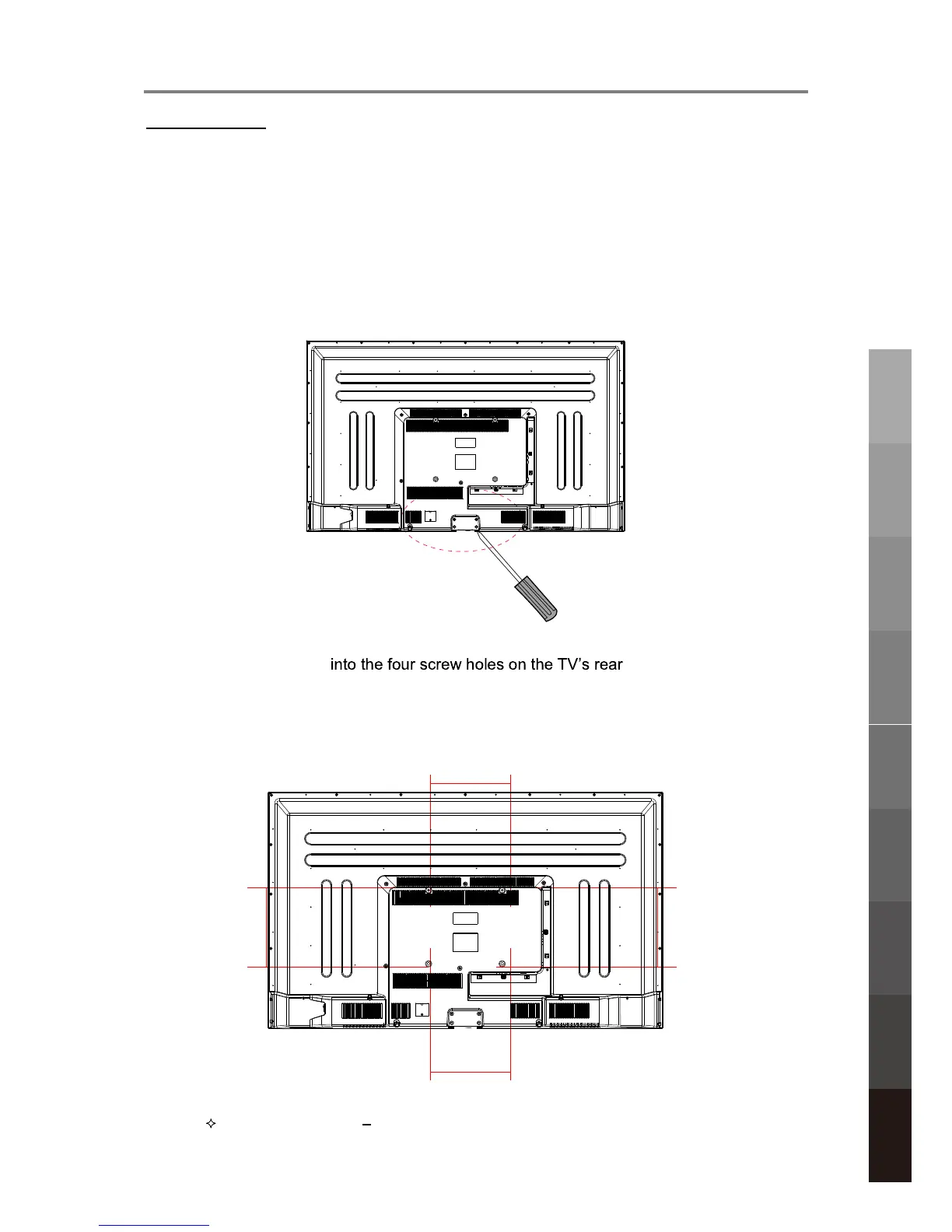

6. Fasten 4 eyebolts panel according to the
diagram.
7. Fasten the wall mounting bracket using screws onto the wall.
8. Connect the eyebolts and the wall bracket securely with strong rope
9. Carefully check that all fastenings are secure before releasing the TV.
