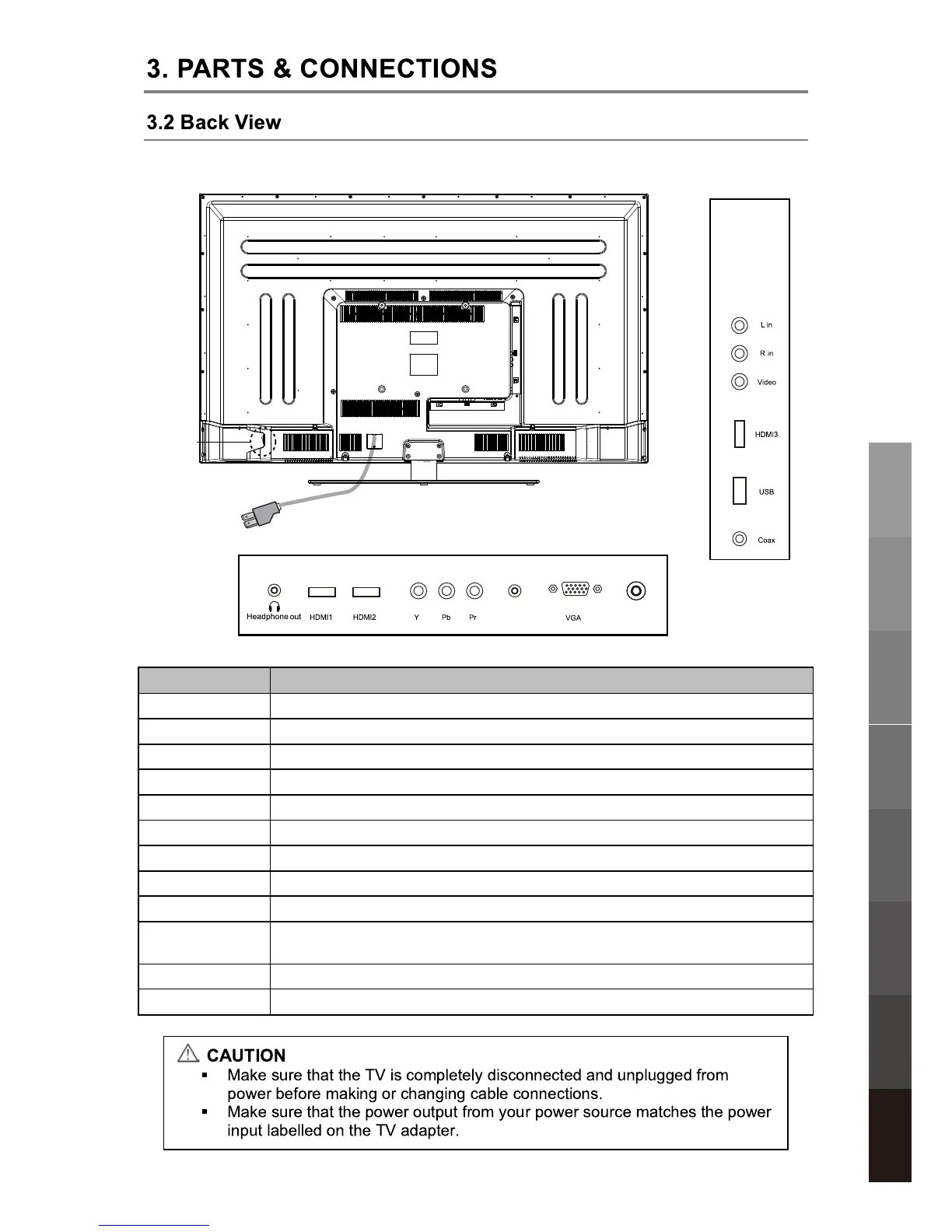

Part Name Function
Power Switch Turn on/off the power supply.
AC Power In Connect to the AC power supply
Headphone Connect to headphones
HDMI 1/2/3 Connect to the HDMI socket of your DVD or satellite box
YPbPr Connect to the component YPbPr output of external devices
PC IN PC audio input
VGA Connect to the PC VGA output to display PC graphics
RF Connect to antenna or cable source
COAX Digital output to AV receiver
USB
Connect to a USB storage device for DVR (Recording) and USB
Multimedia Playback
Video Connect to the co
mposite video output of external devic
es
Audio L/R In Audio signal input for AV (shared with YPbPr)
