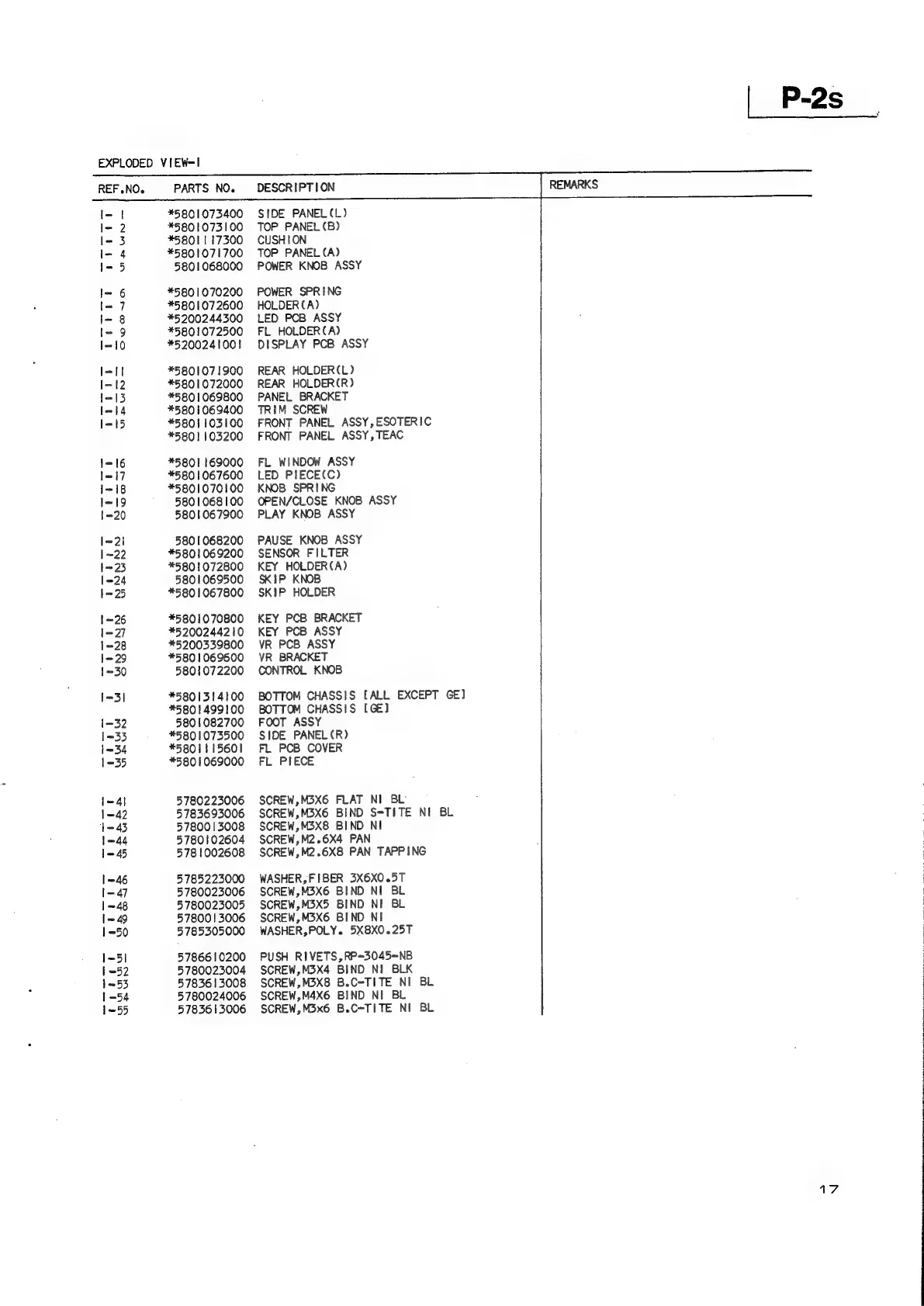

Teac ESOTERIC P-2S - Page 17

EXPLODED VIEW=|
REF.NO.
PARTS NO.
*5801073400
*5801073100
*58011 17300
*5801071700
5801068000
*580 1070200
*580 1072600
*5200244300
*5801072500
*520024100!
*5801071900
*5801072000
*580 1069800
*580 1069400
*5801103100
*5801 103200
*5801 169000
*580 1067600
*5801070100
580 1068 100
5801067900
5801068200
*5801069200
*580 1072800
5801069500
*580 1067800
*5801070800
*5200244210
*5200339800
*580 1069600
5801072200
*5801314100
*5801499100
580 1082700
*5801073500
*5801115601
*580 1069000
5780223006
5783693006
57800 | 3008
5780102604
578 1002608
5785223000
5780023006
5780023005
5780013006
5785305000
57866 10200
5780023004
5783613008
5780024006
57836 13006
DESCRIPTION
SIDE PANEL (L)
TOP PANEL (B)
CUSHION
TOP PANEL (A)
POWER KNOB ASSY
POWER SPRING
HOLDER (A)
LED PCB ASSY
FL HOLDER (A)
DISPLAY PCB ASSY
REAR HOLDER(L)
REAR HOLDER(R)
PANEL BRACKET
TRIM SCREW
FRONT PANEL ASSY,ESOTERIC
FRONT PANEL ASSY, TEAC
FL WINDOW ASSY
LED PIECE(C)
KNOB SPRING
OPEN/CLOSE KNOB ASSY
PLAY KNOB ASSY
PAUSE KNOB ASSY
SENSOR FILTER
KEY HOLDER(A)
SKIP KNOB
SKIP HOLDER
KEY PCB BRACKET
KEY PCB ASSY
VR PCB ASSY
VR BRACKET
CONTROL KNOB
BOTTOM CHASSIS [ALL EXCEPT GE]
BOTTOM CHASSIS [GE]
FOOT ASSY
SIDE PANEL (R)
FL PCB COVER
FL PIECE
SCREW,M3X6 FLAT NI BL
SCREW,M3X6 BIND S=TITE Nf BL
SCREW,M3X8 BIND NI
SCREW,M2.6X4 PAN
SCREW,M2.6X8 PAN TAPPING
WASHER, FIBER 3X6X0.5T
SCREW,M3X6 BIND NI BL
SCREW,M3X5 BIND NI BL
SCREW,M3X6 BIND NI
WASHER,POLY. 5X8X0.25T
PUSH RIVETS,RP=3045-NB
SCREW,M3X4 BIND NI BLK
SCREW,M3X8 8.C-TITE NI BL
SCREW,M4X6 BIND NI BL
SCREW,M3x6 B.C-TITE N! BL
| P-2s
17
