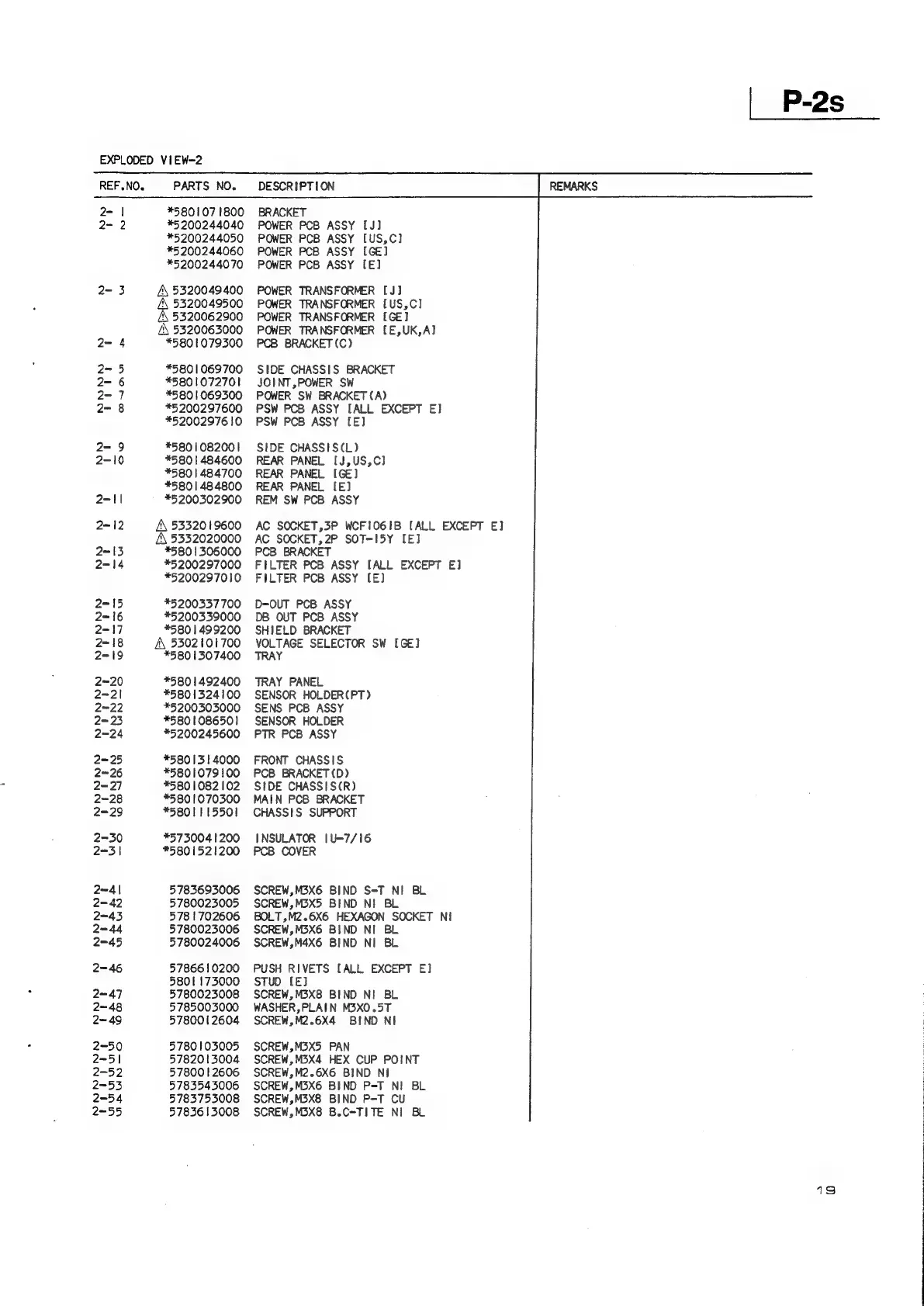

EXPLODED VIEW=2
REFNO.
2-
2—
2=-
2-
Own
2- 9
2-10
2-1
2=12
2-13
2-14
2-15
2-16
2-17
2-18
2-19
2~20
2-2!
2-22
2-23
2-24
2-25
2~26
2-27
2~28
2-29
2-30
2=3)
2-4!
2-42
2-43
2-44
2-45
2-46
2-47
2-48
2-49
2+50
2-5)
2-52
2-53
2-54
2-55
PARTS NO.
*580107 1800
*5 200244040
*5200244050
*5200244060
*5200244070
A\ 5320049400
A 5320049500
A\ 5320062900
Z\ 5320063000
*580 1079300
*5801069700
*5801072701
*580 1069300
*5200297600
*52002976 10
*580 1082001
*5801 484600
*580 | 48.4700
*5801 484800
*5200302900
A\ 5332019600
A\ 5332020000
*580 1306000
*5200297000
*5200297010
*5 200337700
*5200339000
*5801 499200
A\ 5302101700
*5801307400
*580 1492400
*580 1324100
*5200303000
*580 1086501
*5200245600
*58013 14000
*5801079100
*580 1082102
*5801070300
*5801115501
*573004 1200
*5801521200
5783693006
57800235005
578 | 702606
5780023006
5780024006
57866 10200
5801 173000
5780023008
5785003000
5780012604
5780103005
5782013004
57800 | 2606
5783543006
5783753008
57836 13008
DESCRIPTION
BRACKET
POWER PCB ASSY [J]
POWER PCB ASSY [US,C]
POWER PCB ASSY [GE]
POWER PCB ASSY [E]
POWER TRANSFORMER [J]
POWER TRANSFORMER [US,C]
POWER TRANSFORMER [GE]
POWER TRANSFORMER [E,UK,A]
PCB BRACKET(C)
SIOE CHASSIS BRACKET
JOINT,POWER SW
POWER SW BRACKET (A)
PSW PCB ASSY [ALL EXCEPT E]
PSW PCB ASSY [E]
SIDE CHASSIS(L)
REAR PANEL [J,US,C]
REAR PANEL [GE]
REAR PANEL [E]
REM SW PCB ASSY
AC SOCKET,3P WCFIO6!IB [ALL EXCEPT E]
AC SOCKET,2P SOT-I5Y [E]
PCB BRACKET
FILTER PCB ASSY [ALL EXCEPT £]
FILTER PCB ASSY [E]
D-OUT PCB ASSY
DB OUT PCB ASSY
SHIELD BRACKET
VOLTAGE SELECTOR SW [GE]
TRAY
TRAY PANEL
SENSOR HOLDER(PT)
SENS PCB ASSY
SENSOR HOLDER
PTR PCB ASSY
FRONT CHASSIS
PCB BRACKET (D)
SIDE CHASSIS(R)
MAIN PCB BRACKET
CHASSIS SUPPORT
INSULATOR 1U-7/16
PCB COVER
SCREW,M3X6 BIND S-T NI BL
SCREW,M35X5 BIND NI BL
BOLT ,M2.6X6 HEXAGON SOCKET Ni
SCREW,M35X6 BIND NI BL
SCREW,M4X6 BIND NI BL
PUSH RIVETS [ALL EXCEPT E]
STUD [E}
SCREW,M3X8 BIND NI BL
WASHER,PLAIN M3X0.5T
SCREW,M2.6X4 BIND NI
SCREW,M3X5 PAN
SCREW ,M3X4 HEX CUP POINT
SCREW,M2.6X6 BIND NI
SCREW,M3X6 BIND P=-T NI BL
SCREW,M3X8 BIND P-T CU
SCREW,M3X8 8.C-TITE NI BL
