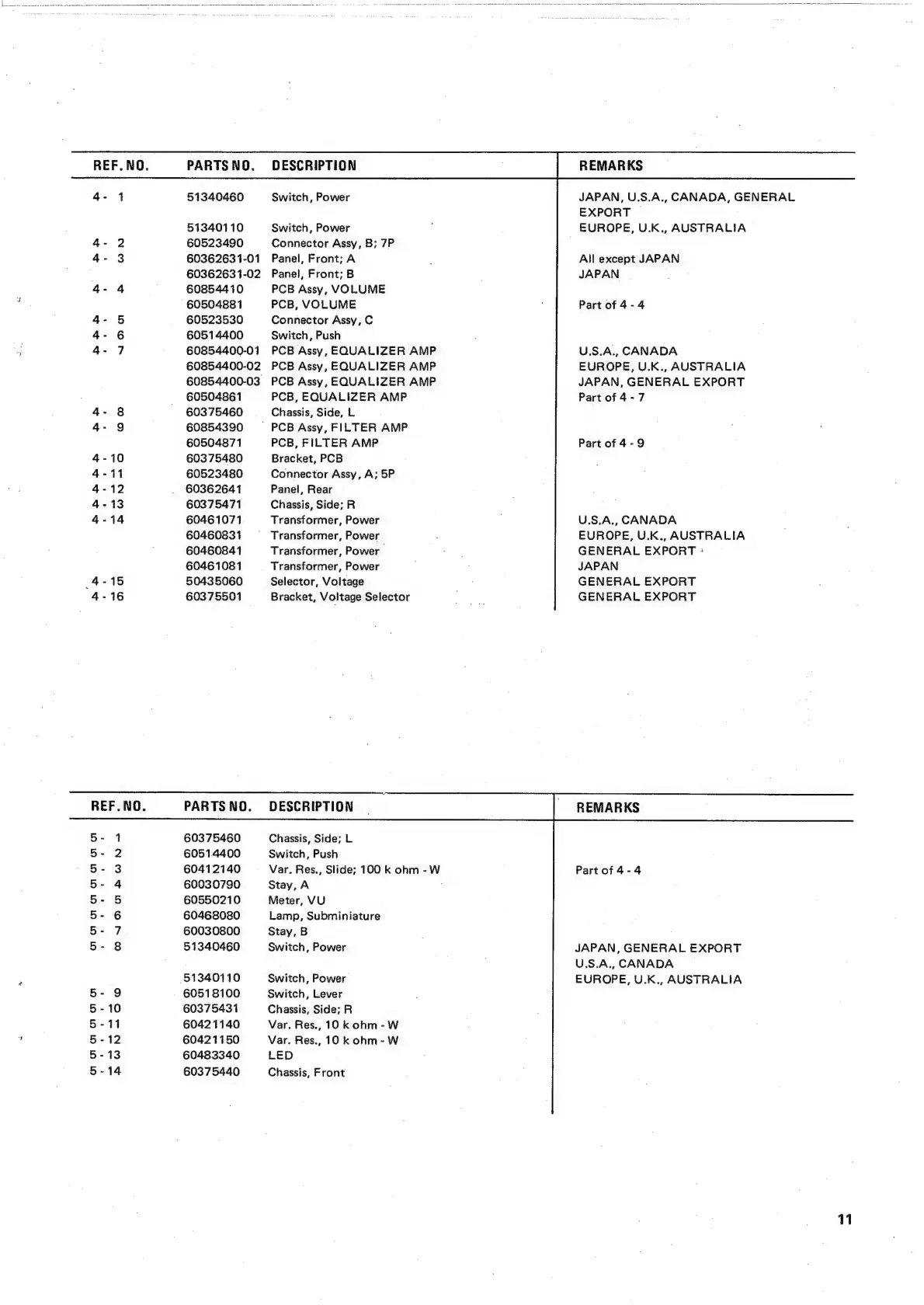

Teac GE-20 - Page 11

REF.NO. PARTSNO. DESCRIPTION
4- 1 51340460 Switch, Power
51340110 Switch, Power
4- 2 60523490 Connector Assy, B; 7P
4- 3 60362631-01 Panel, Front; A
: 60362631-02 Panel, Front; B
4-4 60854410 PCB Assy, VOLUME
60504881 PCB, VOLUME
4- 5 60523530 Connector Assy, C
4- 6 60514400 Switch, Push
4- 7 60854400-01 PCB Assy, EQUALIZER AMP
60854400-02 PCB Assy, EQUALIZER AMP
60854400-03 PCB Assy, EQUALIZER AMP
60504861 PCB, EQUALIZER AMP.
4- 8 60375460 — Chassis, Side, L
4- 9 60854390 PCB Assy, FILTER AMP
60504871 PCB, FILTER AMP
4-10 60375480 Bracket, PCB
4-11 60523480 Connector Assy, A; 5P
4-12 _ 60362641 Panel, Rear —
4-13 60375471 Chassis, Side; R
4-14 60461071. Transformer, Power
60460831 Transformer, Power
60460841 Transformer, Power
60461081 _ Transformer, Power
50435060 Selector, Voitage
- 60375501 Bracket, Voltage Selector
REF.NO. PARTSNO. DESCRIPTION
5- 1 60375460 Chassis, Side; L
5- 2 60514400 Switch, Push
5- 3 60412140 Var. Res., Slide; 100 k ohm - W
5- 4 60030790 ~—_ Stay, A |
5- 5 60550210 Meter, VU
5- 6 60468080 Lamp, Subminiature
5- 7. 60030800 Stay, B
5- 8 51340460 Switch, Power
| 51340110 Switch, Power
5- 9 - 60518100 Switch, Lever
5-10 60375431 Chassis, Side; R
5-11 60421140 Var. Res., 10 k ohm -W
5-12 60421150 Var. Res., 10 k ohm -W
5-13 60483340 LED
5-14 60375440 Chassis, Front
REMARKS
JAPAN, U.S.A., CANADA, GENERAL
EXPORT © |
_ EUROPE, U.K., AUSTRALIA |
All except JAPAN
JAPAN | |
Part of 4-4
U.S.A., CANADA
EUROPE, U.K., AUSTRALIA
JAPAN, GENERAL EXPORT
Part of 4-7
Part of 4-9
U.S.A., CANADA
EUROPE, U.K., AUSTRALIA
GENERAL EXPORT :
JAPAN
GENERAL EXPORT
GENERAL EXPORT
REMARKS
Part of 4-4
JAPAN, GENERAL EXPORT
U.S.A., CANADA
EUROPE, U.K., AUSTRALIA
11
