Teac LP-R550USB User Manual

10
LR
LINE OUT
LR
LINE IN

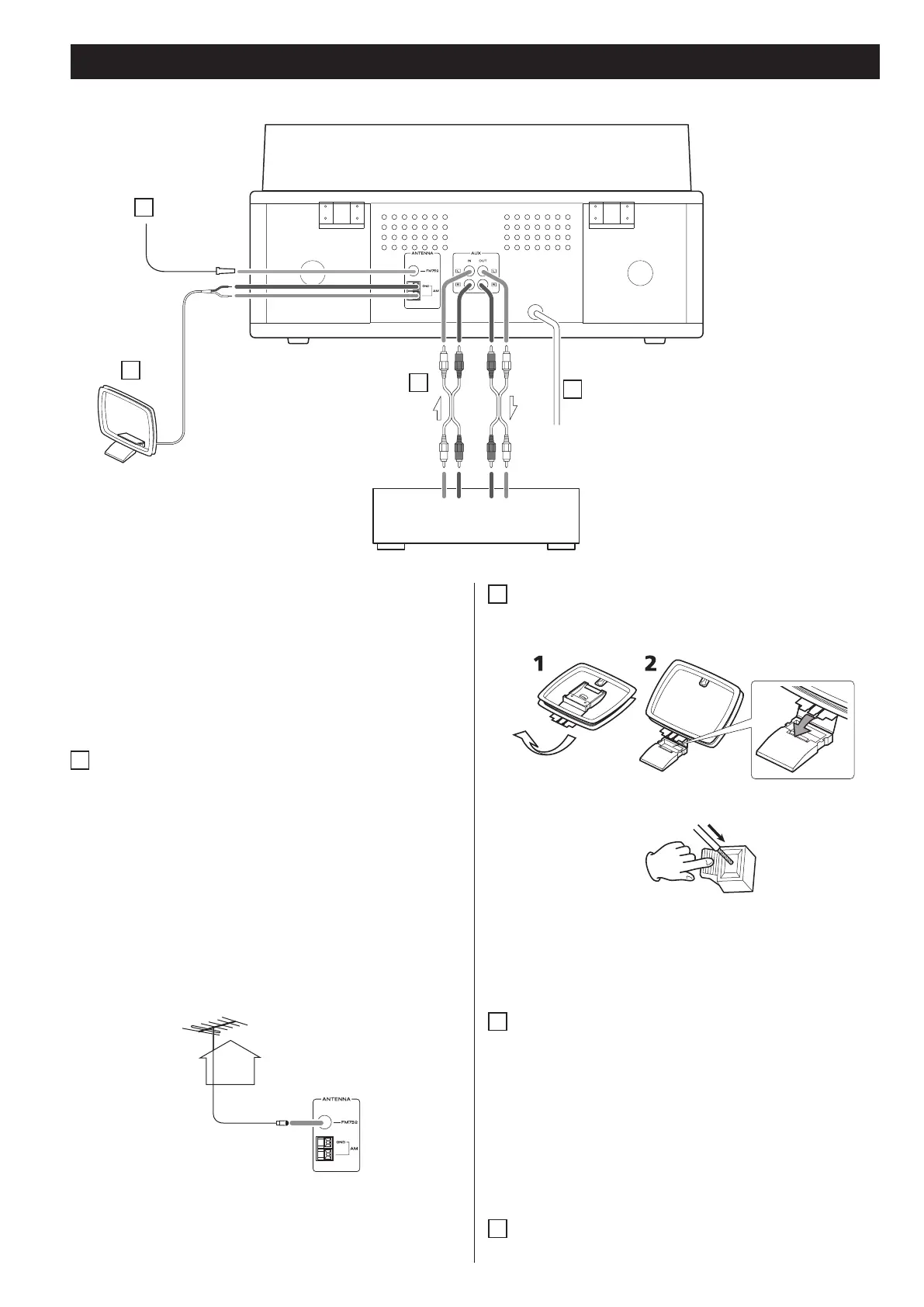

Connection
C
A
B
D
CAUTION:
< Switch off the power to all equipment before making
connections.
< Read the instructions of each component you intend to use
with this unit.
< Be sure to insert each plug securely. To prevent hum and noise,
avoid bundling the signal interconnection cables together with
the AC power cord.
A
FM antenna
While in FM mode, tune in an FM station and extend the lead to
find the best position for the reception. This antenna may need
to be repositioned if you move your unit to a new location.
FM Outdoor Antenna
In an area where FM signals are weak, it will be necessary to use
an outdoor FM antenna.
Generally, a 3-element antenna will be sufficient; if you live in
an area where the FM signals are particularly weak, it may be
necessary to use one with 5 or more elements.
< Disconnect the FM indoor antenna when using an outdoor
antenna.
While recording from FM broadcast, noise may increase. To
reduce unwanted noise, outdoor antenna will be required or
record it with the FM mode switched to MONO.
B
AM loop antenna
To stand the loop antenna on a surface, insert the tab into the
slot in the antenna base.
Connect the loop antenna’s wires to the AM antenna terminals.
< Make sure to connect the black wire to the GND terminal.
Place the antenna on a shelf or hang it on a window frame, etc.,
in the direction which gives the best reception. Keep all other
wires such as power cords, speaker wires or interconnect wires
as far away as possible from the antenna.
C
AUX IN/OUT jacks
Analog 2-channel audio signal is received at or sent through
these jacks. To play or record sound from an external source
such as CD player or cassette tape deck, connect the source to
the appropriate jack using the attached RCA cable. (If you want
to connect your external source to both the AUX IN and OUT
jacks at once, buy a stereo RCA pin cable. )
Make sure to connect:
white plug q white jack (L: left channel)
red plug q red jack (R: right channel)
D
AC Power Cord
Plug the AC power cord into an AC wall socket.
Red
Red
White
White
White
White
Cassette Tape Deck, etc.
75 Ω connector

Teac LP-R550USB Specifications

Power

output power	3.5W + 3.5W
operation voltage	120V AC
frequency	60Hz

Audio Specifications

speakers	2”-[3]/4 Full Range Cone x 2
audio input	1 (RCA)
audio output	1 (RCA)

Ports & Interfaces

usb port	1
headphone output	1 (Stereo Mini)
dimensions	18-[1]/2" x 9-[1]/16" x 15-[3]/8"

Weight and Dimensions

weight	11.0 kg, 24.3 lbs
width	470 mm
height	230 mm
depth	390 mm
