Overview
1-2
Overview
The LX series instrumentation data recorders can record and reproduce signals of a maximum 48 kHz
sampling frequency via 8 channels onto MO (Magneto Optical Disk) or PC card media. Recorded data on
the media is stored as PC files. The maximum input channels are 32 channels by using the selectable
types of the 8 channels input cards and the optional channel expansion unit.
You can choose the recording media among the followings: Recording to the internal memory, 3.5 inch
MO, PC card, and a PC.
The file format is TEAC's proprietary TAFFmat format. TAFFmat files can be loaded into commercially
available analysis software.
From a PC you can use the supplied LX Navi software to set recording conditions such as the input range
or sampling frequency. The interface with a PC is hot-pluggable and compatible with IEEE 1394, so after
setup you can disconnect the LX while the power is still on, and start or stop recording by using control
buttons on the main unit. You can also use LX Navi to record or reproduce while connected to a PC.
You can chose the 100BASE-TX Ethernet interface as alternative.
An optional color LCD remote control unit is available to set recording conditions, to record and reproduce,
and to monitor by using bar meters.
LX-10 or LX-20
Remote Control Unit

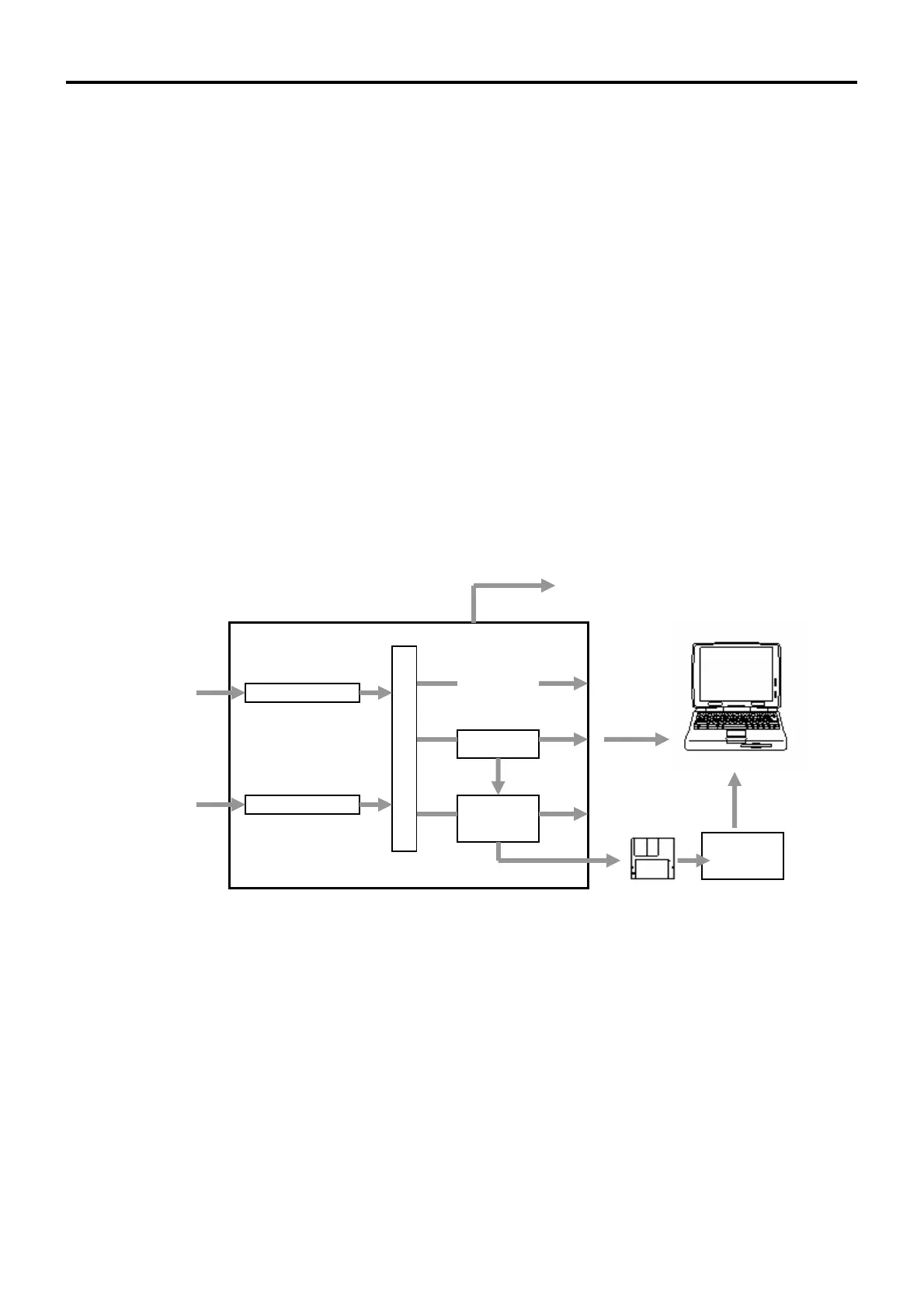

In
ut Am
Out
ut Am
Record
Reproduce
Direct
Memory
MO or
PC Card
External
Drive
IEEE1394
or Ethernet
Test0001.dat
