Teac LX Series User Manual

Connections
2-2
23
41
ＲＸ
ＬＡＮ
SERIAL NO.
MADE IN JAPAN

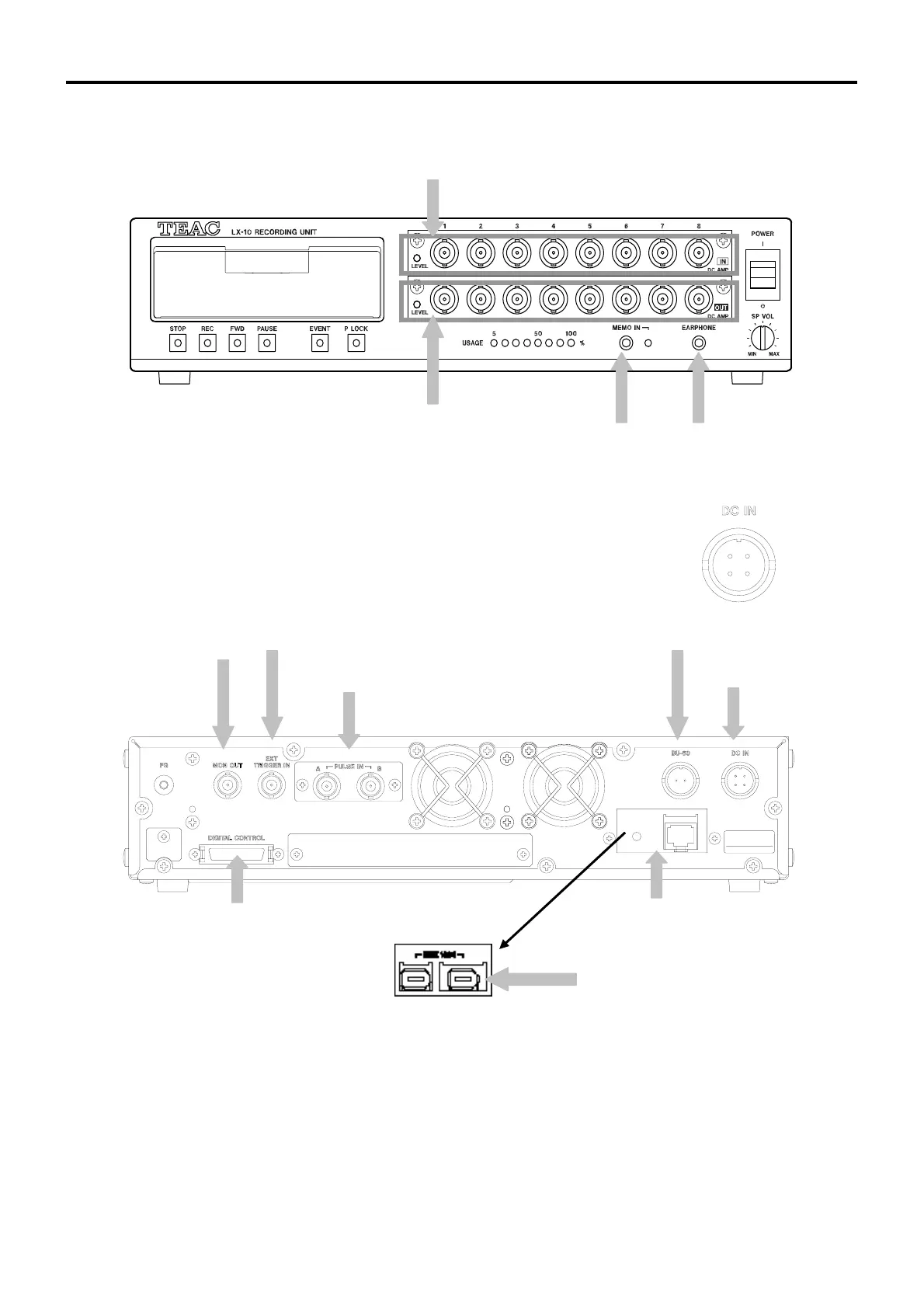

Connections
When the DC power voltage falls to +11V or less, the USAGE LEDs flash and recording and reproduction
stops.
If you are recording to memory, quickly copy the data to a media or to a PC.
Connect to PC 100BASE-TX Ethernet
interface (LX-10L/20L)
Monitor output,
Oscilloscope, etc.
External trigger input, Contact signal
DC power*
(+11 to 30 V)
Or use the specified
AC adaptor.
Optional
Battery unit
BU-80
Connect to PC IEEE 1394 interface
(Either is available.
Use TEAC recommended IEEE 1394
interface card for PC.) (LX-10/20)
T
achometer
p
ulse in
p
uts
(
L
X
-20/20L
)
Remote control unit
Cannot connect with PC at a time.
Input signal
Oscillosco
p
e, etc.
Supplied
Microphone
(when recording
voice memos.)
Supplied earphone
(when using an earphone
to listen to voice memos)
