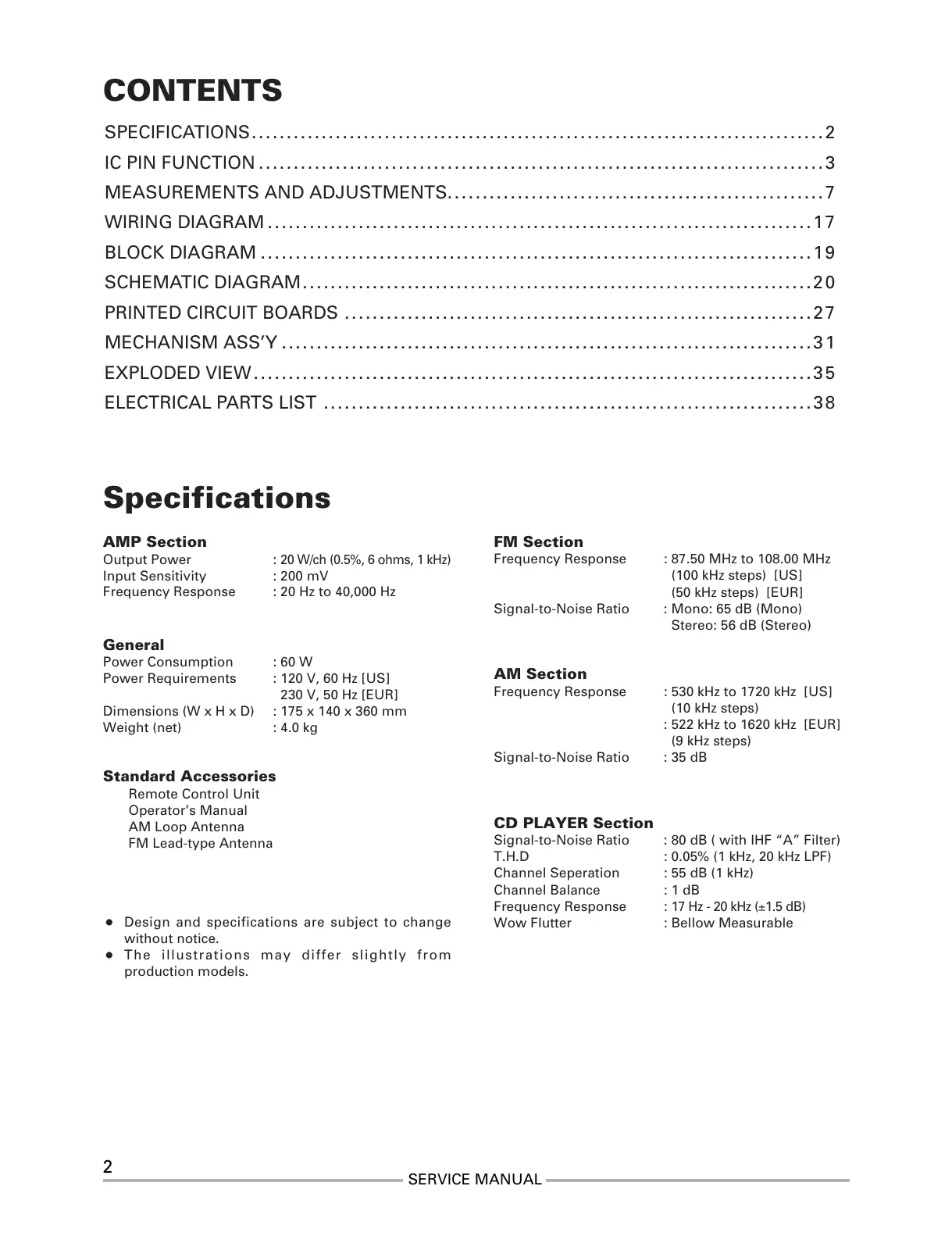

Specifications
AMP Section
Output Power :
20 W/ch (0.5%, 6 ohms, 1 kHz)
Input Sensitivity : 200 mV
Frequency Response : 20 Hz to 40,000 Hz
General
Power Consumption : 60 W
Power Requirements : 120 V, 60 Hz [US]
230 V, 50 Hz [EUR]
Dimensions (W x H x D) : 175 x 140 x 360 mm
Weight (net) : 4.0 kg
Standard Accessories
Remote Control Unit
Operator’s Manual
AM Loop Antenna
FM Lead-type Antenna
Design and specifications are subject to change
without notice.
The illustrations may differ slightly from
production models.
FM Section
Frequency Response : 87.50 MHz to 108.00 MHz
(100 kHz steps) [US]
(50 kHz steps) [EUR]
Signal-to-Noise Ratio : Mono: 65 dB (Mono)
Stereo: 56 dB (Stereo)
AM Section
Frequency Response : 530 kHz to 1720 kHz [US]
(10 kHz steps)
: 522 kHz to 1620 kHz [EUR]
(9 kHz steps)
Signal-to-Noise Ratio : 35 dB
CD PLAYER Section
Signal-to-Noise Ratio : 80 dB ( with IHF “A” Filter)
T.H.D : 0.05% (1 kHz, 20 kHz LPF)
Channel Seperation : 55 dB (1 kHz)
Channel Balance : 1 dB
Frequency Response :
17 Hz - 20 kHz (±1.5 dB)
Wow Flutter : Bellow Measurable
CONTENTS
SPECIFICATIONS..................................................................................2
IC PIN FUNCTION .................................................................................3
MEASUREMENTS AND ADJUSTMENTS......................................................7
WIRING DIAGRAM ..............................................................................17
BLOCK DIAGRAM ...............................................................................19
SCHEMATIC DIAGRAM.........................................................................20
PRINTED CIRCUIT BOARDS ...................................................................27
MECHANISM ASS’Y ............................................................................31
EXPLODED VIEW ................................................................................35
ELECTRICAL PARTS LIST ......................................................................38
