Teac MC-D90 - EXPLODED VIEW-2

SERVICE MANUAL
37

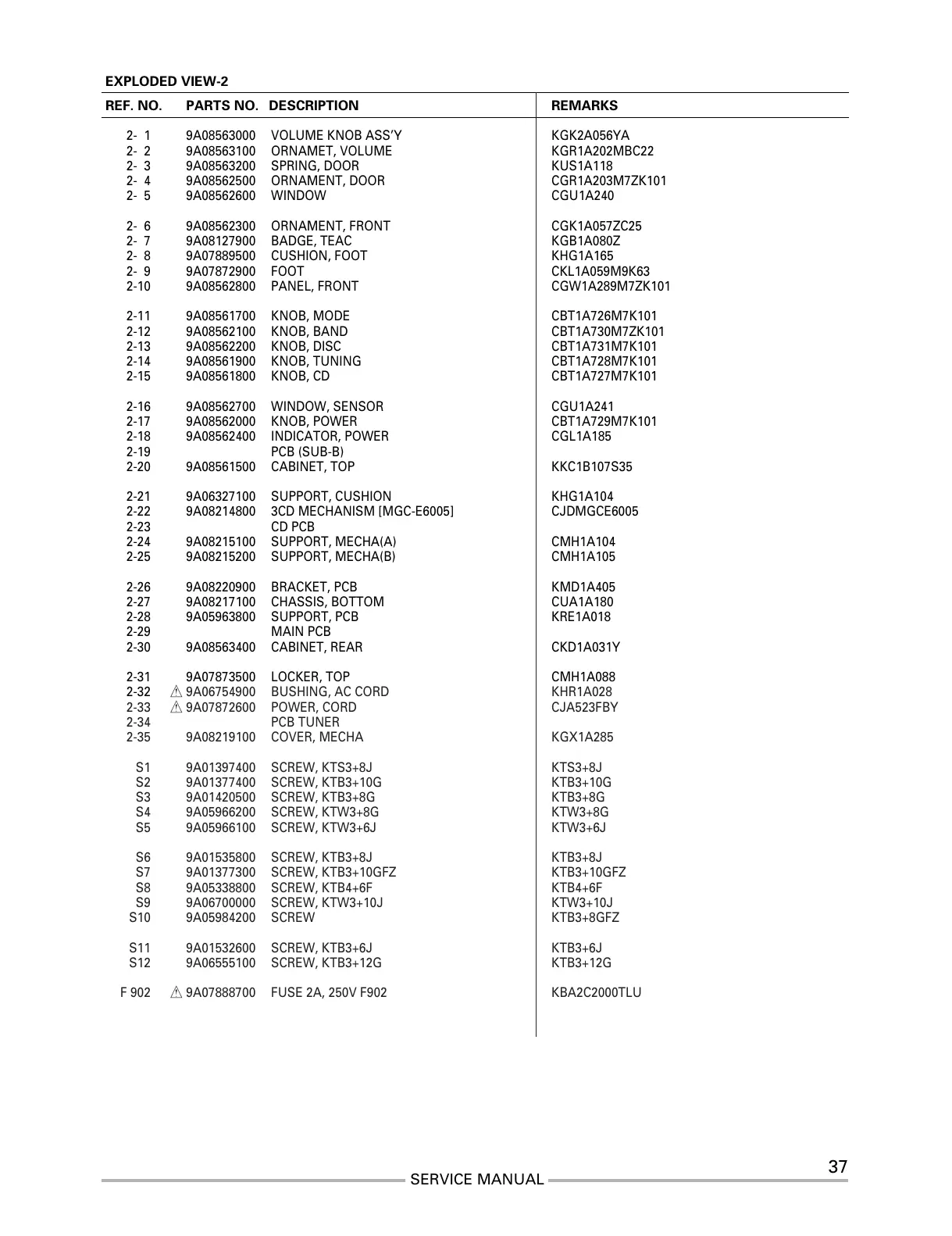

EXPLODED VIEW-2
REF. NO. PARTS NO. DESCRIPTION REMARKS
2- 1 9A08563000 VOLUME KNOB ASS’Y KGK2A056YA
2- 2 9A08563100 ORNAMET, VOLUME KGR1A202MBC22
2- 3 9A08563200 SPRING, DOOR KUS1A118
2- 4 9A08562500 ORNAMENT, DOOR CGR1A203M7ZK101
2- 5 9A08562600 WINDOW CGU1A240
2- 6 9A08562300 ORNAMENT, FRONT CGK1A057ZC25
2- 7 9A08127900 BADGE, TEAC KGB1A080Z
2- 8 9A07889500 CUSHION, FOOT KHG1A165
2- 9 9A07872900 FOOT CKL1A059M9K63
2-10 9A08562800 PANEL, FRONT CGW1A289M7ZK101
2-11 9A08561700 KNOB, MODE CBT1A726M7K101
2-12 9A08562100 KNOB, BAND CBT1A730M7ZK101
2-13 9A08562200 KNOB, DISC CBT1A731M7K101
2-14 9A08561900 KNOB, TUNING CBT1A728M7K101
2-15 9A08561800 KNOB, CD CBT1A727M7K101
2-16 9A08562700 WINDOW, SENSOR CGU1A241
2-17 9A08562000 KNOB, POWER CBT1A729M7K101
2-18 9A08562400 INDICATOR, POWER CGL1A185
2-19 PCB (SUB-B)
2-20 9A08561500 CABINET, TOP KKC1B107S35
2-21 9A06327100 SUPPORT, CUSHION KHG1A104
2-22 9A08214800 3CD MECHANISM [MGC-E6005] CJDMGCE6005
2-23 CD PCB
2-24 9A08215100 SUPPORT, MECHA(A) CMH1A104
2-25 9A08215200 SUPPORT, MECHA(B) CMH1A105
2-26 9A08220900 BRACKET, PCB KMD1A405
2-27 9A08217100 CHASSIS, BOTTOM CUA1A180
2-28 9A05963800 SUPPORT, PCB KRE1A018
2-29 MAIN PCB
2-30 9A08563400 CABINET, REAR CKD1A031Y
2-31 9A07873500 LOCKER, TOP CMH1A088
2-32
£ 9A06754900 BUSHING, AC CORD KHR1A028
2-33
£ 9A07872600 POWER, CORD CJA523FBY
2-34 PCB TUNER
2-35 9A08219100 COVER, MECHA KGX1A285
S1 9A01397400 SCREW, KTS3+8J KTS3+8J
S2 9A01377400 SCREW, KTB3+10G KTB3+10G
S3 9A01420500 SCREW, KTB3+8G KTB3+8G
S4 9A05966200 SCREW, KTW3+8G KTW3+8G
S5 9A05966100 SCREW, KTW3+6J KTW3+6J
S6 9A01535800 SCREW, KTB3+8J KTB3+8J
S7 9A01377300 SCREW, KTB3+10GFZ KTB3+10GFZ
S8 9A05338800 SCREW, KTB4+6F KTB4+6F
S9 9A06700000 SCREW, KTW3+10J KTW3+10J
S10 9A05984200 SCREW KTB3+8GFZ
S11 9A01532600 SCREW, KTB3+6J KTB3+6J
S12 9A06555100 SCREW, KTB3+12G KTB3+12G
F 902
£ 9A07888700 FUSE 2A, 250V F902 KBA2C2000TLU
