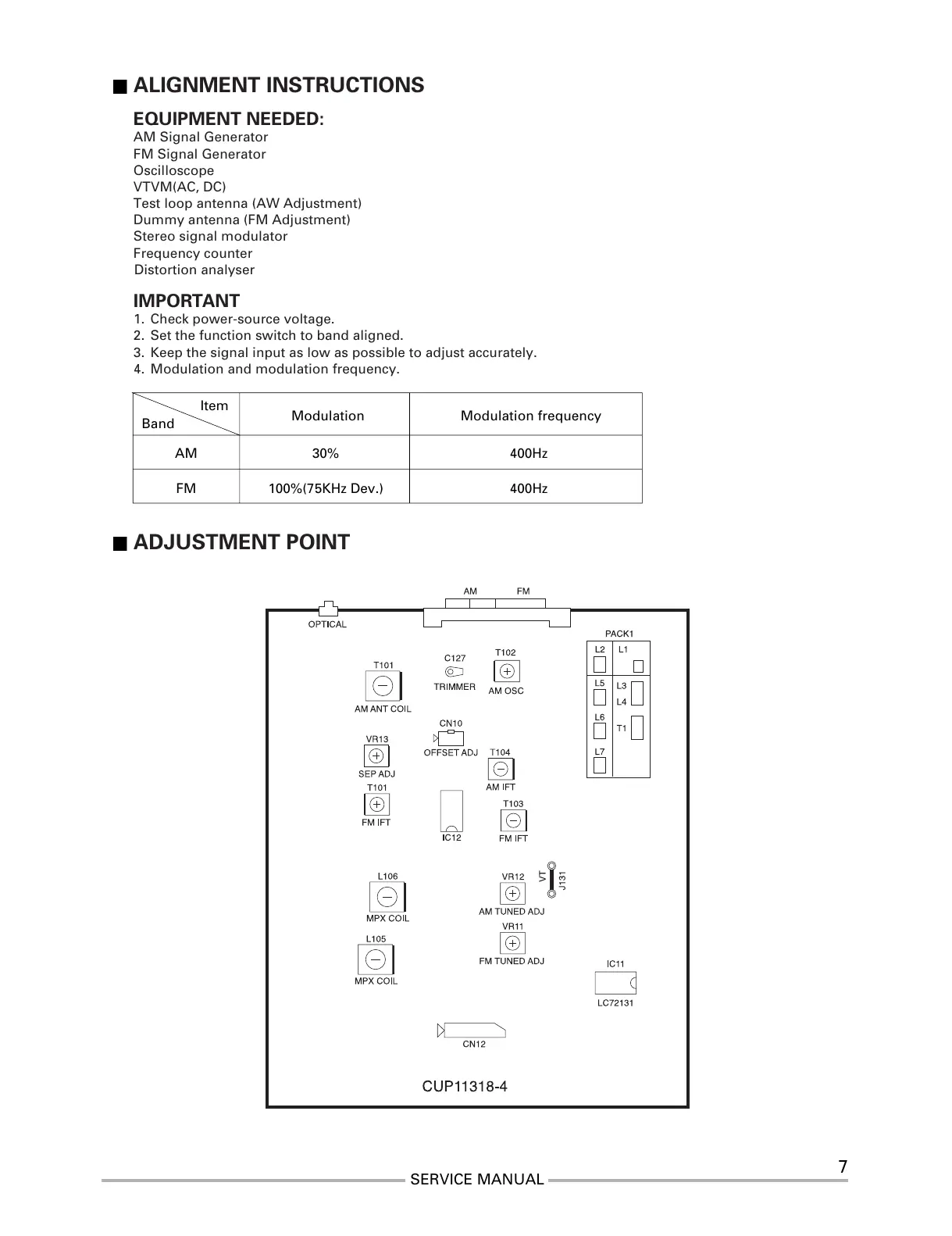

ALIGNMENT INSTRUCTIONS
EQUIPMENT NEEDED:
AM Signal Generator
FM Signal Generator
Oscilloscope
VTVM(AC, DC)
Test loop antenna (AW Adjustment)
Dummy antenna (FM Adjustment)
Stereo signal modulator
Frequency counter
Distortion analyser
IMPORTANT
1. Check power-source voltage.
2. Set the function switch to band aligned.
3. Keep the signal input as low as possible to adjust accurately.
4. Modulation and modulation frequency.
Item
Modulation Modulation frequency
Band
AM 30% 400Hz
FM 100%(75KHz Dev.) 400Hz
ADJUSTMENT POINT
