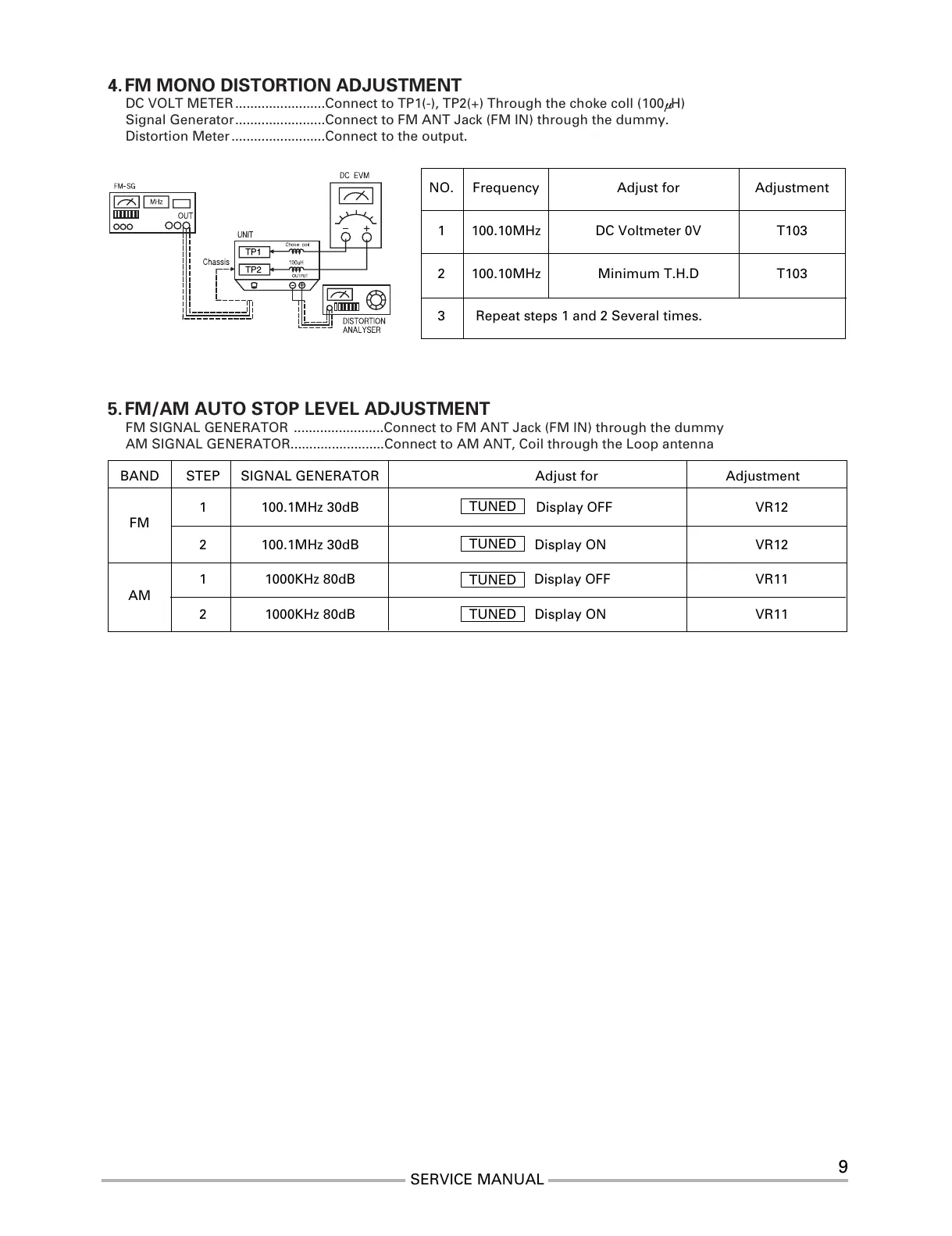

4. FM MONO DISTORTION ADJUSTMENT
DC VOLT METER ........................Connect to TP1(-), TP2(+) Through the choke coll (100 H)
Signal Generator........................Connect to FM ANT Jack (FM IN) through the dummy.
Distortion Meter .........................Connect to the output.
NO. Frequency Adjust for Adjustment
1 100.10MHz DC Voltmeter 0V T103
2 100.10MHz Minimum T.H.D T103
3 Repeat steps 1 and 2 Several times.
5. FM/AM AUTO STOP LEVEL ADJUSTMENT
FM SIGNAL GENERATOR ........................Connect to FM ANT Jack (FM IN) through the dummy
AM SIGNAL GENERATOR.........................Connect to AM ANT, Coil through the Loop antenna
BAND STEP SIGNAL GENERATOR Adjust for Adjustment
1 100.1MHz 30dB Display OFF VR12
2 100.1MHz 30dB Display ON VR12
1 1000KHz 80dB Display OFF VR11
2 1000KHz 80dB Display ON VR11
AM
FM
TUNED
TUNED
TUNED
TUNED
To Next Page
